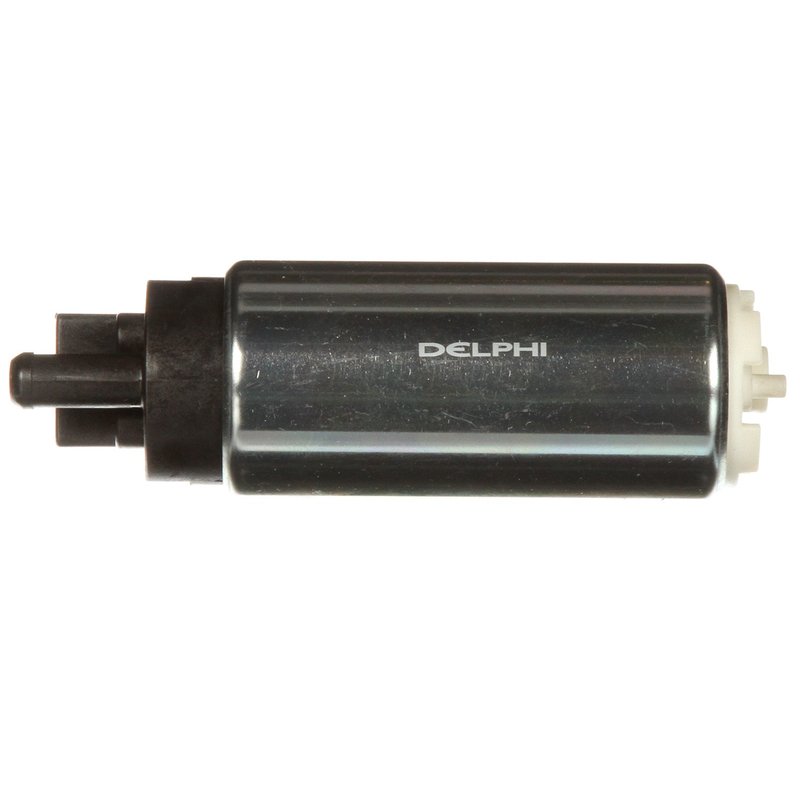

Delphi FE0252 Electric Fuel Pump - In-Tank
| Brand | Delphi FE0252 |
|---|---|
| Position | In-Tank |
| Average Current Draw | 6 |
| Average Flow Rating | 32 |
| Fuel Type | Gas |
| Gasket Or Seal Included | No |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Item Grade | Standard Replacement |
| Maximum Pressure | 94.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Type | Hose |
| Package Contents | Electric Fuel Pump, (2) Hose Clamps, Hose Piece, Insulating Sleeve, Isolator, Pall Nut, (2) Splices, 2-Wire Harness w/Connector, Zip Tie, Instruction Sheet |
| Strainer Included | No |
| System Pressure | 34 psi |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Voltage | 12 |
| Wiring Harness Included | Yes |
| Fits | INFINITI and Nissan · 13 vehicles |
Standard replacement. Direct-fit fuel pump for straightforward service replacement.
OE heritage. Built with 100 years of OE experience and supplier knowledge.
12-volt operation. Works with gasoline fuel systems and uses a blade terminal design.
Cross-references Airtex Fuel Pumps E8190, Airtex Fuel Pumps E8235 and Airtex Fuel Pumps E8392 for the same application. See all 26.
Delphi FE0252 Electric Fuel Pump
The Delphi FE0252 is an in-tank electric fuel pump for gasoline applications, built for 12-volt systems and standard replacement service. It delivers OE-informed fuel system performance for select Nissan Maxima and INFINITI Q45 applications, including in-tank fuel pump replacement needs.
Key Features
- 12-volt electric fuel pump for gasoline fuel systems
- In-tank design with hose outlet and strainer inlet type
- Maximum pressure rating of 94.0 and system pressure of 34 psi
- Average flow rating of 32 with 6-amp average current draw
- Blade terminals, male terminal ends, and included wiring harness
- Standard replacement grade for select OE-style fuel pump service
- Delphi FE0252 fuel pump engineered from OE heritage and application knowledge
Detailed Description
Delphi FE0252 is an electric fuel pump for in-tank installation on gasoline vehicles. It uses a 2-terminal blade connection, a hose-style outlet, and a strainer-type inlet, with a 0.375-inch outlet outside diameter. The pump is specified for 12-volt operation and is rated at 94.0 maximum pressure, 34 psi system pressure, 32 average flow rating, and 6 amps average current draw. Delphi’s OE background informs the design and application coverage of this standard replacement fuel pump.
This part cross-references Spectra Premium SP1139 for the same application. It also cross-references Airtex Fuel Pumps E8190 for related fuel pump service needs.
Compatible With select 1989-1991 Nissan Maxima, In-Tank; 1993-1994 Nissan Maxima, In-Tank; and 1997-2001 INFINITI Q45, In-Tank. Search terms such as Delphi FE0252 fuel pump for Nissan Maxima in-tank replacement and INFINITI Q45 electric fuel pump replacement align with this application coverage.
Common Problems This Part Can Address
- Hard starting caused by weak fuel delivery
- Engine hesitation from inconsistent fuel pressure
- Fuel starvation under load
- No-start conditions related to pump failure
- Poor drivability from an aging in-tank fuel pump
Installation Notes and Tips
- Install in the tank only, matching the listed position.
- Clean the fuel tank before installation to reduce the risk of seal-related issues.
- Use the included wiring harness and connector components as directed by the instruction sheet.
- Verify outlet hose routing and terminal orientation before final assembly.
- Confirm vehicle application by year, make, model, and in-tank configuration before purchase.
Quality Assurance
Delphi builds this fuel pump using OE experience and aftermarket application knowledge developed across a broad range of vehicles and model years. The FE0252 is a standard replacement part intended to meet the needs of the listed Nissan Maxima and INFINITI Q45 applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2001 | INFINITI | Q45 | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2000 | INFINITI | Q45 | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1999 | INFINITI | Q45 | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1998 | INFINITI | Q45 | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1997 | INFINITI | Q45 | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1994 | Nissan | Maxima | SE | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1994 | Nissan | Maxima | GXE | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1993 | Nissan | Maxima | SE | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1993 | Nissan | Maxima | GXE | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1991 | Nissan | Maxima | SE | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1991 | Nissan | Maxima | GXE | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1990 | Nissan | Maxima | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1989 | Nissan | Maxima | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
