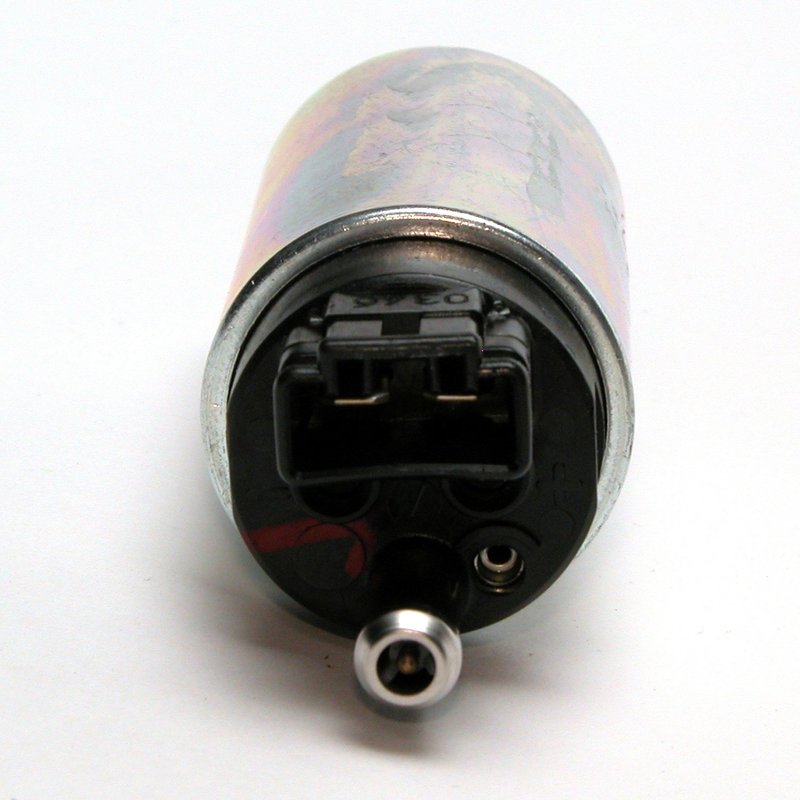

Delphi FE0295 Electric Fuel Pump - In-Tank

Reliable Electric Fuel Pump for Ford F-150

The Delphi FE0295 electric fuel pump is designed specifically for in-tank installation on Ford F-150 models. Engineered to deliver consistent fuel flow and pressure, this pump supports gasoline engines with a 12-volt electrical system, ensuring efficient fuel delivery for optimal engine performance.

• Compatible with Ford F-150 fuel systems requiring a 12V electric fuel pump
• Maximum pressure rating of 80 psi with a system pressure of 44 psi
• In-tank design with a 0.313 inch outlet outside diameter for hose connections
• Includes gasket or seal and comes with two hose clamps, hose piece, isolator, and pall nut
• Blade-type male terminals with two connections for secure wiring
• Average flow rating of 32 and average current draw of 7 amps

Technical Details and Features

The Delphi FE0295 electric fuel pump operates at 12 volts and is designed for gasoline fuel systems. Its in-tank configuration helps maintain consistent fuel pressure and flow, rated at a maximum of 80 psi and a system pressure of 44 psi. The pump features a blade terminal type with two male terminals, facilitating straightforward electrical connections. The outlet type is hose, with an outlet outside diameter of 0.313 inches, compatible with standard fuel hoses. This pump includes a gasket or seal to ensure a proper fit and prevent leaks. While the wiring harness and strainer are not included, the package contains essential installation components such as two hose clamps, a hose piece, an isolator, and a pall nut.

Applications and Problem Solving

• Replaces faulty or worn electric fuel pumps in Ford F-150 gasoline engines
• Resolves issues related to inconsistent fuel pressure or flow
• Addresses fuel delivery interruptions caused by pump failure
• Helps eliminate engine stalling or hesitation due to fuel starvation
• Supports restoration of proper fuel system operation in in-tank configurations

Installation Notes and Tips

Installation of the Delphi FE0295 electric fuel pump requires removal of the fuel tank to access the in-tank pump assembly. Ensure all fuel system pressure is relieved before beginning work. Use the included gasket or seal to prevent leaks and secure the pump with the provided hose clamps and isolator. Verify electrical connections match the blade-type male terminals and confirm proper polarity. Since the wiring harness and strainer are not included, reuse existing components or source replacements as needed. After installation, check for leaks and proper fuel pressure before starting the engine.

Quality Assurance and Warranty

Delphi manufactures the FE0295 electric fuel pump to meet standard replacement grade specifications, ensuring reliable performance and durability. The pump is tested to maintain consistent pressure and flow ratings suitable for Ford F-150 gasoline engines. Warranty coverage details should be confirmed with the point of purchase or Delphi directly, as coverage may vary by region and distributor.
