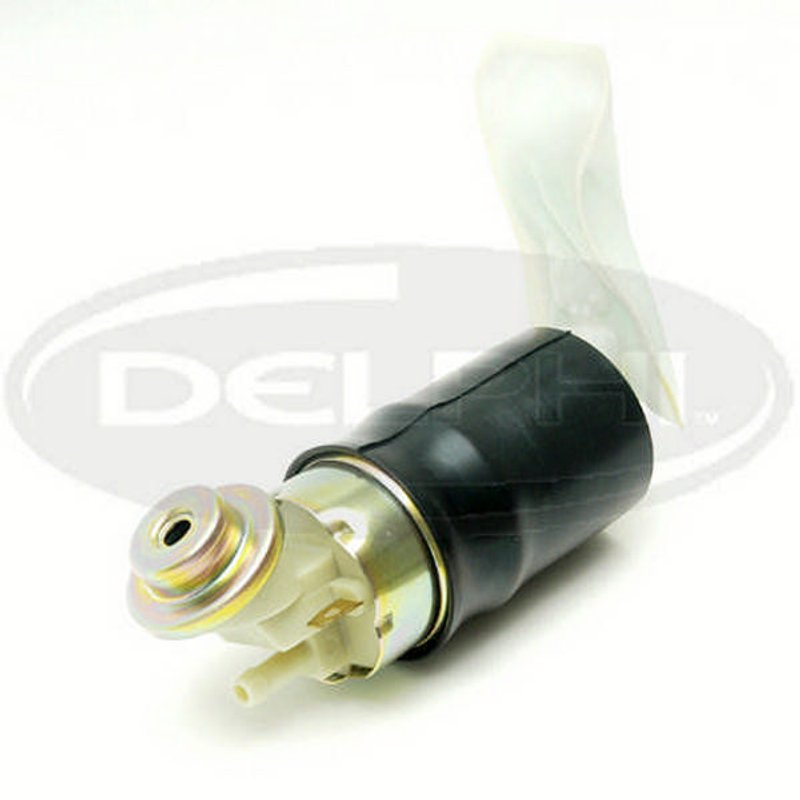

Delphi FE0337 Fuel Pump and Strainer Set

Delphi Fuel Pump and Strainer Set Overview

The Delphi FE0337 fuel pump and strainer set is designed for reliable fuel delivery in Nissan Maxima vehicles. This electric in-tank fuel pump operates at 12 volts and is engineered to maintain consistent fuel pressure and flow for optimal engine performance.

• Electric fuel pump with 12.0V operation
• Compatible with Nissan Maxima models
• Maximum pressure rating of 70 psi and system pressure of 36 psi
• Includes external strainer for fuel filtration
• Outlet outside diameter of 0.313 inches with hose bead outlet type
• Two male pin terminals for electrical connection
• Average flow rating of 50 liters per hour and average current draw of 10 amps
• Standard replacement grade part
• Package includes fuel pump, strainer set, and instruction sheet

Technical Details and Specifications

The Delphi FE0337 fuel pump is an electric, in-tank pump designed specifically for gasoline fuel systems. It features an external strainer inlet type to help prevent contaminants from entering the fuel system. The pump’s outlet has a hose bead design with an outside diameter of 0.313 inches, ensuring secure hose connections. Operating at 12 volts, this pump delivers an average flow rating of 50 liters per hour and maintains a system pressure of 36 psi, with a maximum pressure capacity of 70 psi. The electrical connection uses two male pin terminals, providing a reliable and straightforward wiring setup. This standard replacement grade pump is engineered to meet the fuel delivery requirements of Nissan Maxima vehicles, ensuring consistent engine performance.

Compatible Vehicles and Applications

This Delphi FE0337 fuel pump and strainer set is compatible with Nissan Maxima models requiring a 12V electric in-tank fuel pump. It is suitable for gasoline fuel systems and designed to replace original equipment fuel pumps that have failed or are underperforming. This part is ideal for addressing fuel delivery issues in Nissan Maxima vehicles, helping to restore proper fuel pressure and flow.

• Resolves fuel delivery interruptions or engine stalling
• Addresses low fuel pressure or inconsistent fuel flow
• Replaces noisy or failing fuel pumps
• Prevents fuel contamination with included external strainer
• Improves engine starting and overall drivability

Installation Notes and Tips

Installation of the Delphi FE0337 fuel pump and strainer set requires removal of the fuel tank to access the in-tank pump assembly. Ensure the vehicle’s battery is disconnected before beginning work to avoid electrical hazards. Verify the correct orientation of the pump and strainer during installation, and confirm secure connections at the two male pin terminals. Use appropriate tools to avoid damage to the hose bead outlet and inlet strainer. Follow the included instruction sheet carefully for detailed installation steps and safety precautions.

Quality Assurance and Warranty

Delphi fuel pumps are manufactured to meet industry standards for durability and performance. The FE0337 fuel pump and strainer set is a standard replacement grade part designed to provide reliable operation within specified parameters. While specific warranty details may vary, Delphi typically offers limited warranties covering defects in materials and workmanship. Refer to the product documentation or supplier information for exact warranty terms.
