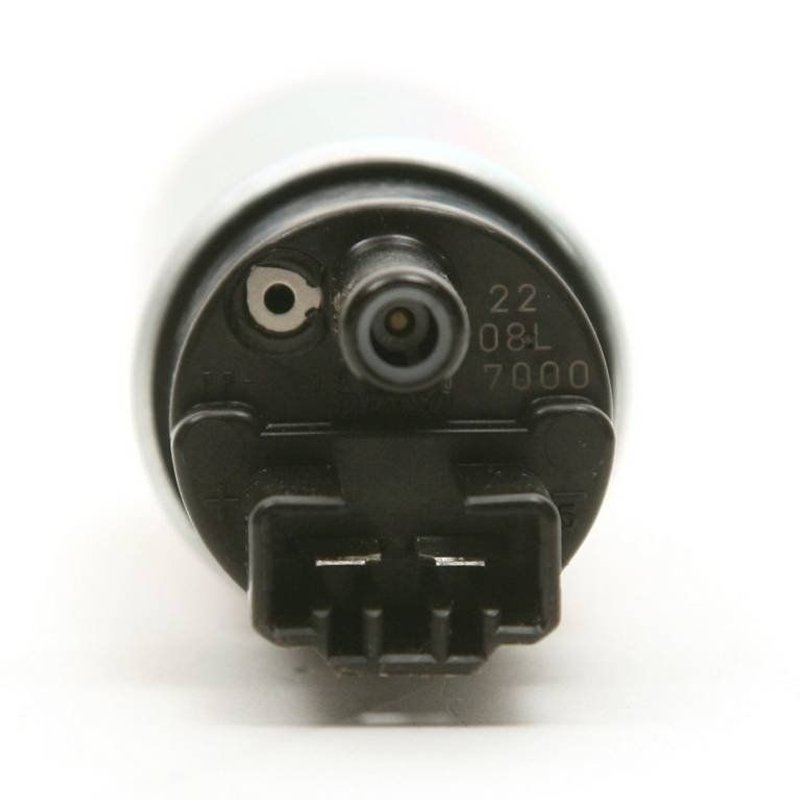

Delphi FE0407 Electric Fuel Pump - In-Tank

Reliable Electric Fuel Pump for Acura and Honda Vehicles

The Delphi FE0407 electric fuel pump is designed for in-tank installation, providing consistent fuel delivery for select Acura and Honda models. Engineered to meet standard replacement specifications, this pump supports optimal engine performance in vehicles like the Honda Accord, Civic, Civic del Sol, CL, and TL.

• 12-volt electric fuel pump suitable for gasoline engines
• Maximum pressure rating of 94 psi with a system pressure of 44 psi
• Average flow rating of 19 gallons per hour for steady fuel supply
• In-tank design with hose bead outlet and strainer inlet
• Pin-type male terminals with two connections for secure wiring
• Standard replacement grade with included instruction sheet

Technical Details and Specifications

The Delphi FE0407 electric fuel pump operates at 12 volts and is designed specifically for gasoline fuel systems. It features an outlet outside diameter of 0.375 inches and a hose bead outlet type, ensuring compatibility with standard fuel lines. The pump’s maximum pressure is rated at 94 psi, while the system pressure is maintained at 44 psi, supporting efficient fuel delivery under various driving conditions. With an average current draw of 10 amps and a flow rating of 19 gallons per hour, this pump balances power consumption and fuel supply effectively. The pump includes two male pin terminals for electrical connections but does not come with a wiring harness, gasket, or strainer.

Compatible Vehicles and Applications

This electric fuel pump is compatible with a range of Acura and Honda models, including:

• Acura CL and TL
• Honda Accord
• Honda Civic and Civic del Sol

It is designed as an in-tank fuel pump replacement, suitable for vehicles requiring a standard grade electric fuel pump with the specifications listed above.

Common Issues Addressed by the Delphi FE0407 Fuel Pump

• Fuel delivery interruptions causing engine hesitation or stalling
• Low fuel pressure affecting engine performance
• Electrical connection failures due to worn terminals
• Inconsistent fuel flow leading to poor acceleration
• Replacement of worn or failing in-tank fuel pumps in Acura and Honda models

Installation Notes and Tips

Installation of the Delphi FE0407 fuel pump requires removal of the fuel tank for in-tank access. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Since the pump does not include a wiring harness or gasket, verify the condition of existing components and replace as necessary. Properly secure the hose bead outlet to the fuel line to prevent leaks. Follow the included instruction sheet carefully for correct installation procedures and torque specifications.

Quality Assurance and Warranty Information

Delphi manufactures the FE0407 electric fuel pump to meet standard replacement quality standards, ensuring reliable operation and durability. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For warranty claims or further information, refer to Delphi’s official documentation or authorized service centers.
