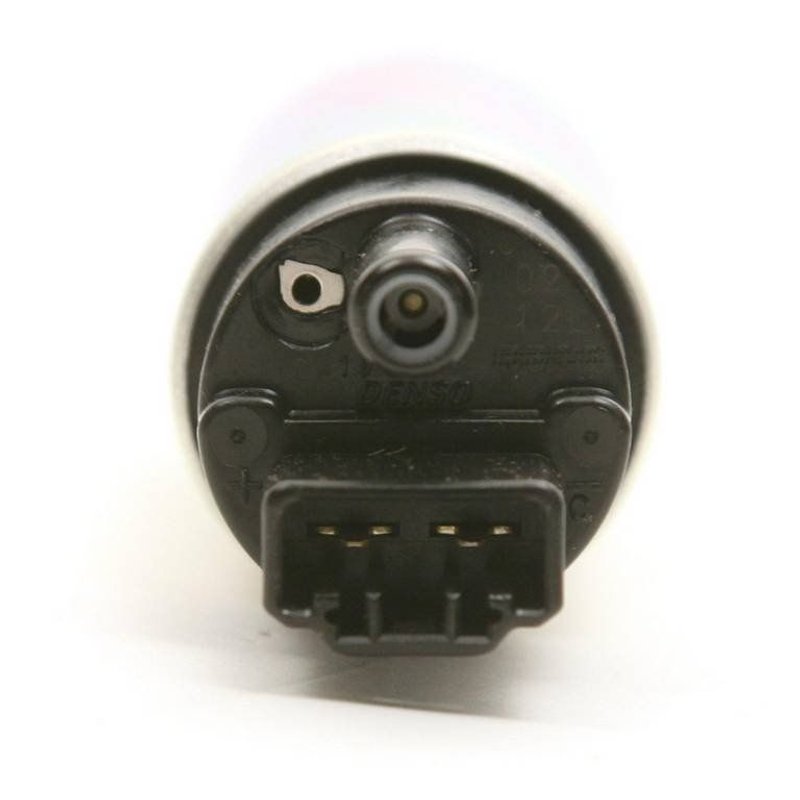

Delphi FE0410 Electric Fuel Pump - In-Tank

Reliable Electric Fuel Pump for Lexus and Toyota Vehicles

The Delphi FE0410 electric fuel pump is designed for in-tank installation, providing consistent fuel delivery for select Lexus and Toyota models. Engineered to operate at 12 volts with a maximum pressure of 94 psi, this pump supports efficient fuel system performance.

• Electric fuel pump with 12V operation
• In-tank design for seamless integration
• Maximum pressure rating of 94 psi and system pressure of 30 psi
• Compatible with Lexus GS300, GS400, GS430, IS300, LS430, SC430 and Toyota Previa, Sequoia, Supra, Tundra
• Outlet outside diameter of 0.313 inches with hose bead outlet type
• Pin-type male terminals, 2 terminals included
• Standard replacement grade with instruction sheet included

Technical Details and Specifications

The Delphi FE0410 fuel pump operates on a 12-volt electrical system, drawing an average current of 10 amps. It features a strainer inlet type and a hose bead outlet with an outside diameter of 0.313 inches, ensuring proper fuel flow and connection compatibility. The pump delivers an average flow rating of 34 liters per hour, maintaining system pressure at 30 psi to meet the fuel demands of gasoline engines. This pump includes two male pin terminals but does not come with a wiring harness, gasket, or strainer.

Compatible Vehicles and Applications

This electric fuel pump is compatible with a range of Lexus and Toyota models, including the Lexus GS300, GS400, GS430, IS300, LS430, SC430, and the Toyota Previa, Sequoia, Supra, and Tundra. The FE0410 is designed specifically for in-tank installation, making it suitable for fuel delivery systems in these vehicles that require a reliable replacement pump.

• Resolves fuel delivery issues such as engine hesitation or stalling
• Addresses low fuel pressure problems affecting engine performance
• Replaces faulty or worn-out in-tank fuel pumps
• Helps eliminate fuel pump noise or irregular operation
• Supports restoration of proper fuel flow for gasoline engines

Installation Notes and Tips

When installing the Delphi FE0410 electric fuel pump, ensure the vehicle’s fuel system is depressurized before removal of the old pump. This pump is designed for in-tank use and requires proper handling to avoid damage to the strainer inlet and terminals. Since the pump does not include a wiring harness or gasket, verify compatibility with existing components or source replacements as needed. Follow the included instruction sheet carefully for correct wiring and secure terminal connections.

Quality Assurance and Warranty

Delphi manufactures the FE0410 fuel pump to meet standard replacement grade specifications, ensuring reliable operation within the specified voltage and pressure ranges. While no specific warranty details are provided, Delphi products typically adhere to industry quality standards for automotive fuel delivery components.
