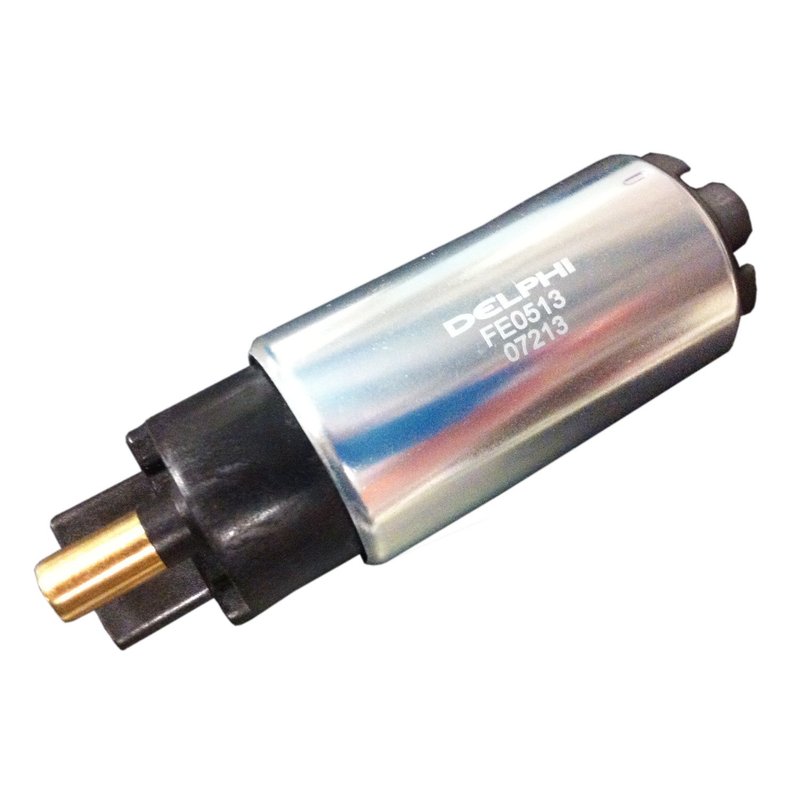

Delphi FE0513 Electric Fuel Pump - In-Tank
| Brand | Delphi FE0513 |
|---|---|
| Position | In-Tank |
| Average Current Draw | 5 |
| Average Flow Rating | 36 |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Item Grade | Standard Replacement |
| Maximum Pressure | 103.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Type | Hose |
| Package Contents | Electric Fuel Pump, Cap, Inlet Adapter, Pall Nut, Restrictor, (2) Seals, Instruction Sheet |
| Strainer Included | No |
| System Pressure | 44 psi |
| Terminal Gender | Male |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Voltage | 12 |
| Wiring Harness Included | No |
| Fits | Chrysler, Dodge, Mitsubishi, and Honda · 24 vehicles |
Standard replacement. Built as an electric fuel pump for straightforward service replacement.
OE heritage. Backed by Delphi's century of original-equipment experience.
12-volt operation. Uses blade terminals and a hose outlet for simple electrical and fuel connections.
Cross-references Airtex Fuel Pumps E7151M, Airtex Fuel Pumps E7163M and Airtex Fuel Pumps E8229 for the same application. See all 37.
Delphi FE0513 In-Tank Electric Fuel Pump
The Delphi FE0513 is an in-tank electric fuel pump for gasoline applications, built for 12-volt systems and standard replacement service. It delivers OE-based fuel system coverage for select Chrysler Sebring, Dodge Stratus, Mitsubishi Eclipse, Honda Insight, and Mitsubishi Galant applications.
Key Features
- In-tank electric fuel pump for gasoline fuel systems
- 12V operation with 2 blade-style male terminals
- Maximum pressure: 103.0 psi; system pressure: 44 psi
- Average flow rating: 36 and average current draw: 5
- Outlet outside diameter: 0.375 in. with hose outlet type
- Gasket or seal included; package includes electric fuel pump, cap, inlet adapter, pall nut, restrictor, (2) seals, and instruction sheet
- Standard replacement grade for select OE applications
OE-Based Fuel Delivery Design
Delphi FE0513 is engineered from the company’s long OE background supplying fuel system components to major automakers. That experience is reflected in the pump’s in-tank layout, gasoline-only construction, blade terminal connection, and application-specific pressure characteristics. This part cross-references Bosch 69496 and Carter P76519M for the same application. For shoppers searching for a Delphi FE0513 fuel pump, this unit supports direct replacement needs on select 1999-2005 Mitsubishi Galant, 2000-2005 Mitsubishi Eclipse, 2001-2003 Honda Insight, 2001-2005 Chrysler Sebring, and 2001-2005 Dodge Stratus applications.
Common Replacement Reasons
- Hard starting or extended cranking from weak fuel delivery
- Low fuel pressure causing hesitation or poor acceleration
- Engine stalling related to inconsistent pump output
- Fuel starvation under load in an aging in-tank pump
- Noise or failure from a worn electric fuel pump assembly
Installation Notes
Compatible With 2001-2005 Chrysler Sebring, in-tank; 2001-2005 Dodge Stratus, in-tank; 2000-2005 Mitsubishi Eclipse, in-tank; 2001-2003 Honda Insight, in-tank; and 1999-2003 Mitsubishi Galant, in-tank. Clean the fuel tank before installing the pump to help prevent future seal problems, as noted in the fitment data. Verify electrical connector style, outlet routing, and system pressure requirements before installation. The Delphi FE0513 fuel pump is intended for in-tank placement only.
Quality Assurance
Delphi builds this replacement pump using OE heritage and application knowledge developed over decades of fuel system supply. The FE0513 is packaged as a standard replacement part with gasket or seal included for the listed applications.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Chrysler | Sebring | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2005 | Dodge | Stratus | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2005 | Mitsubishi | Eclipse | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2004 | Chrysler | Sebring | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2004 | Dodge | Stratus | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2004 | Mitsubishi | Eclipse | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2003 | Chrysler | Sebring | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2003 | Dodge | Stratus | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2003 | Honda | Insight | Automatic CVT | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2003 | Mitsubishi | Eclipse | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2003 | Mitsubishi | Galant | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2002 | Chrysler | Sebring | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2002 | Dodge | Stratus | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2002 | Honda | Insight | Automatic CVT | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2002 | Mitsubishi | Eclipse | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2002 | Mitsubishi | Galant | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2001 | Chrysler | Sebring | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2001 | Dodge | Stratus | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2001 | Honda | Insight | Automatic CVT | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2001 | Mitsubishi | Eclipse | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2001 | Mitsubishi | Galant | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2000 | Mitsubishi | Eclipse | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2000 | Mitsubishi | Galant | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1999 | Mitsubishi | Galant | — | In-Tank | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| No rows match your filter. | |||||
