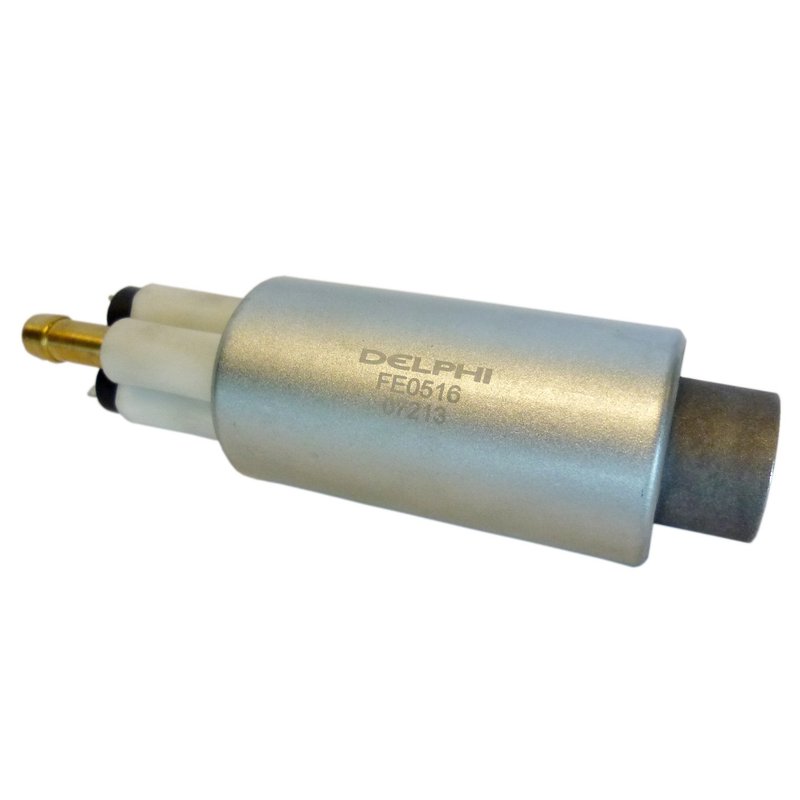

Delphi FE0516 Electric Fuel Pump - In-Tank

Reliable Electric Fuel Pump for Chrysler, Dodge, and Plymouth Vehicles

The Delphi FE0516 electric fuel pump is designed for in-tank installation, providing consistent fuel delivery for various Chrysler, Dodge, and Plymouth models. Engineered to meet standard replacement specifications, this pump supports gasoline fuel systems with a 12-volt power supply.

• In-tank electric fuel pump with 12V operation
• Compatible with Chrysler, Dodge, and Plymouth models including Caravan, LeBaron, and Grand Voyager
• Maximum pressure rating of 36 psi and system pressure of 15 psi
• Outlet outside diameter of 0.313 inches with hose-type outlet
• Includes gasket or seal and two blade terminals (male, 2 terminals)
• Average flow rating of 32 and average current draw of 2 amps
• Standard replacement grade for reliable fuel delivery

Technical Specifications and Features

The Delphi FE0516 electric fuel pump operates at 12 volts and is designed for gasoline fuel systems. It features an in-tank design with a strainer inlet and hose outlet, ensuring clean fuel delivery. The pump supports a maximum pressure of 36 psi and maintains a system pressure of 15 psi, suitable for a range of Chrysler, Dodge, and Plymouth vehicles. The outlet outside diameter measures 0.313 inches, compatible with standard fuel hoses. This pump includes a gasket or seal for secure installation and comes with two male blade terminals for electrical connections. The average flow rating is 32, with a current draw of 2 amps, balancing performance and efficiency.

Compatible Vehicles and Applications

This electric fuel pump is compatible with multiple Chrysler, Dodge, and Plymouth models, including but not limited to:

• Chrysler Caravan, Grand Caravan, Town & Country, New Yorker
• Dodge Aries, Daytona, Dynasty, Lancer, Shadow, Spirit, Sundance, Voyager, Grand Voyager
• Plymouth Acclaim, Reliant, Laser, LeBaron, 600

Designed for in-tank installation, the FE0516 supports fuel delivery systems requiring a 15 psi system pressure, making it suitable for standard gasoline engines in these vehicles.

Common Issues Addressed by the Delphi FE0516 Fuel Pump

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Low fuel pressure affecting engine performance and fuel efficiency
• Fuel pump noise or irregular operation indicating wear or failure
• Leaks or damaged seals compromising fuel system integrity
• Electrical connection problems due to worn or corroded terminals

Installation Notes and Tips

When installing the Delphi FE0516 electric fuel pump, ensure the vehicle’s fuel system is depressurized before removal. The pump is designed for in-tank installation and includes a gasket or seal to prevent leaks. Use the provided two blade terminals for secure electrical connections, verifying polarity and terminal fit. Hose clamps included should be properly tightened to avoid fuel leaks at the 0.313-inch outlet hose connection. Since the wiring harness is not included, reuse the existing harness or source a compatible one. Verify system pressure after installation to confirm proper operation.

Quality Assurance and Warranty

The Delphi FE0516 electric fuel pump is manufactured to meet standard replacement quality standards, ensuring reliable fuel delivery and durability. Delphi products typically come with a limited warranty covering defects in materials and workmanship. For specific warranty details, refer to the product documentation or contact the manufacturer directly.
