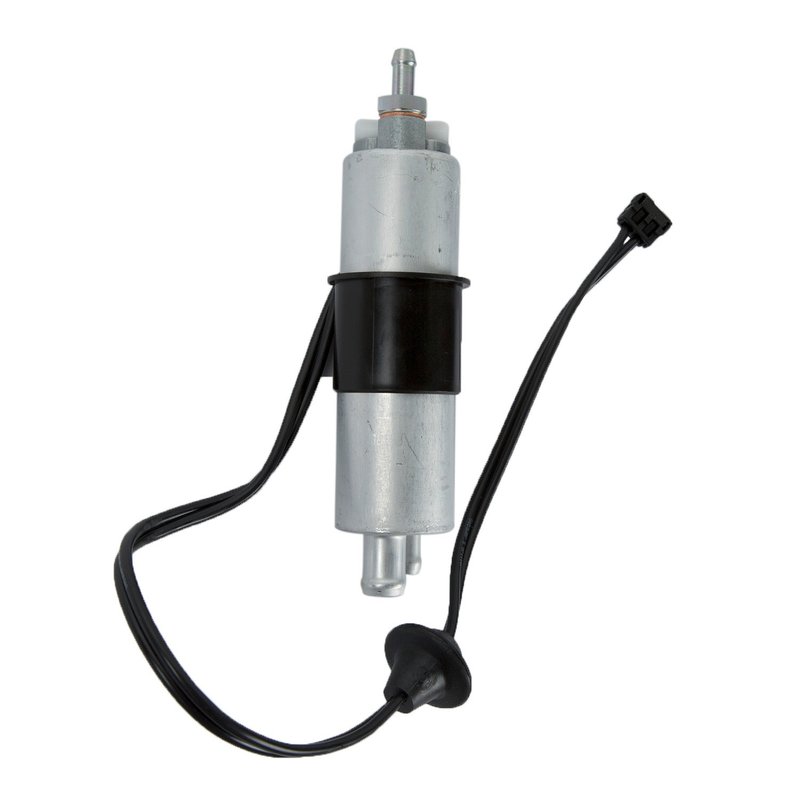

Delphi FE0520 Electric Fuel Pump - In-Line
| Brand | Delphi FE0520 |
|---|---|
| Position | In-Line |
| Inlet Outside Diameter | 0.625 |
| Outlet Outside Diameter | 0.313 |
| Voltage | 14 |
| Fuel Type | Gas |
| Maximum Pressure | 160.0 |
| Terminal Type | Pin |
| Gasket Or Seal Included | No |
| Terminal Quantity | 2 |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Strainer Included | No |
| Inlet Type | Hose |
| Outlet Type | Hose |
| In Tank or External | External |
| Average Current Draw | 9 |
| Average Flow Rating | 53 |
| Item Grade | Standard replacement |
| Package Contents | Electric fuel pump, instruction sheet |
| System Pressure | 58 psi |
| Fits | Mercedes-Benz · 15 vehicles |
Standard replacement. Direct-fit electric fuel pump for straightforward service.
External in-line design. Hose inlet and outlet simplify fuel system connections.
OE heritage. Built with 100 years of Delphi OE experience.
Cross-references Airtex Fuel Pumps E8286, Bosch 69528 and Carter P72257 for the same application. See all 9.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Delphi FE0520 Electric Fuel Pump
Delphi FE0520 is an external in-line electric fuel pump for gasoline applications, built for steady fuel delivery and OE-style replacement performance. It is a direct-fit option for select Mercedes-Benz models, including CLK320, C280, C230, and C36 AMG.
Key Features
- External in-line electric fuel pump for gas systems
- 14-volt operation with 2-pin male terminals
- Maximum pressure: 160.0
- System pressure: 58 psi
- Average flow rating: 53
- Average current draw: 9
- Hose inlet and hose outlet connections
- Standard replacement design from Delphi OE heritage
Product Details
The Delphi FE0520 fuel pump is engineered for gasoline fuel delivery in external in-line mounting locations. With a 0.625 inlet outside diameter and 0.313 outlet outside diameter, it supports hose-connected fuel system layouts while maintaining the pressure and flow needed for consistent engine operation. Delphi draws on more than a century of OE experience, bringing factory-level knowledge to aftermarket fuel system components for Mercedes-Benz applications.
This part cross-references Bosch 69528 for the same application. It also cross-references Airtex Fuel Pumps E8286 for select applications.
What It Helps Address
- Hard starting caused by weak fuel delivery
- Engine hesitation from low fuel pressure
- Fuel starvation under load or acceleration
- Intermittent drivability issues tied to pump wear
- Loss of consistent fuel flow in external in-line systems
Installation Notes
- Compatible With 1998-2003 Mercedes-Benz CLK320, In-Line
- Compatible With 1995-2000 Mercedes-Benz C280, In-Line
- Compatible With 1997-1998 Mercedes-Benz C230, In-Line
- Compatible With 1995 Mercedes-Benz C36 AMG, In-Line
- Clean the fuel tank before installing the fuel pump to help prevent future seal problems.
- Package contents include the electric fuel pump and instruction sheet only.
- No gasket or seal, wiring harness, or strainer is included.
Quality Assurance
Delphi builds this fuel pump using OE heritage and application knowledge developed through long-term supplier experience with major automakers. FE0520 is a standard replacement part for select Mercedes-Benz fuel systems and is backed by Delphi manufacturing standards.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2003 | Mercedes-Benz | CLK320 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2002 | Mercedes-Benz | CLK320 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2001 | Mercedes-Benz | CLK320 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2000 | Mercedes-Benz | C280 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 2000 | Mercedes-Benz | CLK320 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1999 | Mercedes-Benz | C280 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1999 | Mercedes-Benz | CLK320 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1998 | Mercedes-Benz | C230 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1998 | Mercedes-Benz | C280 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1998 | Mercedes-Benz | CLK320 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1997 | Mercedes-Benz | C230 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1997 | Mercedes-Benz | C280 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1996 | Mercedes-Benz | C280 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1995 | Mercedes-Benz | C280 | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1995 | Mercedes-Benz | C36 AMG | In-Line | Clean fuel tank before installing fuel pump to prevent future seal problems. |
