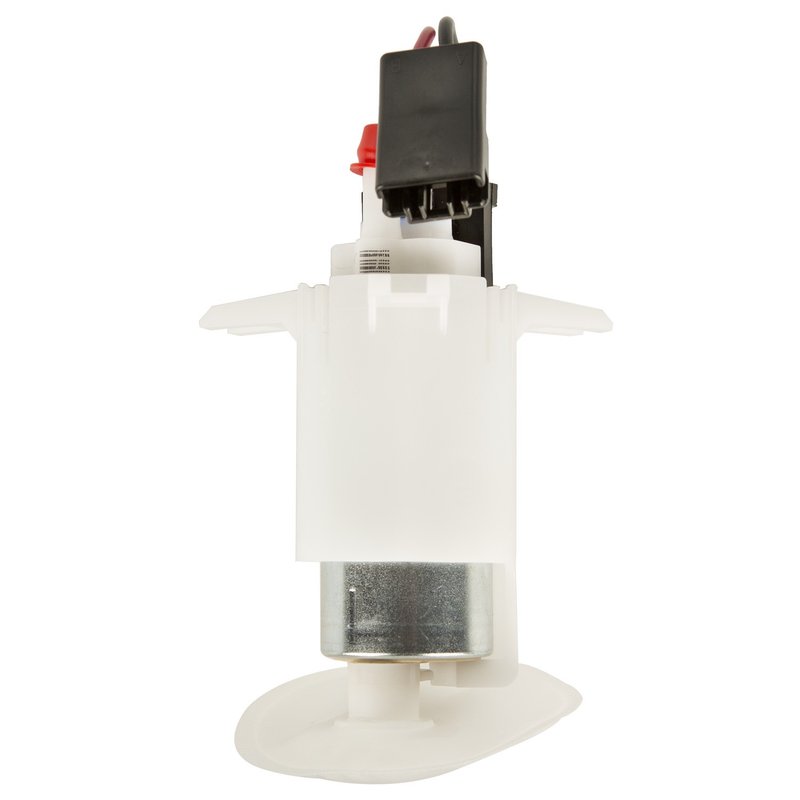

Delphi FE0536 Fuel Pump and Strainer Set

Reliable Fuel Pump and Strainer Set for Mercedes-Benz ML320 and ML430

The Delphi FE0536 fuel pump and strainer set is designed specifically for Mercedes-Benz ML320 and ML430 models. This electric in-tank fuel pump delivers consistent fuel flow and pressure to maintain optimal engine performance.

Key Features of Delphi FE0536 Fuel Pump and Strainer Set

• Inlet outside diameter: 0.375 inches for secure fuel intake
• Outlet outside diameter: 0.313 inches with hose-type outlet
• Operates on 12.0 volts, compatible with standard automotive electrical systems
• Maximum pressure rating of 87 psi ensures reliable fuel delivery
• Includes external strainer to protect the fuel system from contaminants
• Pin-type male terminals with two connections for easy wiring
• Average current draw of 12 amps and flow rating of 30 liters per hour
• Press-on filter inlet type designed for in-tank installation
• Package includes fuel pump, strainer set, metal clamp, and instruction sheet

Detailed Description of Delphi FE0536 Fuel Pump and Strainer Set

This Delphi fuel pump and strainer set (part number FE0536) is engineered for use in Mercedes-Benz ML320 and ML430 vehicles. The electric pump operates at 12 volts and is designed for in-tank installation, providing a steady fuel flow rated at 30 liters per hour. The external strainer helps prevent debris from entering the fuel system, extending the life of your engine components. With a maximum pressure of 87 psi and a system pressure of 7 psi, this pump maintains consistent fuel delivery under various driving conditions. The pump features pin-type male terminals with two connections, facilitating straightforward electrical integration without the need for a wiring harness. The inlet and outlet diameters are optimized for secure hose connections, ensuring leak-free operation.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Mercedes-Benz ML320 and ML430
• Resolves fuel delivery interruptions causing engine hesitation or stalling
• Prevents fuel contamination by utilizing the included external strainer
• Addresses low fuel pressure issues affecting engine performance
• Suitable for restoring proper fuel system function in vehicles with worn or damaged pumps

Installation Notes and Tips

Installation of the Delphi FE0536 fuel pump and strainer set requires removal of the fuel tank for in-tank mounting. Ensure all electrical connections use the pin-type male terminals provided, and verify secure hose connections to the 0.375 inch inlet and 0.313 inch outlet fittings. The package includes a metal clamp to secure the pump assembly. Follow the included instruction sheet carefully to avoid damage to the fuel system components. It is recommended to inspect and replace fuel filters during installation to maintain system cleanliness.

Quality Assurance and Warranty Information

Delphi manufactures this fuel pump and strainer set to meet standard replacement grade specifications, ensuring reliable performance and durability. While no specific warranty details are provided here, Delphi products typically come with manufacturer-backed quality assurance. Always verify warranty terms with the product documentation or supplier.
