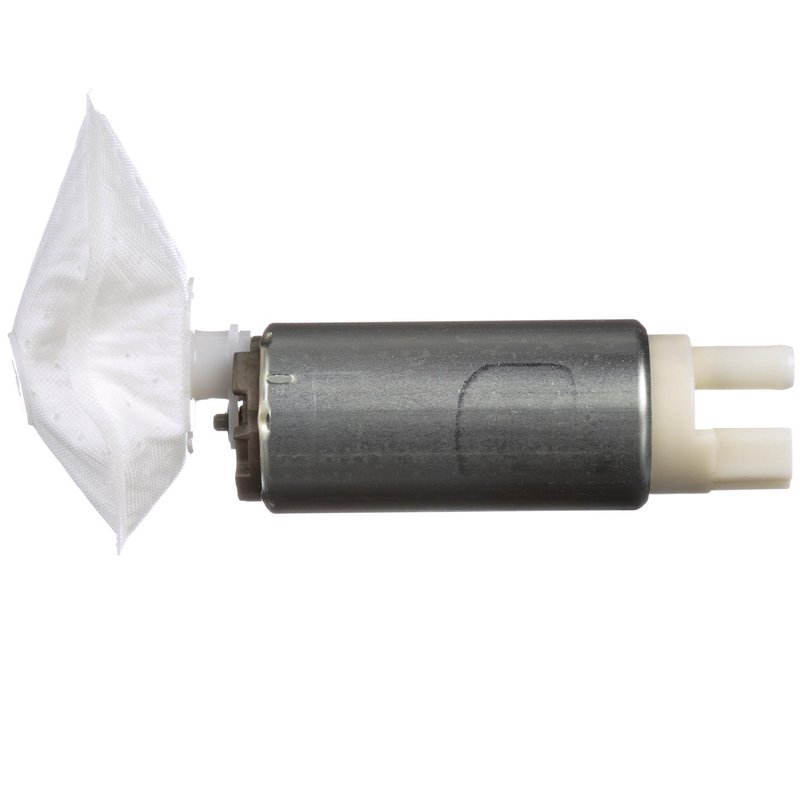

Delphi FE0664 Fuel Pump and Strainer Set

Reliable Fuel Pump and Strainer Set for Subaru Forester

The Delphi FE0664 fuel pump and strainer set is designed specifically for Subaru Forester models requiring a dependable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this set ensures optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0-volt operation
• Maximum pressure rating of 98 psi and system pressure of 49 psi
• Average flow rating of 22 liters per hour for steady fuel delivery
• Includes external strainer for effective fuel filtration
• Blade-type male terminals with two connections for secure wiring
• Outlet outside diameter of 0.359 inches with hose bead outlet type
• Designed for gasoline fuel systems
• Standard replacement grade for reliable performance

Technical Details and Compatibility

The Delphi FE0664 fuel pump and strainer set operates at 12 volts and is designed for in-tank installation in Subaru Forester vehicles. It features an external strainer inlet type to protect the fuel system from contaminants. The pump’s blade terminal type with two male terminals ensures compatibility with factory wiring harnesses, although the wiring harness is not included. With an average current draw of 10 amps, this electric pump maintains a consistent flow rating of 22 liters per hour, supporting the fuel demands of Subaru Forester engines. The outlet uses a hose bead connection with a 0.359-inch outside diameter, facilitating secure fuel line attachment.

Common Applications and Problem Resolution

• Replacement for failing or noisy fuel pumps in Subaru Forester models
• Resolves fuel delivery issues causing engine hesitation or stalling
• Addresses low fuel pressure problems affecting engine performance
• Prevents fuel contamination with included external strainer
• Suitable for restoring proper fuel system operation after pump failure

Installation Notes and Tips

Installation of the Delphi FE0664 fuel pump and strainer set requires removal of the fuel tank for in-tank mounting. Ensure the vehicle’s battery is disconnected before beginning work to avoid electrical hazards. Verify that the blade-type male terminals match the vehicle’s wiring connectors. Since the wiring harness and gasket or seal are not included, reuse existing components if in good condition or source replacements separately. Follow the included instruction sheet carefully to maintain proper orientation and secure connections for optimal pump performance.

Quality Assurance and Warranty

Delphi manufactures the FE0664 fuel pump and strainer set to meet standard replacement grade specifications, ensuring reliable operation and durability. While specific warranty details are not provided, Delphi products typically adhere to industry quality standards and undergo rigorous testing to comply with OEM requirements. This fuel pump set is engineered to maintain consistent fuel pressure and flow, supporting the longevity of your Subaru Forester’s fuel system.
