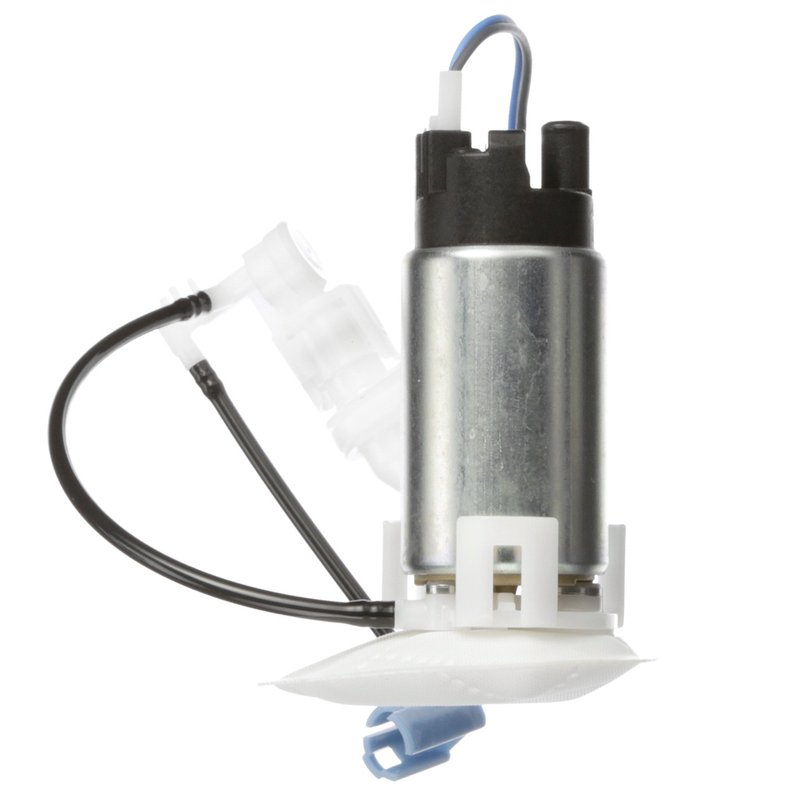

Delphi FE0681 Fuel Pump and Strainer Set
| Brand | Delphi FE0681 |
|---|---|
| Average Current Draw | 10 |
| Average Flow Rating | 37 |
| Fuel Type | Gas |
| Gasket Or Seal Included | No |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Maximum Pressure | 123.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Type | Hose Bead |
| Package Contents | Fuel Pump and Strainer Set, Harness Assembly, Instruction Sheet |
| Pump Type | Electric |
| Strainer Included | Yes |
| System Pressure | 45 psi |
| Terminal Gender | Female |
| Terminal Quantity | 2 |
| Terminal Type | Pin |
| Voltage | 12.0 |
| Wiring Harness Included | Yes |
| Fits | Toyota · 7 vehicles |
Standard replacement. Direct-fit fuel pump and strainer set for straightforward service.
Electric pump. Delivers consistent fuel flow with 123 psi maximum pressure.
Harness included. Comes with a wiring harness and strainer for a complete install.
Cross-references 23220-31411, 77785 42040 and CFE0681 for the same application. See all 4.
Fuel Pump Set for Toyota RAV4
Delphi FE0681 is an in-tank electric fuel pump and strainer set built for gasoline applications with OE-based engineering. It is a direct-fit replacement for select 2012-2018 Toyota RAV4 models built in Japan, with the harness assembly and instruction sheet included for a cleaner service job.
With a 12-volt design, 123 psi maximum pressure, and a 37 average flow rating, this Delphi fuel pump set supports consistent fuel delivery for the Toyota RAV4 fuel system. Delphi FE0681 also includes an external strainer and hose bead outlet for the specified application.
Key Features
- In-tank electric fuel pump and strainer set for gasoline fuel systems
- 12.0V operation with 10 amp average current draw
- Maximum pressure rating of 123.0 and system pressure of 45 psi
- Average flow rating of 37 for steady fuel delivery
- Includes wiring harness assembly and instruction sheet
- External strainer included; gasket or seal not included
- Female pin terminals with 2 terminals
- Outlet outside diameter: 0.375 in.; outlet type: hose bead
Detailed Description
Delphi FE0681 is a standard replacement fuel pump and strainer set engineered for in-tank installation on select Toyota RAV4 applications. Delphi draws on more than a century of OE experience and supplier knowledge used by major automakers, and that background is reflected in the fit, function, and fuel-system focus of this part. For shoppers searching for a Toyota RAV4 fuel pump replacement, Delphi FE0681 provides the core components needed for service on 2012-2018 Toyota RAV4, Japan built models.
This part cross-references Toyota 23220-31411 and Delphi E9238 for the same application.
Common Repair Symptoms
- Hard starting or extended cranking
- Engine stalling from inconsistent fuel delivery
- Loss of fuel pressure under load
- Fuel pump noise from the tank area
- Poor acceleration caused by restricted fuel supply
Installation Notes
Compatible With 2012-2018 Toyota RAV4, N/A. Notes for this application specify Japan built vehicles. Clean the fuel tank before installing the replacement pump to reduce the risk of contamination-related failure, and Delphi recommends fuel tank cleaning kit FC01 for this service. Verify electrical connector style, terminal count, and outlet configuration before installation.
Quality Assurance
Delphi builds this fuel pump set using OE heritage and application knowledge developed through long-term supplier experience with global automakers. The FE0681 is a standard replacement part for the specified Toyota RAV4 fitment and is packaged with the pump and strainer set, harness assembly, and instruction sheet.
| Year | Make | Model | Drive Type | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2018 | Toyota | RAV4 | FWD | GAS | N/A | Japan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2017 | Toyota | RAV4 | FWD | GAS | N/A | Japan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2016 | Toyota | RAV4 | FWD | GAS | N/A | Japan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2015 | Toyota | RAV4 | FWD | — | N/A | Japan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2014 | Toyota | RAV4 | FWD | — | N/A | Japan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2013 | Toyota | RAV4 | FWD | — | N/A | Japan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2012 | Toyota | RAV4 | — | — | N/A | Japan Built; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
