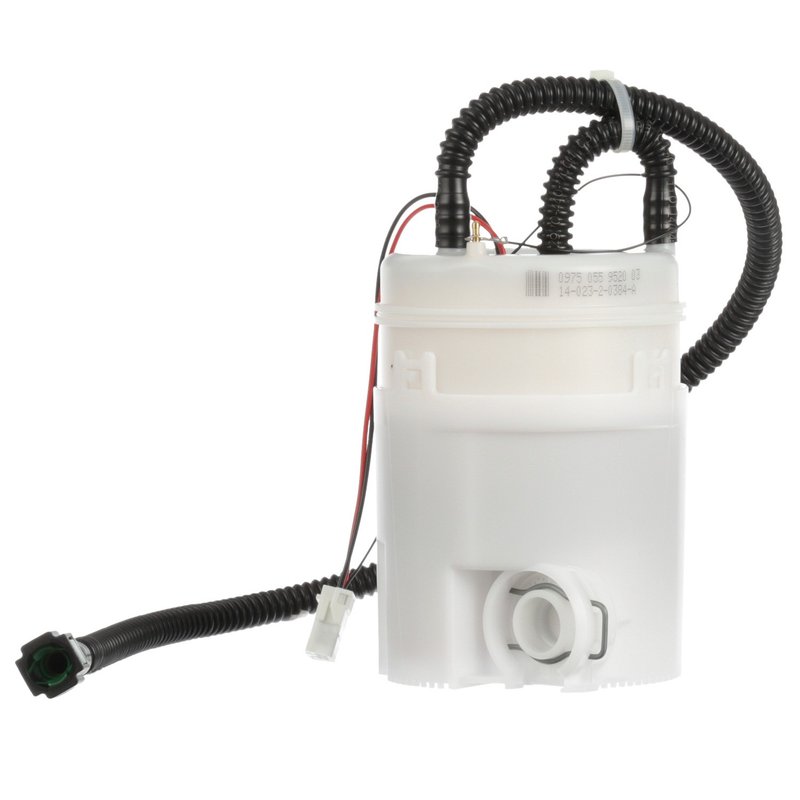

Delphi FE0692 Fuel Pump and Strainer Set

Delphi FE0692 Fuel Pump and Strainer Set

Delphi FE0692 is an in-tank electric fuel pump and strainer set built for gas applications that require stable fuel delivery and OE-style fitment. It is a standard replacement for select Land Rover LR3 and Range Rover Sport models, with Delphi OE heritage reflected in the pump design and component selection.

Key Features

• In-tank electric fuel pump for gas fuel systems
• 12.0-volt operation with 2-pin female terminals
• Maximum pressure rating of 138.0 and system pressure of 65 psi
• Average flow rating of 38 and average current draw of 10
• Quick-connect outlet with 0.375 in. outside diameter
• Internal strainer included; reservoir assembly and instruction sheet included
• Standard replacement grade for OE-style service work

Detailed Description

Delphi FE0692 is engineered as a fuel pump and strainer set for in-tank installation on gas-powered vehicles. It uses an electric pump design with a quick-connect outlet, pin terminals, and an internal strainer to support consistent fuel transfer from the tank to the engine. Delphi’s OE background and broad aftermarket coverage are reflected in the part’s construction and application focus. This part cross-references A25523 and E8858M for the same application.

Compatible With 2005-2009 Land Rover LR3, N/A, and 2006-2009 Land Rover Range Rover Sport, N/A. For Land Rover LR3 and Range Rover Sport fuel tank service, FE0692 is a direct-fit replacement option for the listed tank configuration.

What It Helps Address

• Hard starting caused by weak or inconsistent fuel delivery
• Engine hesitation from low fuel pressure
• Fuel starvation under load
• Poor drivability related to a failing in-tank pump
• Restricted flow from a worn or contaminated strainer

Installation Notes

Install in the fuel tank only. This unit does not include a gasket or seal, and no wiring harness is included. The vehicle notes specify fuel tank contamination as a leading cause of premature pump failure; cleaning the tank before installation is recommended, and Delphi recommends fuel tank cleaning kit FC01 for these applications. Verify the tank configuration before ordering, especially for LR3 and Range Rover Sport models with 3 vent pipes.

Quality Assurance

Delphi builds this replacement part using OE experience developed through long-term supply to major automakers. FE0692 is intended to provide a service-level replacement with application-specific fitment and fuel-system specifications aligned to the listed vehicles.
