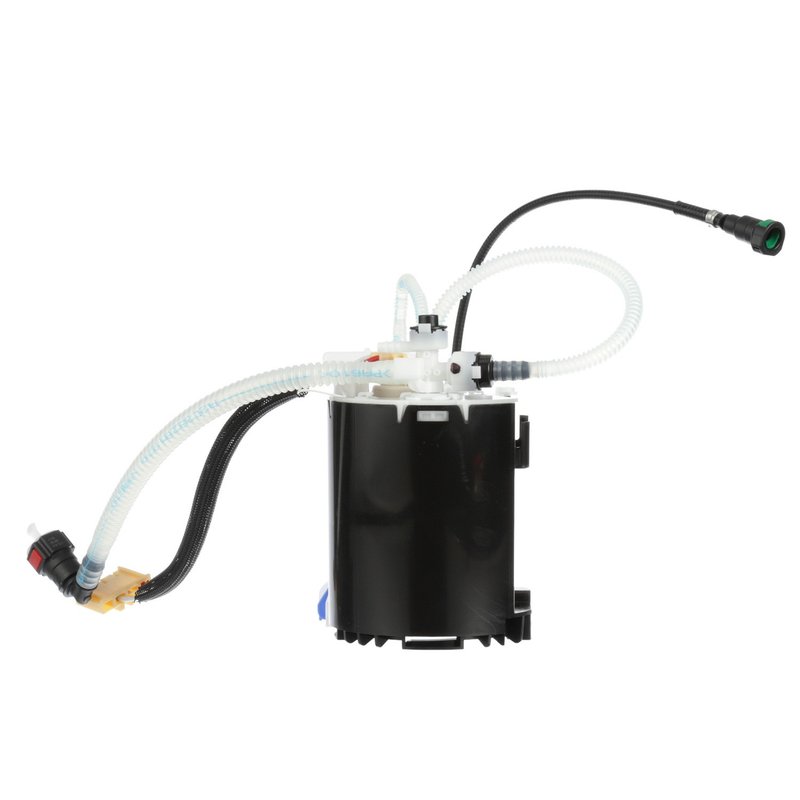

Delphi FE0696 Fuel Pump and Strainer Set

Delphi Fuel Pump and Strainer Set Overview

The Delphi FE0696 fuel pump and strainer set is designed specifically for Land Rover Range Rover and Range Rover Sport models. This in-tank electric fuel pump delivers reliable fuel flow and pressure to maintain optimal engine performance.

• Electric fuel pump with 12V operation
• Maximum pressure rating of 138 psi and system pressure of 65 psi
• Average flow rating of 30 liters per hour
• Includes external strainer with quick connect outlet
• Three female blade terminals for secure electrical connection
• Compatible with gasoline fuel systems
• Standard replacement grade for reliable durability

Technical Details and Specifications

The Delphi FE0696 fuel pump features a 0.375 inch outlet outside diameter and a quick connect outlet type for easy installation. It operates at 12 volts with an average current draw of 10 amps, ensuring efficient power consumption. The pump is designed for gasoline fuel systems and includes an external strainer to protect the fuel system from contaminants. The unit is intended for in-tank installation and comes with three female blade terminals for wiring, though a wiring harness and gasket or seal are not included. This standard replacement grade pump supports a maximum pressure of 138 psi and maintains a system pressure of 65 psi, suitable for Land Rover Range Rover and Range Rover Sport vehicles requiring precise fuel delivery.

Compatible Vehicles and Applications

This fuel pump and strainer set is compatible with the following Land Rover models:

• Range Rover
• Range Rover Sport

It is designed to replace the original equipment fuel pump in these vehicles, ensuring proper fuel delivery and engine performance.

Common Issues Addressed by the Delphi FE0696

• Fuel delivery interruptions causing engine stalling or hesitation
• Low fuel pressure affecting engine power and efficiency
• Fuel pump failure due to wear or contamination
• Clogged fuel strainer leading to restricted fuel flow
• Electrical connection problems with blade terminals

Installation Notes and Tips

Installation of the Delphi FE0696 fuel pump and strainer set requires removal of the fuel tank for in-tank access. Ensure the vehicle’s battery is disconnected before beginning work. The pump features a quick connect outlet and three female blade terminals; verify compatibility with your vehicle’s wiring harness. Since the gasket or seal is not included, inspect and replace any seals as needed to prevent leaks. Follow the included instruction sheet carefully to ensure proper installation and avoid damage to the fuel system components.

Quality Assurance and Warranty

Delphi provides a standard replacement grade fuel pump and strainer set engineered to meet OEM specifications. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Using this Delphi FE0696 fuel pump ensures a reliable and consistent fuel delivery solution for your Land Rover Range Rover or Range Rover Sport.
