Delphi FE0697 Fuel Pump and Strainer Set
OE Quality 60-Day Returns
Delphi

Delphi FE0697 Fuel Pump and Strainer Set

Brand Delphi FE0697
Outlet Outside Diameter 0.313
Voltage 12.0
Fuel Type Diesel
Maximum Pressure 138.0
Terminal Type Blade
Gasket Or Seal Included No
Terminal Quantity 4
Terminal Gender Female
Wiring Harness Included No
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick connect
In Tank or External In tank
Internal Or External Strainer Internal
Average Current Draw 10
Average Flow Rating 50
Pump Type Electric
Item Grade Standard replacement
Package Contents Fuel pump and strainer set, instruction sheet
System Pressure 58 psi
Fits Audi and Volkswagen · 11 vehicles

Standard replacement. Direct-fit fuel pump and strainer set for straightforward service.

Electric pump. Delivers diesel fuel at up to 138 psi with 12-volt operation.

Strainer included. Internal strainer and quick-connect outlet simplify the fuel system setup.

Cross-references 7P6 919 088 B and CFE0697 for the same application. See all 2.

$514.17Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $514.17
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Fuel Pump and Strainer Set options

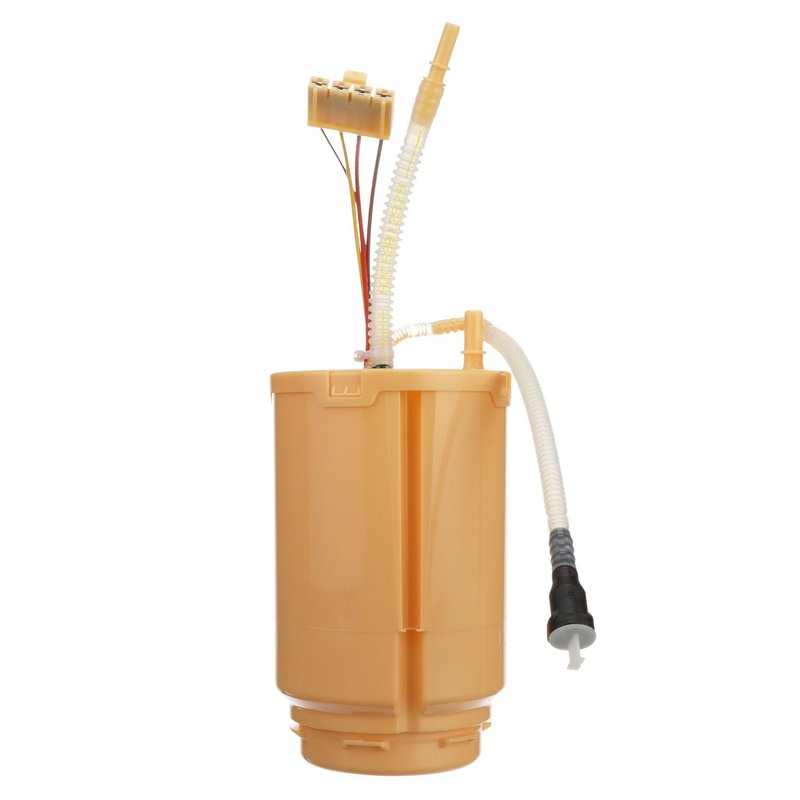

Delphi FE0697 Fuel Pump and Strainer Set

Delphi FE0697 is an in-tank electric fuel pump and strainer set for diesel applications that require a standard replacement with OE-based engineering. It operates on 12 volts, uses a blade terminal design, and is built for a maximum pressure of 138 psi with a 58 psi system pressure rating.

Key Features

  • In-tank electric fuel pump for diesel fuel systems
  • 12.0V design with 4 female blade terminals
  • Maximum pressure: 138.0; system pressure: 58 psi
  • Average flow rating: 50 with average current draw of 10
  • Quick-connect outlet and internal strainer design
  • Strainer included; gasket or seal not included
  • Standard replacement grade for OE-style service
  • Package contents: fuel pump and strainer set, instruction sheet

Detailed Description

Delphi FE0697 is a fuel pump and strainer set engineered for diesel fuel delivery in in-tank applications. Delphi draws on OE heritage and supplier experience with major automakers, and that background is reflected in the part’s electrical and fuel-system specifications, including a 12-volt electric pump, female blade terminals, quick-connect outlet, and internal strainer arrangement. This part cross-references 7P6 919 088 B and CFE0697 for the same application. It is a direct service option for select Volkswagen Touareg and Audi Q7 diesel models, including Fits 2011-2016 Volkswagen Touareg, N/A and Fits 2011-2015 Audi Q7, N/A.

What It Helps Address

  • Hard starting caused by weak diesel fuel delivery
  • Low fuel pressure conditions in the tank-mounted pump circuit
  • Fuel starvation from a restricted or worn strainer
  • Intermittent drivability issues tied to inconsistent pump output
  • Service replacement needs on select Volkswagen Touareg and Audi Q7 diesel applications

Installation Notes

Confirm diesel fuel system compatibility before installation. For 2011-2016 Volkswagen Touareg and 2011-2015 Audi Q7 applications without a 2010 model year fuel tank retrofit, clean the fuel tank before installing the new pump to reduce contamination risk and premature pump failure; Delphi recommends fuel tank cleaning kit FC01 for best results. The gasket or seal is not included, and no wiring harness is included.

Quality Assurance

Delphi builds this replacement pump using OE-focused engineering and application knowledge developed through long-term supplier experience with global automakers. FE0697 is a standard replacement fuel pump and strainer set for diesel in-tank service.

Related reading

This part fits 11 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelFuel TypePositionNotes
2016VolkswagenTouaregDIESELN/AFor vehicles without a 2010 model year fuel tank retrofit, clean the fuel tank before installing a new pump to prevent contamination and premature pump failure; Use fuel tank cleaning kit FC01 for best results.
2015AudiQ7DIESELN/AFor vehicles without a 2010 model year fuel tank retrofit, clean the fuel tank before installing a new pump to prevent contamination and premature pump failure; Use fuel tank cleaning kit FC01 for best results.
2015VolkswagenTouaregDIESELN/AFor vehicles without a 2010 model year fuel tank retrofit, clean the fuel tank before installing a new pump to prevent contamination and premature pump failure; Use fuel tank cleaning kit FC01 for best results.
2014AudiQ7DIESELN/AFor vehicles without a 2010 model year fuel tank retrofit, clean the fuel tank before installing a new pump to prevent contamination and premature pump failure; Use fuel tank cleaning kit FC01 for best results.
2014VolkswagenTouaregDIESELN/AFor vehicles without a 2010 model year fuel tank retrofit, clean the fuel tank before installing a new pump to prevent contamination and premature pump failure; Use fuel tank cleaning kit FC01 for best results.
2013AudiQ7DIESELN/AFor vehicles without a 2010 model year fuel tank retrofit, clean the fuel tank before installing a new pump to prevent contamination and premature pump failure; Use fuel tank cleaning kit FC01 for best results.
2013VolkswagenTouaregDIESELN/AFor vehicles without a 2010 model year fuel tank retrofit, clean the fuel tank before installing a new pump to prevent contamination and premature pump failure; Use fuel tank cleaning kit FC01 for best results.
2012AudiQ7DIESELN/AFor vehicles without a 2010 model year fuel tank retrofit, clean the fuel tank before installing a new pump to prevent contamination and premature pump failure; Use fuel tank cleaning kit FC01 for best results.
2012VolkswagenTouaregDIESELN/AFor vehicles without a 2010 model year fuel tank retrofit, clean the fuel tank before installing a new pump to prevent contamination and premature pump failure; Use fuel tank cleaning kit FC01 for best results.
2011AudiQ7DIESELN/AFor vehicles without a 2010 model year fuel tank retrofit, clean the fuel tank before installing a new pump to prevent contamination and premature pump failure; Use fuel tank cleaning kit FC01 for best results.
2011VolkswagenTouaregDIESELN/AFor vehicles without a 2010 model year fuel tank retrofit, clean the fuel tank before installing a new pump to prevent contamination and premature pump failure; Use fuel tank cleaning kit FC01 for best results.
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
7P6 919 088 BCFE0697
