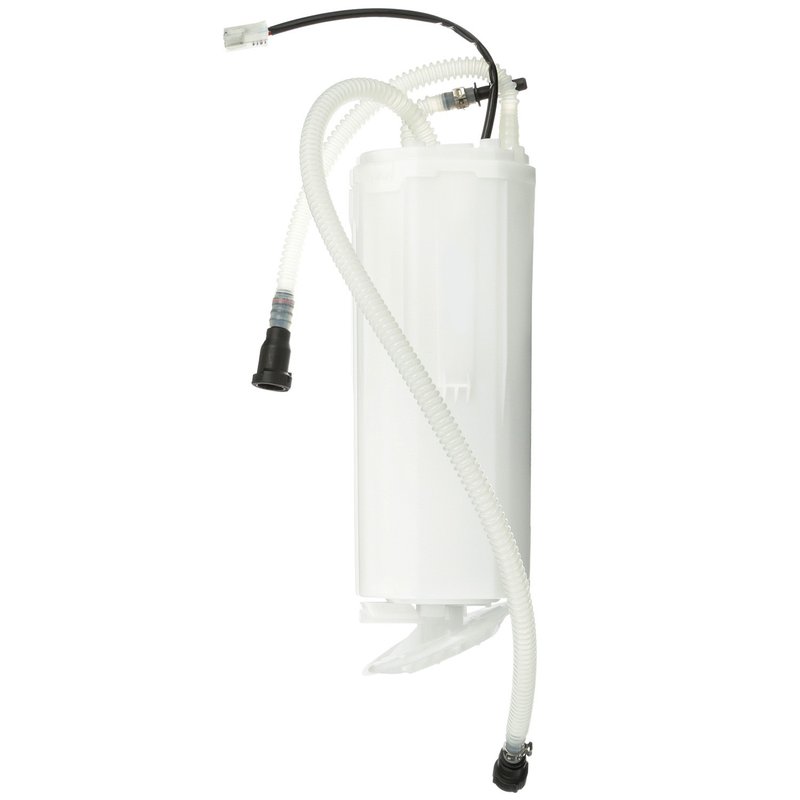

Delphi FE0703 Fuel Pump and Strainer Set - Right

Delphi Fuel Pump and Strainer Set Overview

The Delphi FE0703 fuel pump and strainer set is designed for reliable fuel delivery in select Audi and Volkswagen models. This electric in-tank fuel pump provides consistent pressure and flow, ensuring optimal engine performance for vehicles like the Audi A8 Quattro and Volkswagen Phaeton.

• Electric fuel pump with integrated external strainer
• Compatible with gas fuel systems
• 13.0 volts operating voltage with 10 amps average current draw
• Maximum pressure rating of 138 psi and system pressure of 58 psi
• Outlet outside diameter of 0.375 inches with female quick connect outlet
• Two female pin terminals for electrical connection
• Standard replacement grade for reliable performance
• Includes fuel pump, strainer set, reservoir assembly, and instruction sheet
• Designed for right-side installation in tank

Technical Details and Specifications

The Delphi FE0703 fuel pump and strainer set operates at 13 volts and draws an average current of 10 amps, delivering a flow rating of 26 liters per hour. It features an external strainer inlet type and a female quick connect outlet with a 0.375-inch outside diameter. The pump is designed for in-tank installation on the right side, with two female pin terminals for secure electrical connections. This standard replacement grade pump supports gas fuel systems and maintains a maximum pressure of 138 psi, with a system pressure of 58 psi to meet the demands of Audi A8 Quattro and Volkswagen Phaeton fuel delivery systems.

Compatible Vehicles and Applications

This fuel pump and strainer set is compatible with the following vehicles:

• Audi A8 Quattro
• Volkswagen Phaeton

It is engineered to replace the original equipment fuel pump in these models, ensuring proper fitment and function within the fuel delivery system.

Common Issues Addressed by This Fuel Pump

• Fuel delivery interruptions causing engine hesitation or stalling
• Low fuel pressure affecting engine performance
• Fuel pump noise or failure due to worn components
• Clogged or damaged fuel strainer reducing fuel flow
• Electrical connection problems with pin-type terminals

Installation Notes and Tips

Installation of the Delphi FE0703 fuel pump and strainer set requires removal of the fuel tank or access through the service panel. Ensure the vehicle’s battery is disconnected before beginning work. Verify the correct orientation for right-side in-tank installation and confirm secure connections to the two female pin terminals. Since the gasket or seal is not included, inspect and replace any seals as necessary to prevent leaks. Follow the included instruction sheet carefully for proper assembly and installation procedures.

Quality Assurance and Warranty

Delphi manufactures this fuel pump and strainer set to meet standard replacement specifications, providing dependable performance for Audi and Volkswagen vehicles. While specific warranty details are not provided here, Delphi products typically come with manufacturer-backed warranties covering defects in materials and workmanship. Consult the product packaging or Delphi’s official resources for exact warranty terms.
