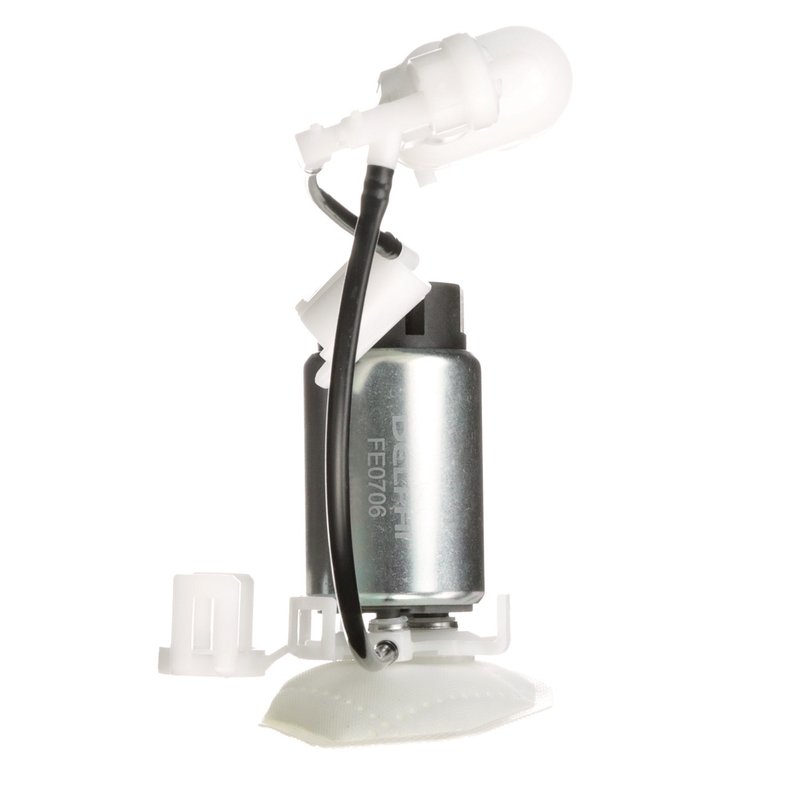

Delphi FE0706 Fuel Pump and Strainer Set

Reliable Fuel Pump and Strainer Set for Toyota RAV4

The Delphi FE0706 fuel pump and strainer set is designed specifically for Toyota RAV4 models requiring a dependable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this set ensures optimal engine performance and fuel efficiency.

• Electric fuel pump with 12.0 voltage operation
• Maximum pressure rating of 120 psi and system pressure of 44 psi
• Includes external strainer for effective fuel filtration
• Outlet outside diameter of 0.375 inches with female quick connect outlet
• Blade-type male terminals with two connections for secure wiring
• Average flow rating of 30 and average current draw of 10 amps
• Standard replacement grade for reliable performance
• In-tank installation with external strainer inlet type
• Package includes fuel pump, strainer set, and instruction sheet

Technical Details and Compatibility

The Delphi FE0706 fuel pump and strainer set is an electric pump designed for gas fuel systems, compatible with Toyota RAV4 vehicles. It features a 0.375-inch outlet outside diameter and a female quick connect outlet type, facilitating straightforward installation. The pump operates at 12 volts and maintains a maximum pressure of 120 psi, with a system pressure of 44 psi to meet the fuel delivery requirements of the RAV4 engine. The included external strainer helps prevent contaminants from entering the fuel system, enhancing longevity and performance. The pump uses blade-type male terminals with two connections, but note that a wiring harness is not included.

Common Applications and Problem Resolution

• Replaces failing or weak fuel pumps causing engine hesitation or stalling
• Addresses low fuel pressure issues affecting engine performance
• Resolves fuel delivery interruptions due to clogged or damaged strainers
• Suitable for restoring fuel system reliability in Toyota RAV4 models
• Helps eliminate fuel pump noise or irregular operation

Installation Notes and Tips

Installation of the Delphi FE0706 fuel pump and strainer set requires removal of the in-tank fuel pump assembly. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. The female quick connect outlet and blade-type terminals allow for secure connections; however, verify terminal compatibility with your vehicle’s wiring harness. Since the wiring harness is not included, reuse the existing harness or source a compatible replacement. Follow the included instruction sheet carefully to maintain proper fuel system sealing and avoid leaks.

Quality Assurance and Warranty

Delphi manufactures the FE0706 fuel pump and strainer set to meet standard replacement grade specifications, ensuring consistent performance and durability. While no specific warranty details are provided, Delphi products typically adhere to industry quality standards. For peace of mind, verify warranty coverage with the point of purchase or Delphi directly.
