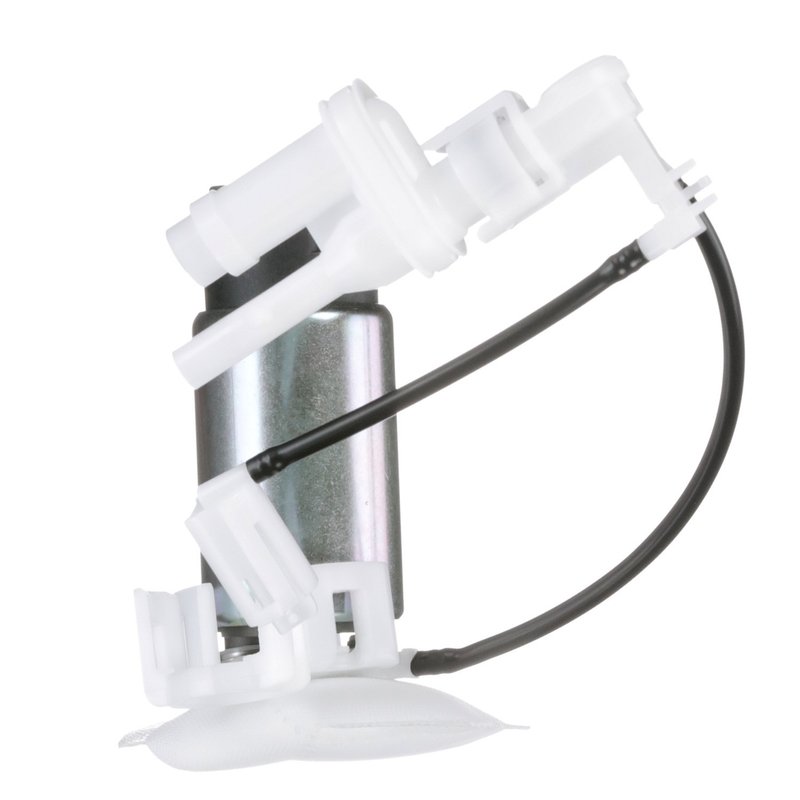

Delphi FE0710 Fuel Pump and Strainer Set

Delphi FE0710 Fuel Pump and Strainer Set Overview

The Delphi FE0710 fuel pump and strainer set is designed for reliable fuel delivery in select Toyota and Scion vehicles. This electric in-tank fuel pump provides consistent pressure and flow to support optimal engine performance in models like the Toyota RAV4, Venza, xB, and xD.

• Electric in-tank fuel pump with external strainer
• Compatible with gasoline fuel systems
• 12.0 volts operating voltage with blade-type male terminals
• Maximum pressure rating of 120 psi and system pressure of 44 psi
• Average flow rating of 38 liters per hour and current draw of 10 amps
• Outlet outside diameter of 0.313 inches with hose bead outlet type
• Includes fuel pump and strainer set with instruction sheet

Technical Details and Specifications

The Delphi FE0710 fuel pump and strainer set operates at 12 volts and is engineered for gasoline fuel systems. It features a blade terminal type with two male terminals for secure electrical connections. The pump is designed as an electric in-tank unit with an external strainer inlet type, ensuring clean fuel delivery by filtering contaminants before entering the pump. The outlet uses a hose bead connection with an outside diameter of 0.313 inches, suitable for compatible fuel lines.

This fuel pump supports a maximum pressure of 120 psi and maintains a system pressure of 44 psi, delivering an average flow rate of 38 liters per hour. The average current draw is approximately 10 amps, aligning with standard electrical system requirements. The set includes both the fuel pump and strainer, along with an instruction sheet to assist with installation.

Compatible Vehicles and Applications

This fuel pump and strainer set is compatible with select Toyota and Scion models, including:

• Toyota RAV4
• Toyota Venza
• Scion xB
• Scion xD

It is designed as a standard replacement part for these vehicles' fuel delivery systems, ensuring proper fit and function when servicing or repairing fuel pump components.

Common Issues Addressed by the Delphi FE0710

• Fuel delivery interruptions causing engine stalling or hesitation
• Low fuel pressure affecting engine performance and fuel efficiency
• Contaminated fuel causing pump or injector damage
• Electrical connection failures due to worn terminals
• Fuel pump noise or failure due to worn internal components

Installation Notes and Tips

Installation of the Delphi FE0710 fuel pump and strainer set requires removal of the fuel tank to access the in-tank pump assembly. Ensure the vehicle’s battery is disconnected before beginning work to prevent electrical hazards. Verify that the blade-type male terminals match the vehicle’s wiring harness connectors. Since the set does not include a wiring harness or gasket, reuse existing components if they are in good condition or source replacements as needed. Follow the included instruction sheet carefully to ensure proper installation and avoid fuel leaks.

Quality Assurance and Warranty

Delphi fuel pumps are manufactured to meet OEM specifications for durability and performance. The FE0710 is a standard replacement grade part designed to restore factory fuel delivery capabilities. While specific warranty details are not provided here, Delphi typically offers limited warranties on their fuel pumps. It is recommended to verify warranty coverage with the point of purchase or Delphi directly.
