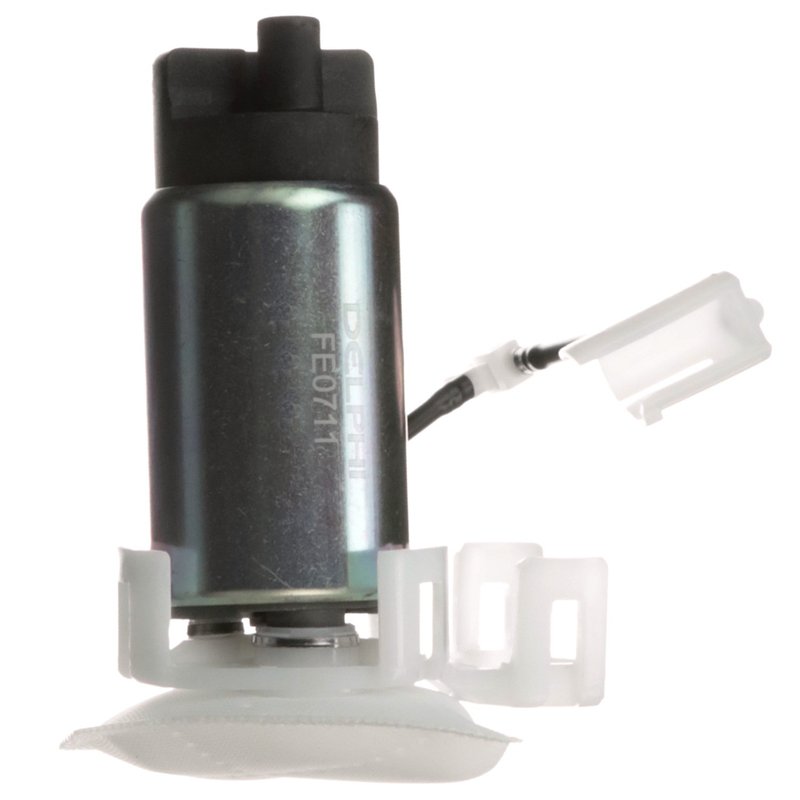

Delphi FE0711 Fuel Pump and Strainer Set

Fuel Pump for Toyota Corolla

The Delphi FE0711 fuel pump and strainer set is a standard replacement for in-tank fuel delivery on select Toyota Corolla models. Built for 12-volt gasoline systems, it supports consistent fuel supply with a 44 psi system pressure rating and a 100 psi maximum pressure rating.

For 2014-2019 Toyota Corolla applications, this in-tank electric fuel pump includes an external strainer and hose bead outlet design for service replacement work. Delphi draws on OE experience and aftermarket coverage across a wide range of vehicles and model years, making the FE0711 a practical choice for restoring fuel delivery performance.

Key Features

• Fits 2014-2019 Toyota Corolla, in tank
• Delphi FE0711 fuel pump and strainer set
• 12.0V electric pump for gasoline fuel systems
• 44 psi system pressure with 100 psi maximum pressure rating
• External strainer included; gasket or seal not included
• Blade terminals, 2-terminal male connection
• Average flow rating of 28 and average current draw of 10
• Outlet outside diameter: 0.313 in.; hose bead outlet type

Detailed Description

The Delphi FE0711 is an in-tank fuel pump and strainer set engineered for direct replacement service on Toyota Corolla fuel systems from 2014 through 2019. It uses a 12-volt electric design for gasoline applications and includes the strainer needed for fuel pickup protection. The pump features a blade terminal connection, male terminals, and a hose bead outlet to support proper fuel line attachment in the tank module.

This part cross-references Toyota OE numbers 23220-0T200 and 23220-0T201, and it also cross-references CFE0711 for the same application. If you are replacing a worn fuel pump on a Toyota Corolla, FE0711 provides a service-focused option built around OE heritage and application coverage.

Common Problems This Part Can Address

• Hard starting caused by weak fuel delivery
• Engine hesitation under load from low fuel pressure
• Fuel pump noise from a worn in-tank unit
• Stalling related to inconsistent gasoline flow
• Poor acceleration from restricted fuel supply

Installation Notes and Tips

Before installing this Toyota Corolla fuel pump, clean the fuel tank to help prevent future seal problems, as noted in the fitment information. Verify electrical connector style, outlet size, and in-tank module configuration before installation. The package includes the fuel pump and strainer set plus an instruction sheet; wiring harness and gasket or seal are not included.

Quality Assurance

Delphi builds aftermarket fuel system parts using OE experience and knowledge developed through supply relationships with major automakers. The FE0711 reflects that OE-based engineering approach for service replacement use on select Toyota Corolla models.
