Delphi FE0775 Fuel Pump and Strainer Set

Delphi FE0775 Fuel Pump Set for Porsche 911

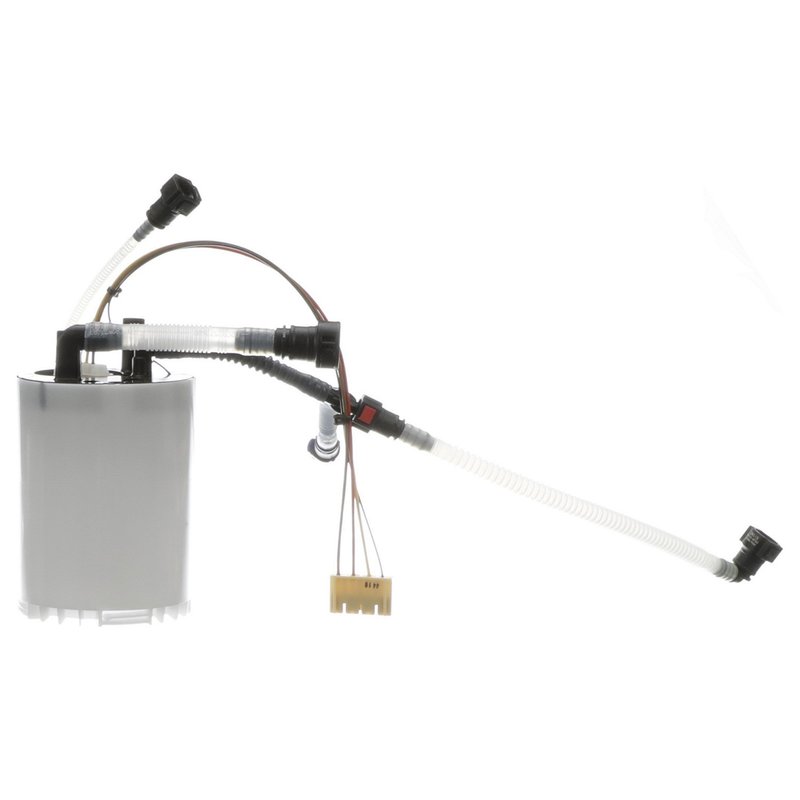

Delphi FE0775 is an in-tank fuel pump and strainer set built for gasoline applications with OE-based engineering. It is a standard replacement fuel pump assembly for select 2013-2019 Porsche 911 models, with a 12-volt electric design, quick-connect outlet, and included strainer for service-ready fuel delivery.

Key Features

• In-tank electric fuel pump and strainer set
• 12.0-volt gasoline application
• Maximum pressure: 77.0 psi; system pressure: 70 psi
• Quick-connect outlet with 0.313 in. outlet outside diameter
• 4 female blade terminals
• Average current draw: 10 amps
• Standard replacement grade for OE-style service
• Package includes fuel pump and strainer set plus instruction sheet

OE-Based Design and Fitment

Delphi draws on more than a century of OE experience, and that background is reflected in the FE0775 fuel pump and strainer set. This part number FE0775 is engineered for in-tank gasoline fuel delivery and is listed for 2013-2019 Porsche 911 applications. If you are searching for a Porsche 911 fuel pump replacement, Delphi FE0775 provides the core components needed for a direct-service repair on the fuel system.

This part cross-references Porsche (e.g., 991 620 145 00, CFE0775) for the same application.

Common Problems This Part Can Address

• Hard starting caused by weak fuel pressure
• Engine hesitation from inconsistent fuel delivery
• Fuel starvation under load
• Noisy or failing in-tank pump operation
• Service replacement after tank contamination or pump wear

Installation Notes and Tips

Fits 2013-2019 Porsche 911, N/A. Clean the fuel tank before installing the fuel pump to prevent future seal problems. Verify electrical terminals, outlet connection type, and system pressure requirements before installation. The gasket or seal and wiring harness are not included, so reuse or source those components as needed for the repair.

Quality Assurance

Delphi builds aftermarket fuel system parts using OE heritage and application knowledge developed through long-term supplier experience with major automakers. FE0775 is a standard replacement fuel pump and strainer set intended to meet the demands of gasoline fuel delivery service on select Porsche 911 models.
