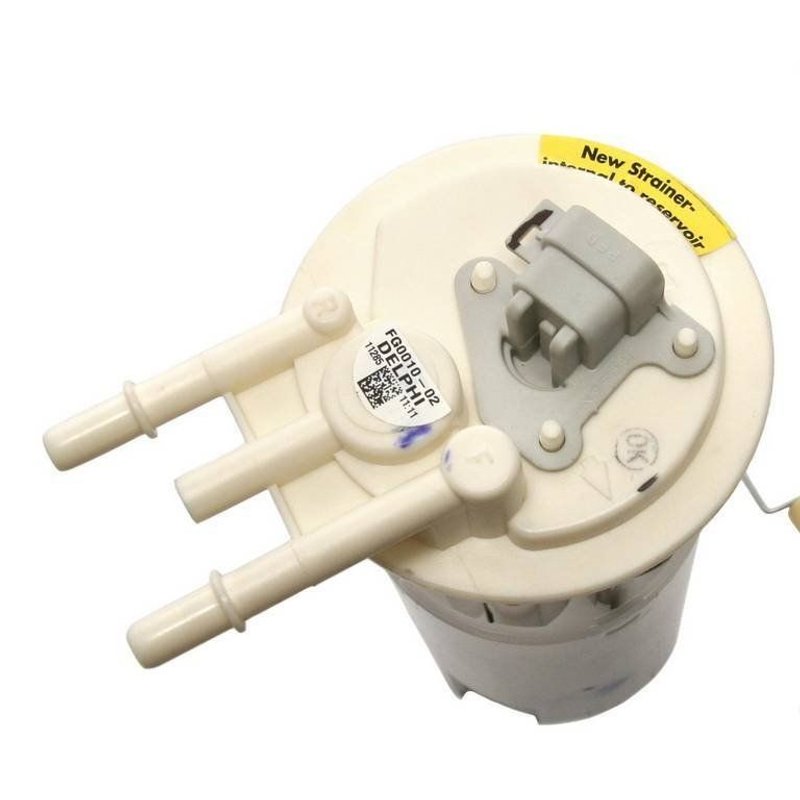

Delphi FG0010 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Cadillac Vehicles

The Delphi FG0010 fuel pump module assembly is designed specifically for Cadillac DeVille, Eldorado, and Seville models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings for optimal engine performance.

• Outlet outside diameter: 0.375 inches for precise fuel line connection
• Operates at 13.0 volts with an average current draw of 7 amps
• Compatible with gasoline fuel type
• Maximum pressure rating of 109 psi and system pressure of 44 psi
• Includes internal strainer and fuel level sender assembly with float arm
• Five male pin terminals with quick connect outlet type and three outlet ports
• Gasket or seal included for secure installation
• Standard replacement grade for dependable performance

Technical Overview of Delphi FG0010 Fuel Pump Module

The Delphi FG0010 fuel pump module assembly is an electric in-tank pump engineered to meet the fuel delivery requirements of Cadillac DeVille, Eldorado, and Seville vehicles. It features an internal strainer inlet type that helps filter fuel before it reaches the pump, reducing contaminants and protecting the fuel system. The module includes a fuel level sender assembly with a float arm, providing accurate fuel gauge readings. The pump operates at 13 volts and maintains a system pressure of 44 psi, with a maximum pressure capacity of 109 psi, ensuring consistent fuel flow rated at 20 gallons per hour. The five male pin terminals facilitate secure electrical connections, while the quick connect outlet type with three outlets supports efficient fuel distribution. A gasket or seal is included to prevent leaks during installation.

Compatible Cadillac Models and Applications

This fuel pump module assembly is compatible with the following Cadillac models:

• Cadillac DeVille
• Cadillac Eldorado
• Cadillac Seville

It is designed to replace the original fuel pump module in these vehicles, restoring proper fuel delivery and fuel level sensing functions.

Common Issues Addressed by the FG0010 Fuel Pump Module

• Intermittent or complete fuel delivery failure causing engine stalling or no-start conditions
• Inaccurate fuel gauge readings due to faulty fuel level sender assembly
• Fuel pump noise or irregular operation indicating wear or internal strainer clogging
• Loss of fuel pressure affecting engine performance and drivability
• Fuel leaks caused by damaged seals or gaskets in the fuel pump module

Installation Notes and Tips

• Ensure the vehicle’s fuel tank is properly drained and depressurized before removal
• Handle the fuel pump module carefully to avoid damage to the float arm and electrical terminals
• Replace the included gasket or seal to maintain a secure, leak-free installation
• Verify electrical connections match the five male pin terminals for proper operation
• Consult the vehicle’s service manual for specific removal and installation procedures

Quality Assurance and Warranty Information

The Delphi FG0010 fuel pump module assembly is manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. It undergoes rigorous testing to verify electrical resistance, pressure ratings, and flow capacity. This product includes a gasket or seal and an instruction sheet to assist with installation. Warranty coverage details should be confirmed with the parts provider or manufacturer documentation.
