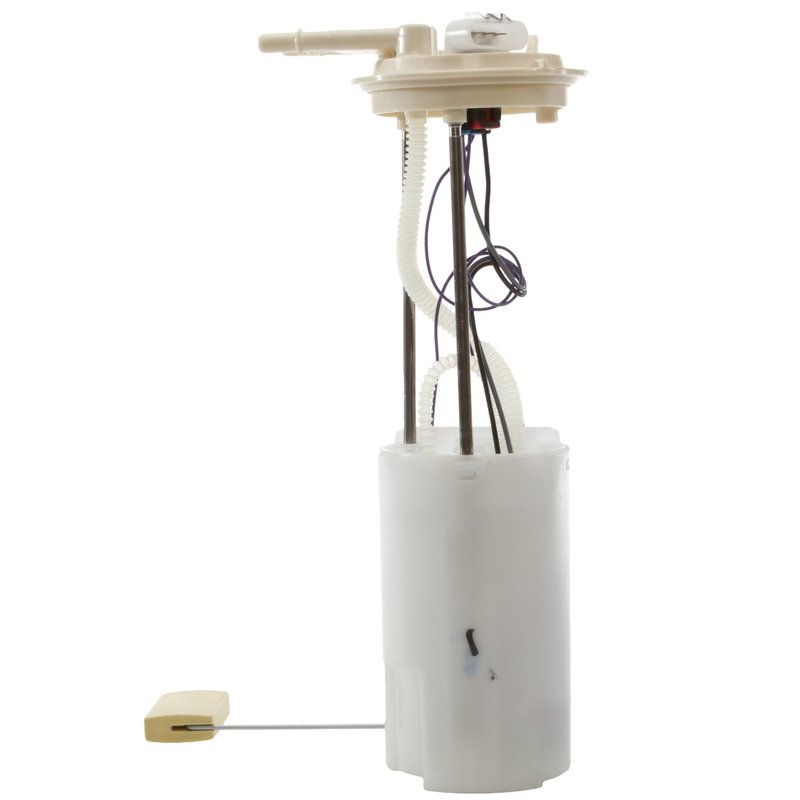

Delphi FG0024 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Vans

The Delphi FG0024 fuel pump module assembly is designed specifically for in-tank installation in Chevrolet Express and GMC Savana vans. Engineered to deliver consistent fuel flow and accurate fuel level readings, this electric fuel pump module supports gas-powered engines with precise specifications to maintain optimal performance.

Key Features of Delphi FG0024 Fuel Pump Module Assembly

• Outlet outside diameter: 0.375 inches for secure fuel line connection
• Operates at 13.0 volts with an average current draw of 10 amps
• Designed for gasoline fuel systems with a maximum pressure rating of 109 psi
• Includes internal strainer and fuel level sender assembly for accurate fuel monitoring
• Equipped with four male blade terminals and quick connect outlet type
• Comes with gasket/seal and wire harness with splices for installation
• Standard replacement grade suitable for Chevrolet Express 1500, 2500, 3500 and GMC Savana 1500, 2500, 3500 models
• Average flow rating of 23 liters per hour and system pressure of 62 psi

Detailed Description of the Delphi FG0024 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG0024) is an electric in-tank pump designed to meet the fuel delivery requirements of Chevrolet Express and GMC Savana vans. The module features an internal strainer inlet and a quick connect outlet with two outlets to ensure efficient fuel flow. The included fuel level sender assembly provides reliable fuel level readings, while the four male blade terminals facilitate secure electrical connections. The unit operates at 13 volts and maintains system pressure at 62 psi, with a maximum pressure capacity of 109 psi, supporting consistent engine performance under various driving conditions.

Applications and Common Issues Addressed

• Replacement for failing or noisy fuel pumps in Chevrolet Express and GMC Savana vans
• Resolves fuel delivery interruptions causing engine hesitation or stalling
• Corrects inaccurate fuel gauge readings due to faulty fuel level sender assemblies
• Addresses fuel leaks by providing a new gasket/seal included with the module
• Improves fuel system pressure stability for smoother engine operation

Installation Notes and Tips

• Compatible with Chevrolet Express 1500, 2500, 3500 and GMC Savana 1500, 2500, 3500 models
• Ensure the vehicle’s fuel tank is properly drained and depressurized before removal
• Use the included gasket/seal to prevent fuel leaks during installation
• Verify electrical connections match the four male blade terminals for proper function
• Check for any damage to fuel lines and replace if necessary to maintain system integrity

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for durability and performance. The FG0024 is a standard replacement grade part, backed by Delphi’s quality control processes. While specific warranty terms may vary, Delphi typically offers coverage against defects in materials and workmanship to ensure reliable operation in Chevrolet Express and GMC Savana vehicles.
