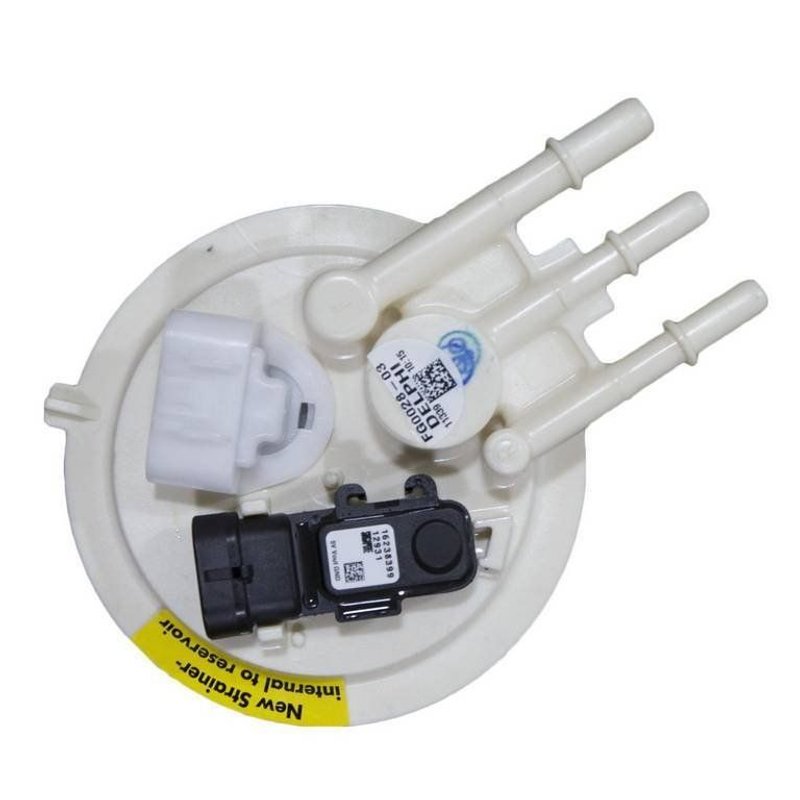

Delphi FG0028 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet S10 and GMC Sonoma

The Delphi FG0028 fuel pump module assembly is designed specifically for in-tank installation in Chevrolet S10 and GMC Sonoma models. Engineered to deliver consistent fuel flow and pressure, this electric fuel pump module supports gas fuel systems with precise performance and durability.

Key Features of Delphi FG0028 Fuel Pump Module Assembly

• Outlet outside diameter: 0.375 inches for secure fuel line connection
• Operates at 13.0 volts with an average current draw of 10 amps
• Designed for gasoline fuel systems with a maximum pressure rating of 109 psi
• Includes internal strainer and fuel level sender assembly for accurate fuel monitoring
• Equipped with 4 male blade terminals and quick connect outlet type
• Comes with gasket/seal and wire harness with splices for installation
• Standard replacement grade part with system pressure of 62 psi and vapor pressure sensor included

Detailed Description of the Delphi FG0028 Fuel Pump Module

This Delphi fuel pump module assembly (part number FG0028) is an electric pump designed for in-tank installation, compatible with Chevrolet S10 and GMC Sonoma vehicles. It features an internal strainer inlet and a quick connect outlet with three outlets to ensure efficient fuel delivery. The module includes a fuel level sender assembly with resistance values ranging from 0.1 ohms (empty) to 90 ohms (full), providing accurate fuel gauge readings. The pump operates at 13 volts and maintains a system pressure of 62 psi, with a maximum pressure capacity of 109 psi, suitable for maintaining optimal engine performance. The assembly includes a gasket or seal to prevent leaks and a wire harness with splices for straightforward electrical connections.

Common Applications and Issues Addressed

• Replacement for failing or noisy fuel pumps in Chevrolet S10 and GMC Sonoma
• Resolves inconsistent fuel pressure causing engine hesitation or stalling
• Fixes inaccurate fuel level readings due to faulty sender assemblies
• Addresses fuel delivery interruptions caused by clogged or damaged strainers
• Prevents fuel leaks with included gasket/seal for secure installation

Installation Notes and Tips

• Ensure vehicle compatibility with Chevrolet S10 and GMC Sonoma models before installation
• Disconnect the battery and relieve fuel system pressure prior to removal
• Use the included gasket/seal to prevent fuel leaks during reassembly
• Verify all electrical connections are secure on the 4 male blade terminals
• Check for proper seating of the internal strainer and quick connect outlets

Quality Assurance and Warranty Information

The Delphi FG0028 fuel pump module assembly is manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. It includes a vapor pressure sensor to support emissions control systems. Delphi provides a limited warranty covering defects in materials and workmanship, offering confidence in the product’s quality for Chevrolet S10 and GMC Sonoma fuel system repairs.
