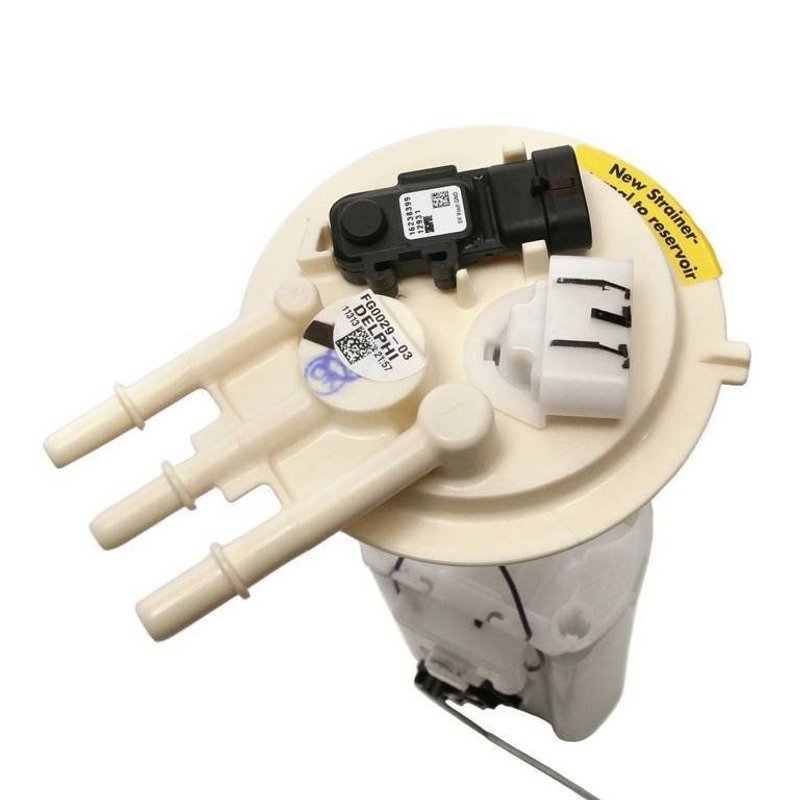

Delphi FG0029 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0029 fuel pump module assembly is designed for reliable fuel delivery in Chevrolet Blazer and GMC Jimmy vehicles. This electric in-tank fuel pump module ensures consistent fuel flow and pressure for optimal engine performance.

• Compatible with Chevrolet Blazer and GMC Jimmy models
• Electric pump type with 13.0 voltage rating
• Includes fuel level sender assembly and internal strainer
• Maximum pressure of 109 psi and system pressure of 62 psi
• Quick connect outlet with 0.375 inch outside diameter
• Includes gasket or seal and wire harness with splices
• Blade-type male terminals with 4 terminal quantity
• Average flow rating of 18 and average current draw of 10 amps
• Vapor pressure sensor included for accurate fuel system monitoring

Technical Details and Features

The Delphi FG0029 fuel pump module assembly operates at 13 volts and is designed specifically for gasoline fuel systems. It features an internal strainer inlet type and a quick connect outlet type with three outlets, ensuring efficient fuel delivery. The module includes a fuel level sender assembly with a float arm, allowing accurate fuel level readings. The blade terminal type with four male terminals supports secure electrical connections. This module maintains a system pressure of 62 psi and can handle a maximum pressure of 109 psi, suitable for the fuel demands of Chevrolet Blazer and GMC Jimmy vehicles.

Applications and Problem Resolution

This fuel pump module assembly is used to replace faulty or worn fuel pumps in Chevrolet Blazer and GMC Jimmy models. It addresses common fuel system issues such as:

• Inconsistent fuel pressure causing engine performance problems
• Fuel pump failure leading to engine stalling or no-start conditions
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel delivery interruptions caused by clogged strainers
• Electrical connection issues with damaged terminals or wiring

Installation Notes and Tips

When installing the Delphi FG0029 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. The included gasket or seal should be properly seated to prevent leaks. Verify all four blade terminals are securely connected to avoid electrical faults. The quick connect outlets simplify fuel line attachment, but confirm all connections are tight. It is recommended to inspect the fuel tank for debris before installation to prolong pump life.

Quality Assurance and Warranty

Delphi provides this fuel pump module assembly as a standard replacement part, manufactured to meet OEM specifications for Chevrolet Blazer and GMC Jimmy vehicles. The product includes a vapor pressure sensor for enhanced fuel system diagnostics. While specific warranty details are not provided here, Delphi parts typically come with a limited warranty covering defects in materials and workmanship.
