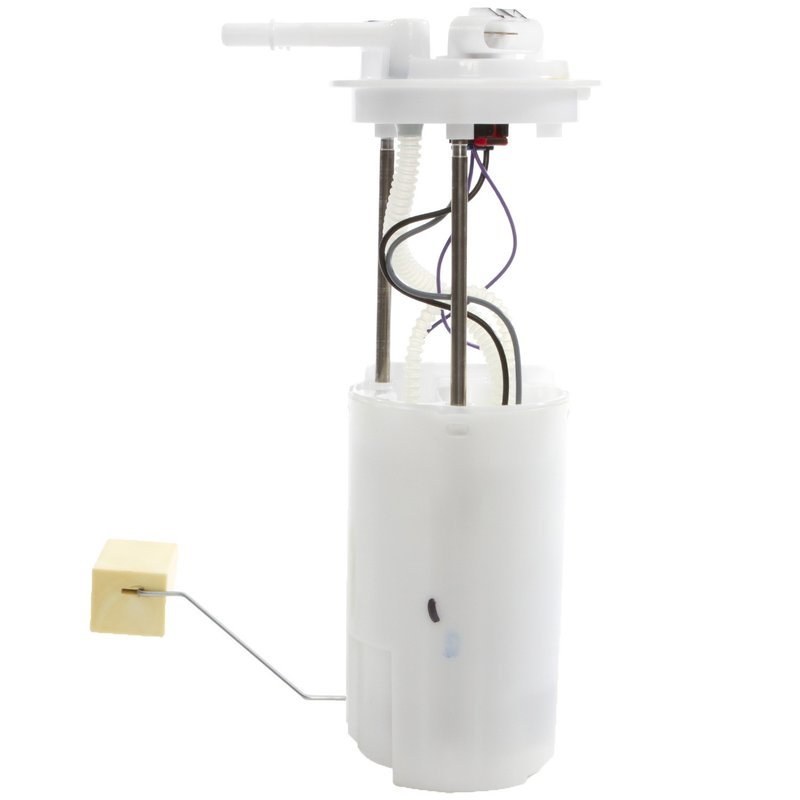

Delphi FG0031 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Buick Riviera

The Delphi FG0031 fuel pump module assembly is designed specifically for Buick Riviera models requiring a dependable in-tank electric fuel pump. Engineered to deliver consistent fuel flow and pressure, this module supports optimal engine performance and fuel efficiency.

• Electric fuel pump with 13.0 voltage operation
• In-tank design with internal strainer for clean fuel delivery
• Includes fuel level sender assembly with float arm
• Quick connect outlet type with 0.375 inch outside diameter
• Maximum pressure rating of 109 psi and system pressure of 51 psi
• Four male blade terminals for secure electrical connections
• Comes with gasket/seal and wire harness splices for installation
• Average flow rating of 29 and average current draw of 7 amps

Technical Details and Features

The Delphi FG0031 fuel pump module assembly operates at 13 volts and is designed for gasoline fuel systems. Its in-tank electric pump includes an internal strainer to prevent contaminants from entering the fuel system, enhancing longevity and reliability. The module features two quick connect outlets with a 0.375 inch outside diameter, facilitating straightforward fuel line connections. The assembly includes a fuel level sender with a float arm, providing accurate fuel gauge readings. With four male blade terminals, the electrical connections are secure and compatible with Buick Riviera wiring harnesses. The package contains the fuel pump module assembly, seal, splices, and wire harness, ensuring a complete replacement solution.

Compatible Buick Riviera Fuel Pump Replacement

This fuel pump module assembly is compatible with Buick Riviera vehicles requiring a standard replacement fuel pump. The FG0031 part number ensures precise fitment and function, maintaining factory specifications for fuel delivery and pressure. It is suitable for models that utilize an in-tank electric fuel pump system with a quick connect outlet and integrated fuel level sender.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Replaces faulty or noisy fuel pumps
• Corrects inaccurate fuel gauge readings due to sender failure
• Addresses low fuel pressure problems affecting engine performance
• Prevents fuel contamination with internal strainer inclusion

Installation Notes and Tips

When installing the Delphi FG0031 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. The included gasket/seal should be properly seated to prevent leaks. Verify electrical connections match the four male blade terminals and secure the wire harness splices as provided. The quick connect outlets simplify fuel line attachment, but confirm all fittings are tight. It is recommended to inspect the fuel tank for debris before installation to maximize pump longevity.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for durability and performance. The FG0031 is a standard replacement grade part designed to restore factory fuel system operation. While specific warranty details may vary, Delphi products typically include a limited warranty covering defects in materials and workmanship. Consult product documentation or supplier information for exact warranty terms.
