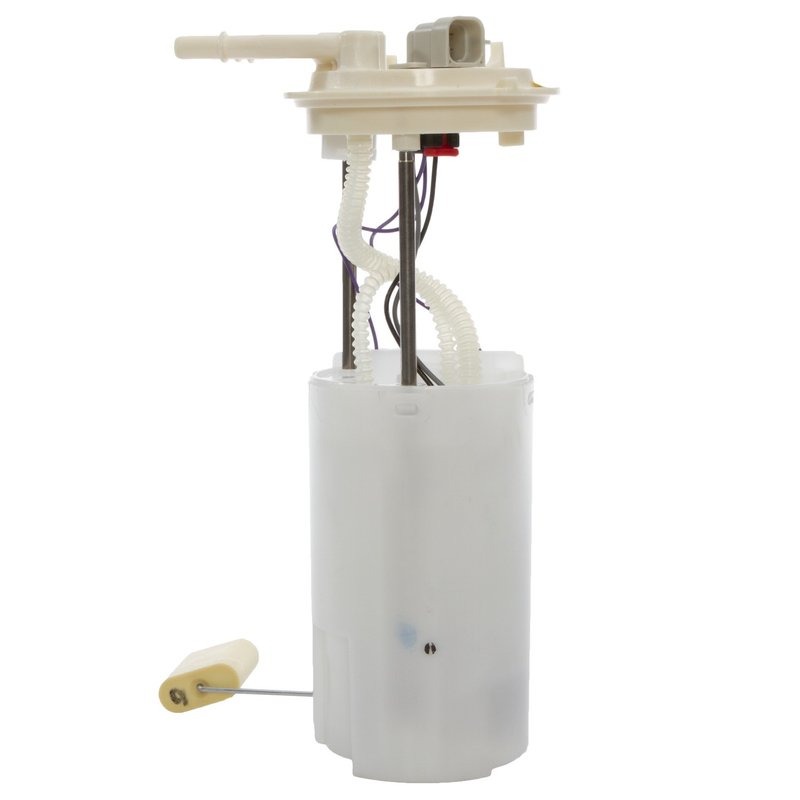

Delphi FG0045 Fuel Pump Module Assembly
| Brand | Delphi FG0045 |
|---|---|
| Average Current Draw | 9 |
| Average Flow Rating | 26 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 109.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 3 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 40.0 |
| Resistance Ohms Full | 250.0 |
| Strainer Included | Yes |
| System Pressure | 62 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | No |
| Voltage | 13.0 |
| Fits | Buick · 1 vehicle |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
OE heritage. Built with 100 years of OE experience and supplier knowledge.
Complete module. Includes a seal, strainer, float arm, and wire harness.
Cross-references 67345, 19180095 and 25121735 for the same application. See all 10.
Fuel Pump Module Assembly for 1997 Buick Regal
Delphi FG0045 is an in-tank fuel pump module assembly for the 1997 Buick Regal. It combines the pump, fuel level sender assembly, strainer, seal, and wiring-related components needed for a direct replacement service on gas applications.
Key Features
- Electric in-tank fuel pump module assembly for gasoline systems
- Maximum pressure rating of 109.0 and system pressure of 62 psi
- Average flow rating of 26 with an average current draw of 9
- Fuel level sender assembly included with resistance range of 40.0 ohms empty to 250.0 ohms full
- Quick-connect outlet type with three outlets and 0.375 in. outlet outside diameter
- Gasket or seal included, along with strainer, float arm, splices, wire harness, and instruction sheet
- Standard replacement grade for service on OE-style fuel delivery systems
Detailed Description
Built from Delphi’s OE heritage and fuel system experience, FG0045 is engineered as a replacement fuel pump module assembly for the 1997 Buick Regal. It is an in-tank, electric gas fuel pump module with a pin-style, male terminal design and a 4-terminal connection layout. The assembly includes the fuel level sender and internal strainer, helping restore fuel delivery and tank level reporting in one service part. Delphi FG0045 is also a practical choice when replacing a worn module on a 1997 Buick Regal that needs stable pressure, quick-connect plumbing, and OE-style fitment.
This part cross-references Delphi DFG0045 and AC Delco 19180095 for the same application.
What It Helps Fix
- Hard starting caused by weak fuel pressure
- Engine stalling from inconsistent fuel delivery
- Incorrect or erratic fuel gauge readings from a failing sender
- Fuel starvation under load from a worn pump module
- Noise or performance issues from an aging in-tank pump assembly
Installation Notes and Tips
Compatible With 1997 Buick Regal, in-tank fuel pump module service. Clean the fuel tank before installing the fuel pump to prevent future seal problems, as noted in the fitment data. Verify connector style, outlet configuration, and pressure requirements before installation. Use the included seal during reassembly and confirm all quick-connect fittings are fully seated.
Quality Assurance
Delphi draws on more than a century of OE experience and supplier knowledge used by major automakers. FG0045 is built as a standard replacement fuel pump module assembly with OE-informed design and application coverage for service work on the 1997 Buick Regal.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1997 | Buick | Regal | GS | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
