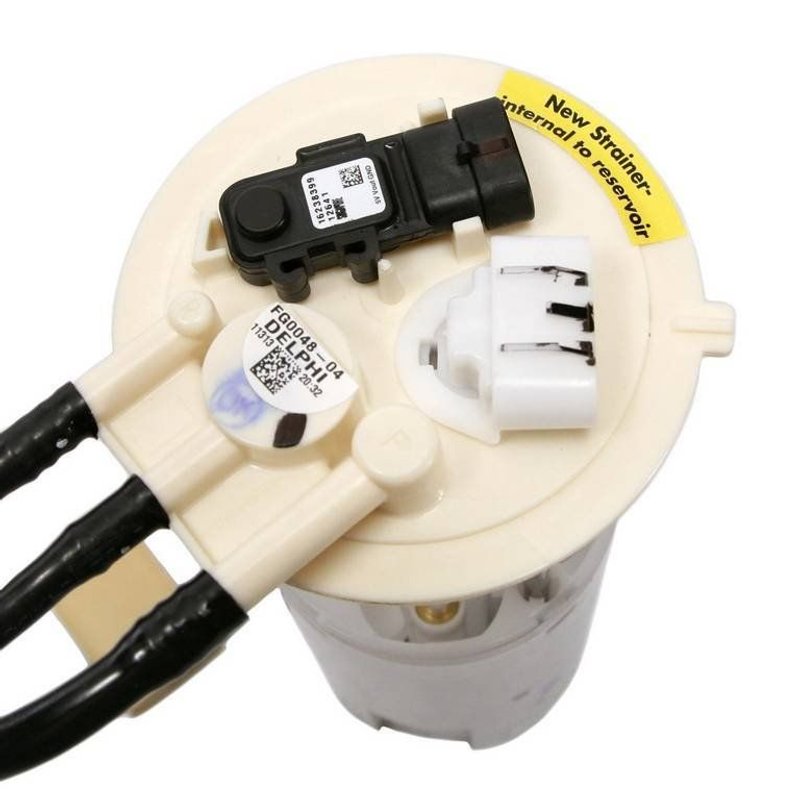

Delphi FG0048 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0048 fuel pump module assembly is designed for reliable fuel delivery in select Chevrolet and Oldsmobile vehicles. Engineered as an in-tank electric fuel pump, it supports gas fuel systems with precise flow and pressure control to maintain optimal engine performance.

• Compatible with Chevrolet Malibu and Oldsmobile Cutlass models
• Electric in-tank fuel pump module assembly with integrated fuel level sender
• Operates at 13.0 volts with an average current draw of 7 amps
• Maximum pressure rating of 109 psi and system pressure of 44 psi
• Includes internal strainer and gasket for secure installation
• Features 4 male blade terminals and 3 female quick connect outlets (0.375" diameter)
• Standard replacement grade with vapor pressure sensor included

Technical Specifications and Features

The Delphi FG0048 fuel pump module assembly is built to meet the fuel delivery requirements of gas-powered Chevrolet Malibu and Oldsmobile Cutlass vehicles. This electric pump module operates at 13 volts and delivers an average flow rating of 12 gallons per hour, ensuring consistent fuel supply under various driving conditions. The module includes an internal strainer to prevent debris from entering the fuel system and a fuel level sender assembly for accurate fuel gauge readings.

The assembly features four male blade terminals and three female quick connect outlets with a 0.375-inch outside diameter, facilitating straightforward electrical and fuel line connections. It is designed for in-tank installation, which helps reduce noise and improve fuel system efficiency. The module does not include a regulator or lock ring but comes with a gasket or seal to ensure a proper fit and prevent leaks.

Applications and Problem Resolution

This fuel pump module assembly is compatible with Chevrolet Malibu and Oldsmobile Cutlass models requiring a reliable replacement for their in-tank fuel pump. It addresses common fuel system issues such as:

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender units
• Fuel pressure inconsistencies affecting engine performance
• Fuel contamination caused by damaged or missing strainers
• Electrical connection problems with worn or corroded terminals

Installation Notes and Tips

• Ensure vehicle compatibility with Chevrolet Malibu or Oldsmobile Cutlass before installation
• Disconnect the battery and relieve fuel system pressure prior to removal
• Handle the fuel pump module carefully to avoid damage to the internal strainer and fuel level sender
• Replace the gasket or seal included with the assembly to prevent leaks
• Verify all electrical connections are secure on the four male blade terminals

Quality Assurance and Warranty

The Delphi FG0048 fuel pump module assembly is manufactured to meet standard replacement grade specifications, ensuring dependable performance and durability. It includes a vapor pressure sensor to support emissions control systems. Delphi products typically come with a limited warranty covering defects in materials and workmanship; please refer to the specific warranty terms provided at purchase for details.
