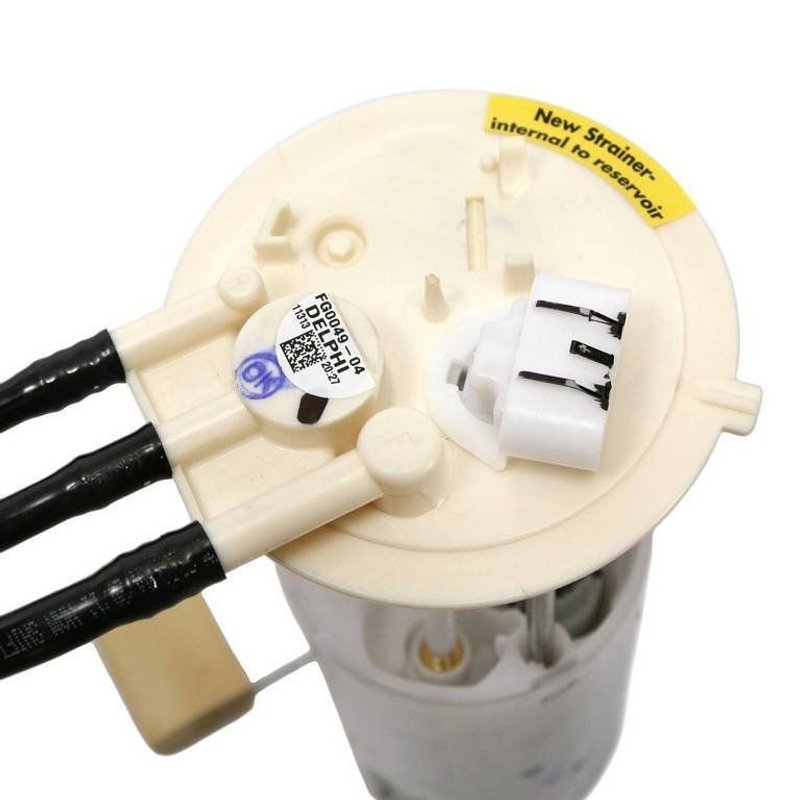

Delphi FG0049 Fuel Pump Module Assembly

Fuel Pump Module Assembly for 1995 Cavalier and Sunfire

The Delphi FG0049 fuel pump module assembly is a standard replacement for select 1995 Chevrolet Cavalier and Pontiac Sunfire applications. Built from Delphi’s OE-focused fuel system experience, it combines the pump, fuel level sender, strainer, seal, and wiring-related components needed for a direct in-tank service replacement.

Key Features

• In-tank electric fuel pump module assembly for gasoline applications
• System pressure rated at 44 psi with a maximum pressure of 109.0
• Fuel level sender assembly included for accurate tank level reporting
• Internal strainer and included fuel strainer help support clean fuel delivery
• Female quick-connect outlet with 3 outlet ports and 0.375 in. outlet outside diameter
• Blade terminals, 4 terminal quantity, male terminal gender
• Gasket or seal included for service replacement
• Average current draw of 7 and average flow rating of 12

Detailed Description

Delphi FG0049 is a fuel pump module assembly engineered for in-tank gasoline fuel delivery on select 1995 Chevrolet Cavalier and Pontiac Sunfire models. It includes the fuel pump module assembly with float arm, seal, splices, wire harness, and instruction sheet, along with an integrated fuel level sender assembly. Delphi’s OE heritage and broad aftermarket coverage support a service part built around original-equipment knowledge and fitment expectations.

This part cross-references Four Seasons 67324 for the same application. The FG0049 part number is also commonly referenced in interchange listings for related fuel pump module applications, including FG0049.

What It Helps Address

• Hard starting caused by weak fuel pressure
• Engine stalling from inconsistent fuel delivery
• Fuel gauge readings that no longer track tank level correctly
• Low-flow conditions from a worn in-tank pump
• Fuel system service needs after tank contamination

Installation Notes and Tips

Fits 1995 Chevrolet Cavalier, N/A. Fits 1995 Pontiac Sunfire, N/A. Clean the fuel tank before installing the pump to reduce the risk of future seal problems. Verify connector style, outlet configuration, and system pressure requirements before installation. Because this is an in-tank module, access is typically through the fuel tank service opening or by lowering the tank, depending on vehicle configuration.

Quality Assurance

Delphi builds this replacement fuel pump module using OE-based fuel system knowledge developed through long-term supplier experience with major automakers. The FG0049 is a standard replacement part intended to restore fuel delivery and sender function to the specified applications.
