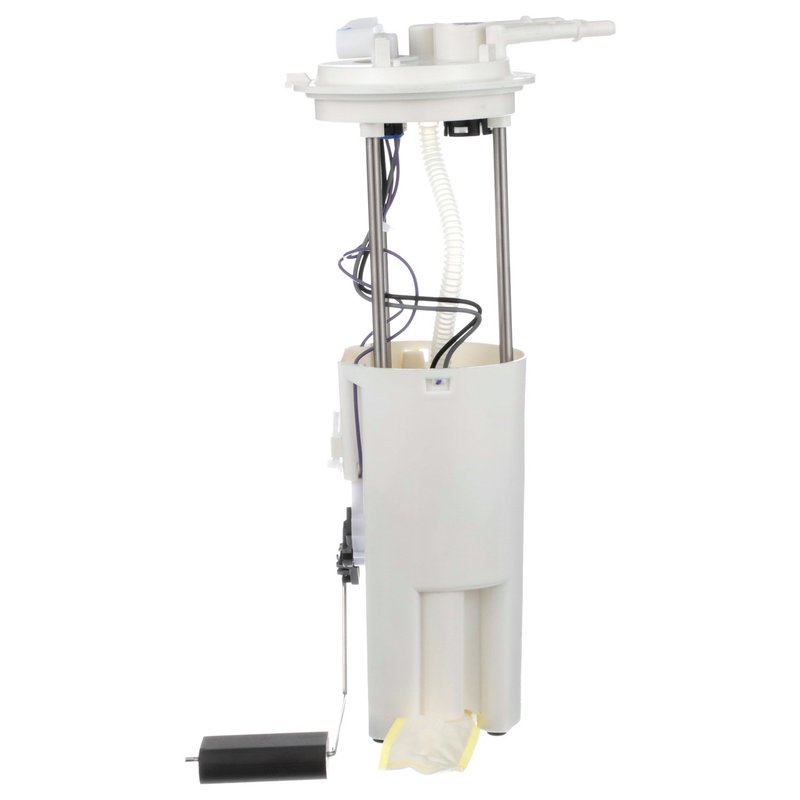

Delphi FG0059 Fuel Pump Module Assembly
| Brand | Delphi FG0059 |
|---|---|
| Average Current Draw | 10 |
| Average Flow Rating | 32 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | Internal |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 109.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 3 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Splices, Wire Harness, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 40.0 |
| Resistance Ohms Full | 250.0 |
| Strainer Included | Yes |
| System Pressure | 62 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Vapor Pressure Sensor | No |
| Voltage | 13.0 |
| Fits | Chevrolet and GMC · 4 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
OE heritage. Built with 100 years of OE experience and supplier knowledge.
Complete assembly. Includes float arm, seal, splices, wire harness, and instructions.
Cross-references Airtex Fuel Pumps E3969M, Carter P74798M and Spectra Premium SP6100M for the same application. See all 9.
Delphi FG0059 Fuel Pump Module Assembly
Delphi FG0059 is an in-tank electric fuel pump module assembly for gas applications, built for 1998-1999 Chevrolet P30 and 1998-1999 GMC P3500 school bus package vehicles. It combines the pump, fuel level sender assembly, strainer, gasket or seal, float arm, wire harness, splices, and instruction sheet in one OE-style replacement package.
Key Features
- In-tank electric fuel pump module assembly for gasoline systems
- Maximum pressure: 109.0 psi; system pressure: 62 psi
- Average flow rating: 32
- Voltage: 13.0; average current draw: 10
- Fuel level sender assembly included with resistance range of 40.0 ohms empty to 250.0 ohms full
- Quick-connect outlet type with 3 outlets and 0.375 in. outlet outside diameter
- Blade terminals, male terminal gender, 4 terminal quantity
- Strainer and gasket or seal included
- Standard replacement fuel pump module assembly
Detailed Description
Delphi FG0059 fuel pump module assembly is engineered for direct replacement service on 1998-1999 Chevrolet P30 and 1998-1999 GMC P3500 school bus package applications. Delphi draws on OE experience and supplier knowledge from decades of original-equipment development, bringing that background into an aftermarket fuel pump module built for gasoline fuel delivery, in-tank mounting, and consistent system pressure. This part number, FG0059, is a practical choice when replacing a worn fuel pump module assembly on Chevrolet P30 or GMC P3500 vehicles that require an integrated fuel level sender and quick-connect outlet configuration.
This part cross-references Airtex Fuel Pumps E3969M and Carter P74798M for the same application.
Common Reasons for Replacement
- Hard starting or extended cranking caused by weak fuel delivery
- Loss of fuel pressure under load
- Inaccurate fuel gauge readings from a failing sender assembly
- Engine stalling related to intermittent pump operation
- Fuel starvation from a restricted or worn in-tank pump module
Installation Notes and Tips
Compatible with 1998-1999 Chevrolet P30 and 1998-1999 GMC P3500, N/A, with School Bus Package. Delphi notes that fuel tank contamination is a leading cause of premature fuel pump failure, so the fuel tank should be cleaned before installing the replacement module. Use of fuel tank cleaning kit FC01 is recommended. Verify connector style, outlet configuration, and sender resistance before installation, and confirm the tank is clean to protect the new FG0059 fuel pump module assembly.
Quality Assurance
Delphi builds this fuel pump module assembly using OE heritage and application knowledge developed through long-term original-equipment supply experience. The FG0059 is a standard replacement part designed to meet the needs of the listed Chevrolet P30 and GMC P3500 applications with the specified fuel delivery and sender characteristics.
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Chevrolet | P30 | GAS | N/A | with School Bus Package; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | GMC | P3500 | GAS | N/A | with School Bus Package; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1998 | Chevrolet | P30 | GAS | N/A | with School Bus Package; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1998 | GMC | P3500 | GAS | N/A | with School Bus Package; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
