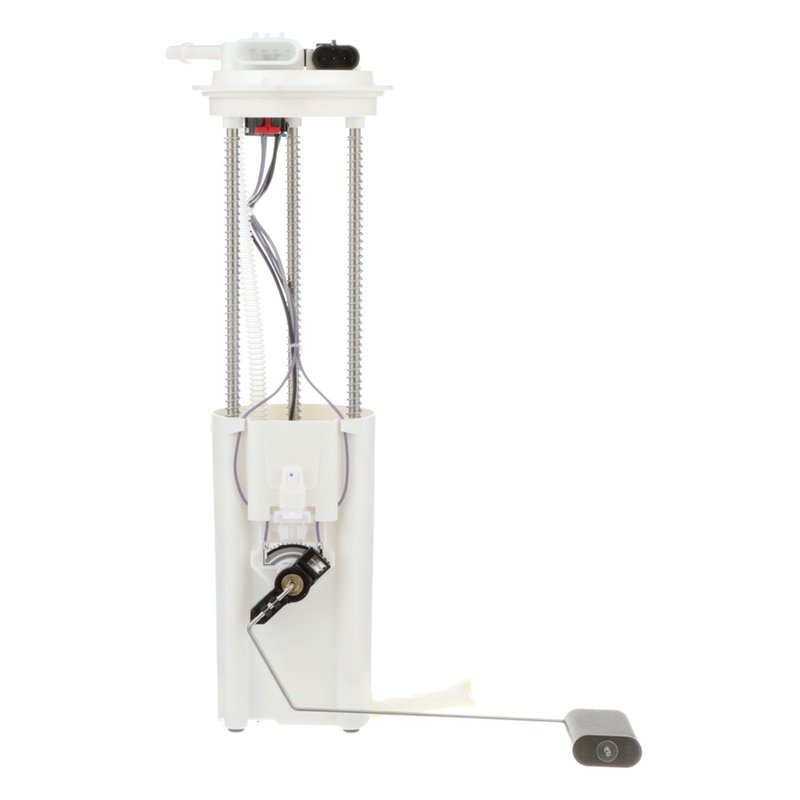

Delphi FG0060 Fuel Pump Module Assembly

Delphi FG0060 Fuel Pump Module Assembly

The Delphi FG0060 fuel pump module assembly is a standard replacement for select gas-powered Chevrolet P30 and GMC P3500 applications. Built with OE heritage and Delphi’s long history supplying automakers, it combines the pump, fuel level sender, strainer, seal, and harness-related components needed for a direct fuel system service.

Compatible with 1998-1999 Chevrolet P30 and 1998-1999 GMC P3500 models with California Emission System and without School Bus Package, this in-tank electric module is specified for 62 psi system pressure and up to 109 psi maximum pressure.

Key Features

• Delphi FG0060 fuel pump module assembly for in-tank gasoline applications
• Electric pump with 13.0V operating voltage and 10 amp average current draw
• Fuel level sender assembly included for accurate tank level reporting
• Internal strainer and external strainer included for fuel pickup protection
• Quick-connect outlet design with 3 outlet ports and 0.375 in. outlet outside diameter
• Gasket or seal included; regulator not included
• Vapor pressure sensor included
• Standard replacement grade for service repair

Detailed Description

Delphi FG0060 is a fuel pump module assembly engineered for gasoline fuel delivery in select Chevrolet P30 and GMC P3500 vehicles. It is an in-tank electric module with a blade terminal design, male terminals, and a quick-connect outlet configuration. The assembly includes the fuel pump module, float arm, seal, splices, wire harness, and instruction sheet, along with the fuel level sender assembly and vapor pressure sensor.

Delphi draws on OE experience and broad aftermarket coverage to support replacement needs across multiple vehicle platforms. This FG0060 unit is built for applications requiring 62 psi system pressure, with an average flow rating of 32 and resistance values of 40 ohms empty and 250 ohms full for the sender circuit. Delphi FG0060 is a direct-fit service part for 1998-1999 Chevrolet P30 and 1998-1999 GMC P3500 fuel system repair.

This part cross-references Airtex Fuel Pumps E3965M and Carter P74799M for the same application.

What It Helps Fix

• Hard starting caused by weak or failing fuel delivery
• Engine stalling from inconsistent fuel pressure
• Fuel gauge readings that do not match tank level
• Fuel starvation under load or during acceleration
• Check engine concerns related to fuel pressure or vapor pressure sensing

Installation Notes and Tips

Before installing a replacement pump module, clean the fuel tank to reduce the risk of contamination reaching the new pump. Delphi notes that fuel tank contamination is a leading cause of premature fuel pump failure, and use of fuel tank cleaning kit FC01 is recommended for these applications. Verify the vehicle is a 1998-1999 Chevrolet P30 or 1998-1999 GMC P3500 with California Emission System and without School Bus Package before installation.

Confirm connector style, outlet type, and sender resistance values match the original unit before final assembly. The module is designed for in-tank installation and uses a quick-connect outlet, so proper sealing and line connection checks are important after service.

Quality Assurance

Delphi builds this fuel pump module assembly using OE-based engineering knowledge developed through decades of supplying original equipment to major automakers. The FG0060 is a standard replacement part designed to meet the service requirements of the listed Chevrolet P30 and GMC P3500 applications.
