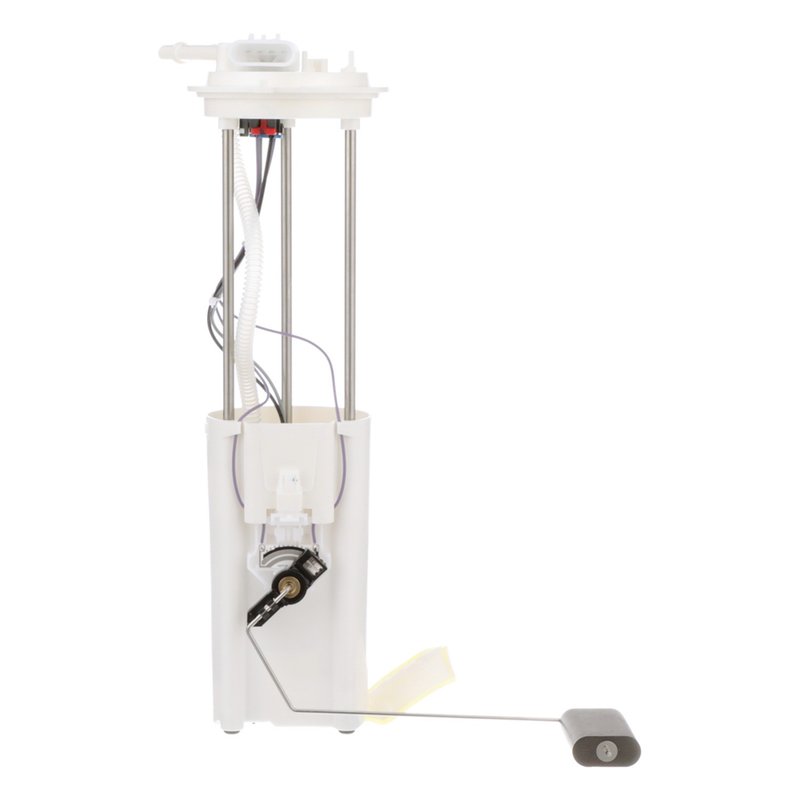

Delphi FG0061 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Trucks

The Delphi FG0061 fuel pump module assembly is designed specifically for Chevrolet P30 and GMC P3500 models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings, supporting optimal engine performance for your gas-powered vehicle.

• Electric fuel pump with 13.0 voltage operation
• Includes internal strainer and fuel level sender assembly
• Compatible with gas fuel type and supports system pressure of 62 psi
• Features quick connect outlet with 0.375 inch outside diameter
• Comes with gasket or seal and wire harness for installation
• Blade-type male terminals with 4 terminal quantity
• Average flow rating of 24 and average current draw of 10 amps

Detailed Product Features and Specifications

The Delphi FG0061 fuel pump module assembly is engineered as a standard replacement part for Chevrolet P30 and GMC P3500 trucks. It operates at 13 volts and is designed for gas fuel systems, delivering a maximum pressure of 109 psi and maintaining a system pressure of 62 psi. The pump includes an internal strainer to prevent debris from entering the fuel system and a fuel level sender assembly with resistance values ranging from 40 ohms (empty) to 250 ohms (full), ensuring accurate fuel gauge readings.

This module features a quick connect outlet type with three outlets, each having an outside diameter of 0.375 inches. The blade-type male terminals (four in total) provide secure electrical connections. The package includes the fuel pump module assembly with float arm, seal, splices, and wire harness for a complete installation.

Compatible Vehicles and Applications

• Chevrolet P30 gas-powered trucks
• GMC P3500 gas-powered trucks
• Replacement for in-tank electric fuel pump modules
• Ideal for restoring fuel delivery and fuel level accuracy
• Addresses issues such as fuel delivery failure, inaccurate fuel gauge, and fuel pump noise

Installation Notes and Tips

When installing the Delphi FG0061 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. The included gasket or seal should be properly seated to prevent leaks. Verify all electrical connections to the blade-type terminals are secure and free of corrosion. The internal strainer is integrated, so no additional filtration is required during installation. Follow manufacturer torque specifications for the fuel pump lock ring if applicable.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. This FG0061 module is a standard replacement part designed to provide reliable performance in Chevrolet P30 and GMC P3500 trucks. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or your parts provider for exact warranty terms.
