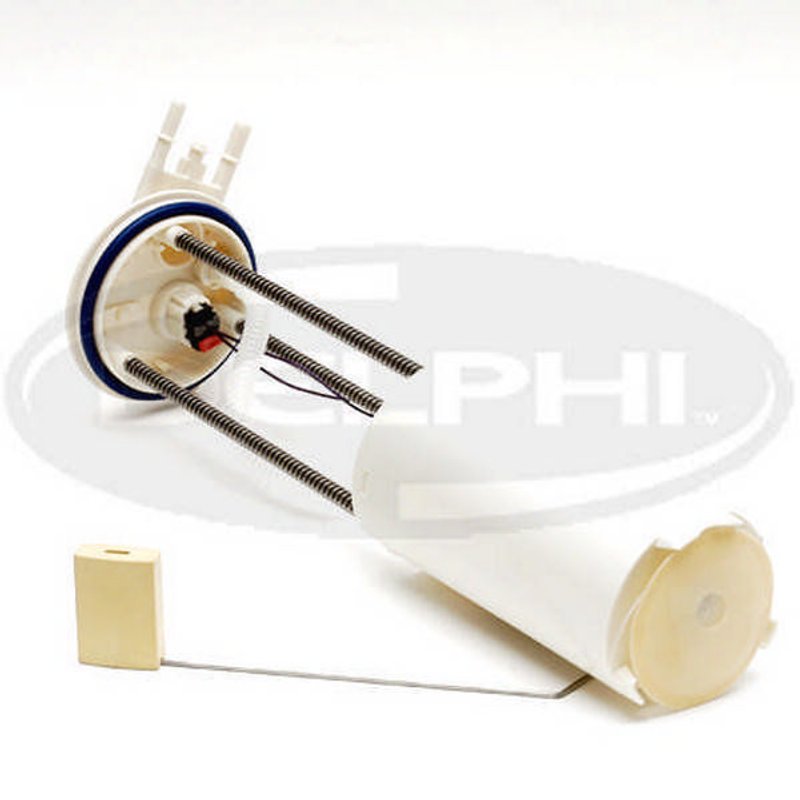

Delphi FG0063 Fuel Transfer Unit

Reliable Fuel Transfer Unit for Chevrolet and GMC Trucks

The Delphi FG0063 fuel transfer unit is designed specifically for in-tank diesel fuel delivery systems in Chevrolet P30 and GMC P3500 models. Engineered to provide consistent fuel flow and accurate fuel level readings, this unit supports efficient operation of your vehicle's fuel system.

• Compatible with Chevrolet P30 and GMC P3500 diesel trucks
• In-tank fuel transfer unit with external strainer inlet
• Includes fuel level sender assembly with float arm
• Outlet outside diameter of 0.375 inches with quick connect fittings
• Four male pin terminals for secure electrical connections
• Comes with gasket and external strainer for contamination protection
• Standard replacement grade for reliable performance

Technical Details and Features

The Delphi FG0063 fuel transfer unit is designed for diesel fuel systems requiring precise fuel delivery and level monitoring. It features an external strainer inlet type to prevent debris from entering the fuel pump, enhancing longevity and reducing maintenance. The unit includes a fuel level sender assembly with a float arm, providing accurate fuel level readings with resistance values ranging from 0.1 ohms (empty) to 90 ohms (full). The outlet is equipped with two quick connect fittings, each with an outside diameter of 0.375 inches, facilitating easy installation and secure fuel line connections. Electrical connections are made via four male pin terminals, ensuring compatibility with factory wiring harnesses. A gasket is included to maintain a proper seal and prevent leaks.

Applications and Problem Solving

This fuel transfer unit is intended for use in diesel-powered Chevrolet P30 and GMC P3500 trucks. It addresses several common fuel system issues, including:

• Inconsistent fuel delivery causing engine performance problems
• Faulty or inaccurate fuel level readings
• Fuel contamination due to lack of proper straining
• Leaks from worn or missing seals and gaskets
• Electrical connection failures from damaged terminals

Installation Notes and Tips

When installing the Delphi FG0063 fuel transfer unit, ensure the following for optimal performance:

• Verify compatibility with Chevrolet P30 or GMC P3500 diesel models before installation
• Inspect and clean the fuel tank area to prevent contamination during installation
• Use the included gasket to ensure a proper seal and prevent fuel leaks
• Connect the four male pin terminals securely to the vehicle’s wiring harness
• Confirm the quick connect outlets are properly seated to avoid fuel line disconnections

Quality Assurance and Warranty

Delphi fuel transfer units are manufactured to meet standard replacement grade specifications, ensuring reliable operation within the vehicle’s fuel system. The FG0063 part undergoes rigorous quality control to maintain consistent performance and durability. While specific warranty details may vary, Delphi products typically include coverage against manufacturing defects to provide confidence in your purchase.
