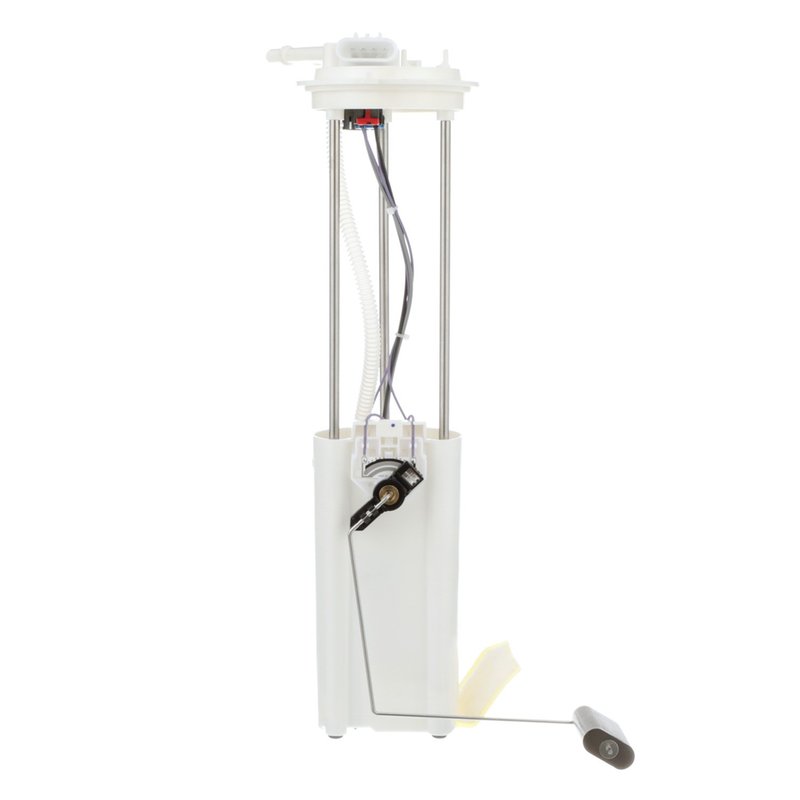

Delphi FG0064 Fuel Pump Module Assembly

Delphi FG0064 Fuel Pump Module Assembly

Delphi FG0064 is an in-tank electric fuel pump module assembly for gas applications, built for direct replacement service on select Chevrolet and GMC chassis-cab models. It combines the fuel pump, fuel level sender assembly, strainer, seal, and wiring-related service components in one OE-style module for 1998-1999 Chevrolet P30 and GMC P3500 applications with the 80-gallon tank and RPO code NJ9.

Key Features

• In-tank electric fuel pump module assembly for gas fuel systems
• Maximum pressure rating of 109.0 and system pressure of 62 psi
• Average flow rating of 24 with an average current draw of 10
• Fuel level sender assembly included for accurate tank level reporting
• Strainer and gasket or seal included for service replacement
• Quick-connect outlet design with 3 outlets and 0.375 outlet outside diameter
• Blade terminals, 4 terminal quantity, male terminal gender
• Standard replacement grade for direct-fit repair work

Detailed Description

Delphi FG0064 is engineered as a fuel pump module assembly for select Chevrolet P30 and GMC P3500 vehicles, including 1998-1999 models with the 80-gallon tank and RPO code NJ9. Delphi draws on OE heritage and supplier experience to build aftermarket fuel system parts with the fit, function, and electrical characteristics expected in service replacement applications. This part number, FG0064, is a practical choice when replacing a worn in-tank fuel pump module on a Chevrolet P30 or GMC P3500 that needs stable fuel delivery and sender operation.

This module is designed for gas fuel systems and includes an internal strainer, quick-connect outlet, fuel level sender assembly, and seal. The blade-style, 4-terminal electrical connection supports straightforward integration into the vehicle’s fuel system harness. Delphi FG0064 also cross-references Carter P74759M for the same application.

What It Helps Fix

• Hard starting caused by weak or inconsistent fuel delivery
• Engine hesitation or stalling under load
• Incorrect fuel gauge readings from a failing sender assembly
• Low fuel pressure complaints on in-tank pump systems
• Fuel starvation issues related to a worn pump module

Installation Notes and Tips

Compatible With 1998-1999 Chevrolet P30, N/A, with 80 Gallon Tank and RPO Code NJ9. Compatible With 1998-1999 GMC P3500, N/A, with 80 Gallon Tank and RPO Code NJ9. Compatible With 1998-1999 GMC P3500, N/A, with 80 Gal Fuel Tank and RPO Code NJ9. Before installing a replacement pump on these Chevrolet P30 and GMC P3500 applications, clean the fuel tank to reduce the risk of contamination-related failure. Delphi recommends using fuel tank cleaning kit FC01 for this service. Verify outlet style, electrical connector type, and tank configuration before installation.

Quality Assurance

Delphi builds this fuel pump module assembly using OE experience and application knowledge developed through long-term supplier relationships with major automakers. The FG0064 is a standard replacement part intended to meet the demands of the listed Chevrolet and GMC applications with the correct pressure, flow, and sender configuration.
