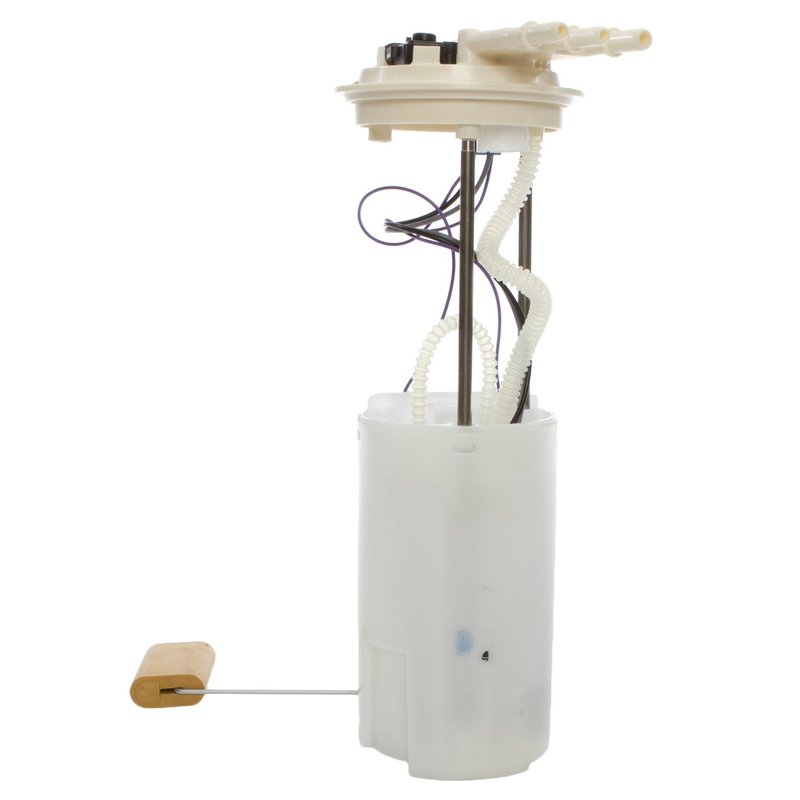

Delphi FG0071 Fuel Pump Module Assembly

Delphi FG0071 Fuel Pump Module Assembly

Delphi FG0071 is an in-tank fuel pump module assembly for gas applications, built for direct replacement service on select Chevrolet Blazer, GMC Jimmy, and Oldsmobile Bravada models. It combines the pump, fuel level sender assembly, seal, strainer, wire harness, splices, and instruction sheet in one OE-style service part.

Key Features

• In-tank electric fuel pump module assembly for gas fuel systems
• Maximum pressure rating of 109.0 and system pressure of 62 psi
• Fuel level sender assembly included with resistance range of 40.0 ohms empty to 250.0 ohms full
• Quick-connect outlet design with 3 outlet ports and 0.375 in. outlet outside diameter
• Internal strainer included and gasket or seal included
• Blade terminals, male terminal gender, and 4 terminal quantity
• Vapor pressure sensor included
• Standard replacement grade from Delphi, part number FG0071

Detailed Description

Delphi FG0071 is engineered as a fuel pump module assembly for vehicles that use an in-tank electric pump and integrated sender. Delphi draws on OE heritage and decades of supplier experience, bringing production knowledge from original equipment applications into this aftermarket replacement. This part number FG0071 is a direct service option for 1997-1998 Chevrolet Blazer, 1997-1998 GMC Jimmy, and 1997-1998 Oldsmobile Bravada models with the listed tank and connector requirements.

This assembly is built for gas fuel systems and includes the components needed for a complete module service, including the float arm, seal, splices, wire harness, and instruction sheet. It also uses a quick-connect outlet and includes a vapor pressure sensor, making it a practical OE-style replacement for fuel delivery and fuel level reporting concerns on the supported applications.

This part cross-references Bosch 67358 for the same application.

Common Issues This Part Can Address

• Hard starting caused by low fuel pressure
• Engine stalling from a weak or failing in-tank pump
• Inaccurate fuel gauge readings from a worn sender
• Fuel delivery loss from pump wear or internal electrical failure
• Fuel system service needs after tank contamination is corrected

Installation Notes and Tips

• Fits 1998 Chevrolet Blazer, N/A; with Steel Tank; without 18 Gallon Tank; Except RFI Filter Stamped GAV; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; with Pressure Sensor.
• Fits 1998 GMC Jimmy, N/A; with Steel Tank; without 18 Gallon Tank; Except RFI Filter Stamped GAV; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; with Pressure Sensor.
• Fits 1998 Oldsmobile Bravada, N/A; Except RFI Filter Stamped GAV; without 18 Gallon Tank; with Steel Tank; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; with Pressure Sensor.
• Fits 1997 Chevrolet Blazer, N/A; Except RFI Filter Stamped GAV; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; with Pressure Sensor.
• Fits 1997 GMC Jimmy, N/A; Except RFI Filter Stamped GAV; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; with Pressure Sensor.
• Fits 1997 Oldsmobile Bravada, N/A; Except RFI Filter Stamped GAV; with Original OE design had a 2x2 connector, OE design upgraded to a 1x4 Connector; with A 1x4 splice kit included for vehicles with 2x2 Connector; with Pressure Sensor.
• Clean the fuel tank before installation to reduce the risk of premature pump failure from contamination.
• Verify connector style, tank configuration, and pressure sensor requirements before service.

Quality Assurance

Delphi builds this fuel pump module assembly using OE-focused engineering knowledge developed through long-term supplier experience with major automakers. FG0071 is a standard replacement part designed to meet the application requirements of the listed Chevrolet, GMC, and Oldsmobile vehicles.
