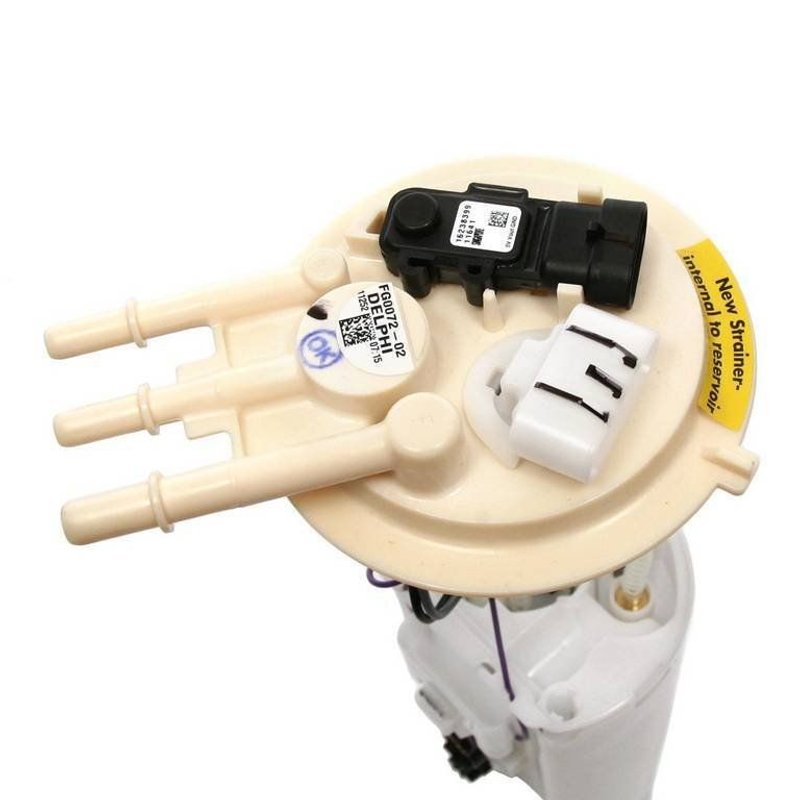

Delphi FG0072 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0072 fuel pump module assembly is designed for reliable fuel delivery in Chevrolet Blazer and GMC Jimmy vehicles. This electric in-tank fuel pump module ensures consistent fuel flow and accurate fuel level readings for optimal engine performance.

• Electric fuel pump with 13.0 voltage operation
• Compatible with gasoline fuel systems
• Includes internal strainer and fuel level sender assembly
• Quick connect outlet with 0.375 inch outside diameter
• Four male blade terminals for secure electrical connections
• Maximum pressure rating of 109 psi and system pressure of 58 psi
• Comes with gasket/seal and wiring harness with splices
• Average flow rating of 29 and average current draw of 7 amps
• Includes vapor pressure sensor for emissions control

Technical Details and Features

The Delphi FG0072 fuel pump module assembly is engineered as a standard replacement part for in-tank fuel delivery systems in Chevrolet Blazer and GMC Jimmy models. It operates at 13 volts and features an electric pump type with an internal strainer to prevent debris from entering the fuel system. The module includes a fuel level sender assembly with resistance values ranging from 40 ohms (empty) to 250 ohms (full), providing accurate fuel gauge readings. The outlet is designed as a quick connect type with three outlets, each having an outside diameter of 0.375 inches, facilitating easy installation and secure fuel line connections. The assembly also includes a vapor pressure sensor to support emissions compliance.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Chevrolet Blazer
• GMC Jimmy

It is intended for gasoline fuel systems requiring an in-tank electric fuel pump module with integrated fuel level sending capabilities.

Common Issues Addressed by Delphi FG0072

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pump noise or reduced fuel pressure affecting engine performance
• Clogged fuel strainer leading to restricted fuel flow
• Electrical connection failures from worn or damaged terminals

Installation Notes and Tips

• Ensure vehicle battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with Chevrolet Blazer or GMC Jimmy model year and fuel system specifications
• Use the included gasket/seal to prevent fuel leaks at the module mounting point
• Check that all four blade terminals are securely connected to the wiring harness
• Inspect the internal strainer for debris before installation to avoid premature pump failure

Quality Assurance and Warranty

The Delphi FG0072 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. It is a standard replacement grade part designed to restore proper fuel delivery and fuel level sensing. The product includes a gasket, wiring harness with splices, and float arm for comprehensive installation. Warranty coverage details should be confirmed with the parts provider or vehicle manufacturer.
