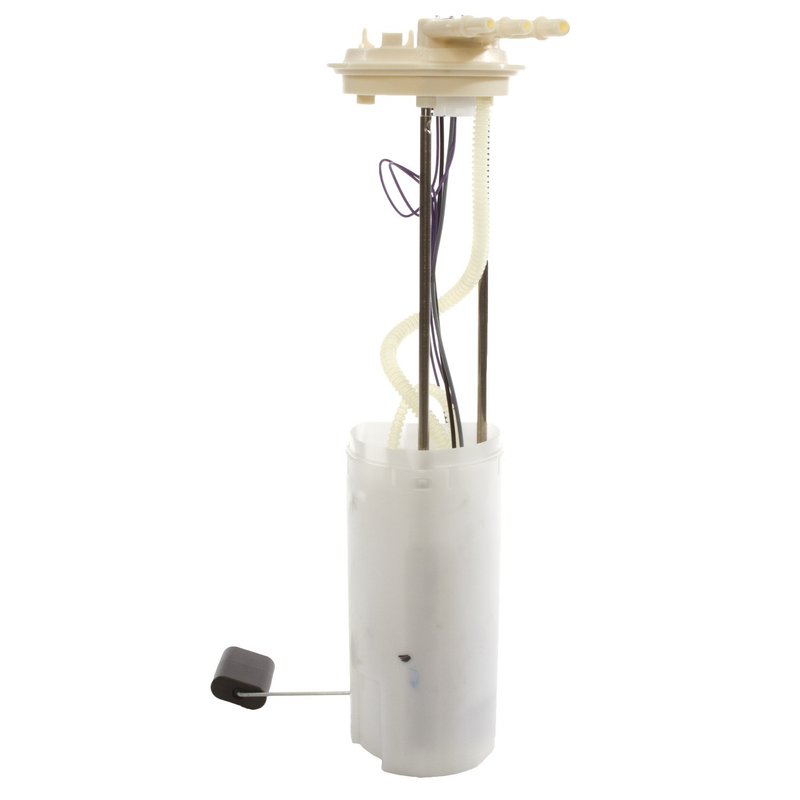

Delphi FG0076 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet P30

The Delphi FG0076 fuel pump module assembly is designed specifically for Chevrolet P30 vehicles, providing consistent fuel delivery and reliable performance. This electric in-tank fuel pump module ensures proper fuel flow and pressure to maintain engine efficiency.

• Electric fuel pump with 13.0 voltage rating
• In-tank design with internal strainer for clean fuel intake
• Includes fuel level sender assembly with float arm
• Quick connect outlet type with 0.375 inch outside diameter
• Maximum pressure rating of 109 psi and system pressure of 62 psi
• Four male blade terminals for secure electrical connections
• Comes with gasket/seal and wire harness with splices
• Compatible with gasoline fuel type
• Average flow rating of 24 and average current draw of 10 amps

Detailed Description of Delphi FG0076 Fuel Pump Module

The Delphi FG0076 fuel pump module assembly is engineered for the Chevrolet P30, featuring an electric pump that operates at 13 volts to deliver a steady fuel supply. Its in-tank configuration includes an internal strainer to prevent contaminants from entering the fuel system, enhancing longevity and performance. The module comes equipped with a fuel level sender assembly, allowing accurate fuel gauge readings. The quick connect outlet with a 0.375-inch outside diameter and three outlet ports facilitates easy installation and secure fuel line connections. With a maximum pressure of 109 psi and a system pressure of 62 psi, this module supports optimal fuel system operation under various driving conditions.

Common Applications and Problem Resolution

• Replaces faulty or failing fuel pump modules in Chevrolet P30 models
• Resolves inconsistent fuel pressure or flow issues
• Fixes inaccurate fuel level readings due to sender assembly failure
• Addresses fuel delivery interruptions caused by clogged strainers
• Eliminates electrical connection problems with four blade terminals

Installation Notes and Tips

When installing the Delphi FG0076 fuel pump module assembly, ensure the vehicle’s fuel tank is properly drained and depressurized to avoid spills and hazards. The included gasket/seal should be carefully positioned to prevent leaks. Verify that the four male blade terminals are securely connected to the vehicle’s wiring harness. The quick connect outlet ports simplify fuel line attachment, but confirm all connections are tight to maintain system pressure. It is recommended to inspect the fuel tank for debris before installation to prolong pump life.

Quality Assurance and Warranty Information

Delphi manufactures the FG0076 fuel pump module assembly to meet standard replacement grade specifications, ensuring reliable performance for Chevrolet P30 vehicles. The product includes a gasket, wire harness with splices, and a float arm for the fuel level sender assembly. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Always refer to the product documentation or supplier for exact warranty terms.
