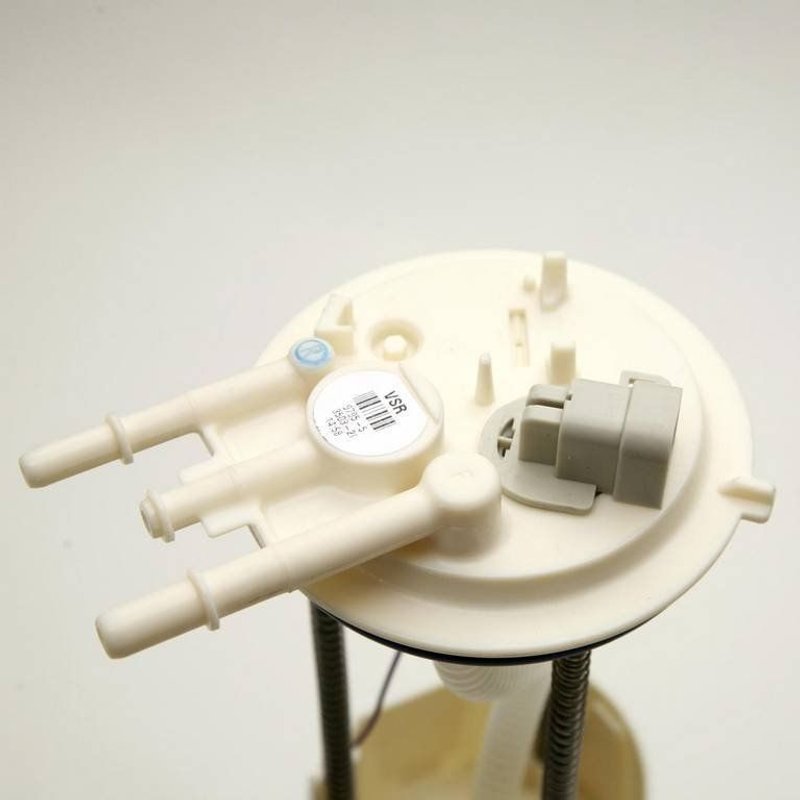

Delphi FG0082 Fuel Transfer Unit
Delphi FG0082 Fuel Transfer Unit Overview
The Delphi FG0082 fuel transfer unit is designed for reliable diesel fuel delivery in select Chevrolet and GMC vans. This in-tank fuel pump assembly includes a fuel level sender and external strainer, ensuring consistent fuel flow and accurate fuel level readings for your vehicle.
- Compatible with Chevrolet Express 2500, Express 3500, GMC Savana 2500, and Savana 3500 diesel models
- In-tank fuel transfer unit with external strainer for improved filtration
- Includes fuel level sender assembly with float arm for precise fuel measurement
- Outlet outside diameter of 0.375 inches with quick connect outlet type
- Four male blade terminals for secure electrical connections
- Gasket and seal included to maintain proper fuel system integrity
- Standard replacement grade part designed to meet OEM specifications
Detailed Product Description
The Delphi FG0082 fuel transfer unit is engineered specifically for diesel-powered Chevrolet Express 2500 and 3500, as well as GMC Savana 2500 and 3500 vans. This unit features an in-tank design with an external strainer inlet type, which helps prevent debris from entering the fuel system. The fuel pump includes a fuel level sender assembly with a float arm, providing accurate fuel level readings to the vehicle’s gauge. The outlet has a quick connect type with an outside diameter of 0.375 inches, facilitating straightforward installation and secure fuel line connections. Electrical connectivity is ensured through four male blade terminals, supporting reliable power delivery to the pump. A gasket or seal is included to maintain a tight fit and prevent leaks. This standard replacement part meets the necessary resistance specifications, with 40 ohms when empty and 250 ohms when full, ensuring proper operation within the fuel system.
Common Applications and Issues Addressed
- Replacement for faulty or failing in-tank fuel pumps in Chevrolet Express and GMC Savana diesel vans
- Resolves inconsistent fuel delivery or engine performance issues caused by clogged or damaged strainers
- Corrects inaccurate fuel gauge readings due to malfunctioning fuel level sender assemblies
- Eliminates fuel leaks by providing a proper gasket seal during installation
- Addresses electrical connection problems with reliable blade terminal design
Installation Notes and Tips
When installing the Delphi FG0082 fuel transfer unit, ensure the gasket or seal is properly seated to prevent fuel leaks. Verify that the four male blade terminals are securely connected to the vehicle’s wiring harness. The quick connect outlet type allows for easier fuel line attachment, but confirm all connections are tight to avoid disconnections during operation. Since this is an in-tank unit, take appropriate safety precautions when working with fuel systems, including depressurizing the fuel system and disconnecting the battery before installation.
Quality Assurance and Warranty
Delphi manufactures the FG0082 fuel transfer unit to meet or exceed OEM standards for durability and performance. This standard replacement part undergoes rigorous testing to ensure compatibility and reliable operation in specified Chevrolet and GMC diesel vans. While specific warranty details are not provided, Delphi products typically come with manufacturer-backed warranties covering defects in materials and workmanship.
| Brand | Delphi |
|---|---|
| Part Number | FG0082 |
| Outlet Outside Diameter | 0.375 |
| Fuel Type | Diesel |
| Regulator Included | No |
| Terminal Type | Blade |
| Gasket Or Seal Included | Yes |
| Terminal Quantity | 4 |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick connect |
| Outlet Quantity | 2 |
| In Tank or External | In tank |
| Resistance Ohms Empty | 40.0 |
| Resistance Ohms Full | 250.0 |
| Internal Or External Strainer | External |
| Fuel Level Sender Assembly Included | Yes |
| Item Grade | Standard replacement |
| Package Contents | Fuel transfer unit w/float arm, instruction sheet |
| Vapor Pressure Sensor | No |
This part fits 16 vehicles. Search below:
| Year | Make | Model | Fuel Type | Position | Notes |
|---|---|---|---|---|---|
| 2002 | Chevrolet | Express 2500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2002 | Chevrolet | Express 3500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; with Cutaway Chassis; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2002 | GMC | Savana 2500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2002 | GMC | Savana 3500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; with Cutaway Chassis; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2001 | Chevrolet | Express 2500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2001 | Chevrolet | Express 3500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; with Cutaway Chassis; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2001 | GMC | Savana 2500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2001 | GMC | Savana 3500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; with Cutaway Chassis; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2000 | Chevrolet | Express 2500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2000 | Chevrolet | Express 3500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; with Cutaway Chassis; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2000 | GMC | Savana 2500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2000 | GMC | Savana 3500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; with Cutaway Chassis; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Chevrolet | Express 2500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Chevrolet | Express 3500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; with Cutaway Chassis; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | GMC | Savana 2500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | GMC | Savana 3500 | DIESEL | N/A | with 55 Gallon Tank; RPO Code NE7; with Cutaway Chassis; Strainer is Inside the Module Assembly; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
