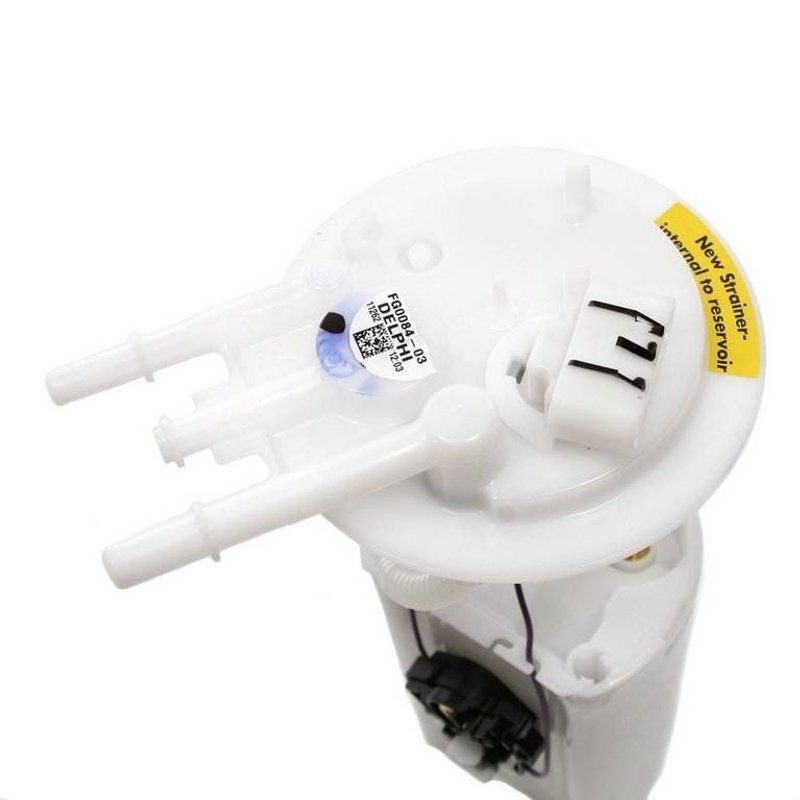

Delphi FG0084 Fuel Pump Module Assembly

Delphi FG0084 Fuel Pump Module Assembly

Delphi FG0084 is an in-tank electric fuel pump module assembly for gas applications. It is built with OE-based engineering and includes the fuel level sender assembly, strainer, gasket or seal, float arm, wire harness, splices, and instruction sheet for a direct replacement approach.

Fits 1996-1997 Chevrolet Tahoe and 1996-1997 GMC Yukon. This Delphi fuel pump module assembly is a standard replacement for vehicles that need stable fuel delivery and accurate tank level reporting.

Key Features

• In-tank electric fuel pump module assembly for gas fuel systems
• Maximum pressure rating of 109.0 and system pressure of 62 psi
• Average flow rating of 30 with an average current draw of 10
• Fuel level sender assembly included for gauge signal restoration
• Quick-connect outlet design with 2 outlets and 0.375 in. outlet outside diameter
• Blade terminals, male terminal gender, and 4 terminal quantity
• Strainer and gasket or seal included
• Standard replacement part built from Delphi OE heritage and application knowledge

Detailed Description

Delphi FG0084 fuel pump module assembly is engineered for in-tank installation on 1996-1997 Chevrolet Tahoe and 1996-1997 GMC Yukon models. It is designed for gas fuel systems and includes the pump module, internal strainer, fuel level sender assembly, and sealing components needed for a service replacement. Delphi draws on more than 100 years of OE experience and supplier knowledge used by major automakers, bringing factory-informed design to the aftermarket.

For buyers searching for a 1996-1997 Chevrolet Tahoe fuel pump module assembly or a 1996-1997 GMC Yukon fuel pump replacement, FG0084 provides the core components needed to restore fuel delivery and tank level feedback. This part cross-references Spectra Premium SP415M for the same application.

What It Helps Fix

• Hard starting caused by weak or failing fuel delivery
• Engine stalling from inconsistent pump output
• Fuel gauge readings that no longer track tank level correctly
• Low fuel pressure conditions in the tank-mounted fuel system
• Noise or wear associated with an aging in-tank pump module

Installation Notes and Tips

Before installing this fuel pump module assembly, clean the fuel tank to reduce the chance of seal contamination and future sealing problems. Verify connector style, outlet configuration, and system pressure requirements before service. Because this is an in-tank assembly, proper tank access and careful handling of the seal and sender components are important during installation.

Quality Assurance

Delphi builds this replacement part using OE-focused engineering and application knowledge developed through long-term supplier experience with automakers. FG0084 is a standard replacement fuel pump module assembly intended to meet the needs of the listed Chevrolet Tahoe and GMC Yukon applications.
