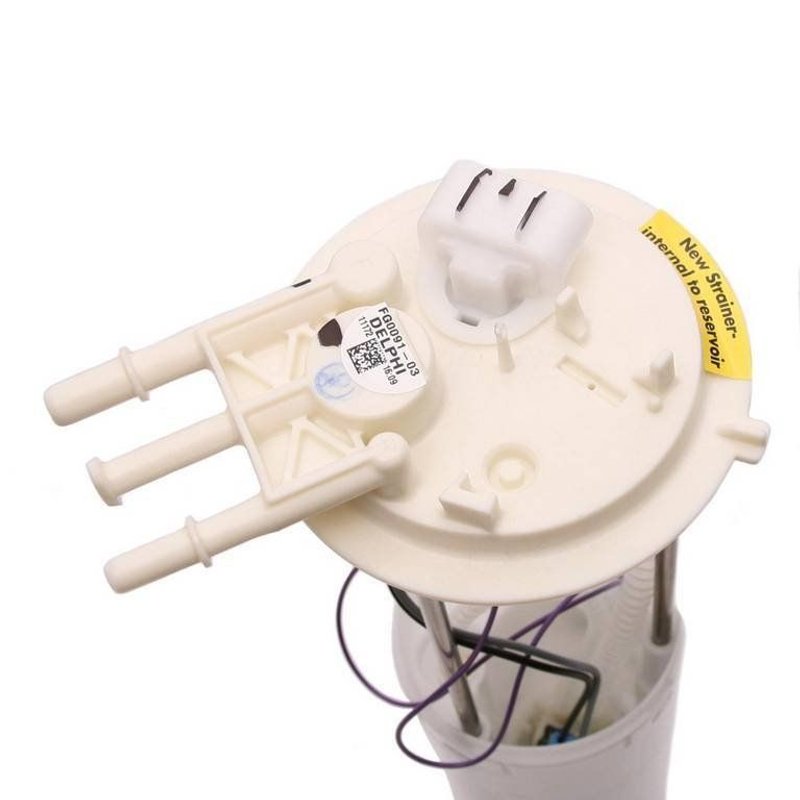

Delphi FG0091 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Suburban

The Delphi FG0091 fuel pump module assembly is designed specifically for Chevrolet C2500 Suburban and GMC K2500 Suburban models. This in-tank electric fuel pump ensures consistent fuel delivery and supports optimal engine performance for gas-powered vehicles.

• Outlet outside diameter: 0.375 inches
• Voltage: 13.0 volts
• Fuel type: Gasoline
• Maximum pressure: 109 psi
• Terminal type: Blade with 4 male terminals
• Includes gasket and internal strainer
• Quick connect outlet with 2 outlets
• Fuel level sender assembly included
• Average flow rating: 24 gallons per hour
• System pressure: 62 psi
• Standard replacement grade

Technical Overview of Delphi FG0091 Fuel Pump Module

The Delphi FG0091 is an electric fuel pump module assembly engineered for in-tank installation. It features an internal strainer inlet and quick connect outlets to facilitate secure fuel flow. The pump operates at 13 volts and delivers an average flow rate of 24 gallons per hour, maintaining system pressure at 62 psi with a maximum pressure rating of 109 psi. The assembly includes a fuel level sender with a float arm, gasket, splices, and wire harness for a complete replacement solution. The blade-type terminals with four male connectors ensure reliable electrical connections. This module is designed for gasoline fuel systems and is compatible with Chevrolet C2500 Suburban and GMC K2500 Suburban trucks.

Applications and Common Issues Addressed

• Restores proper fuel delivery in Chevrolet C2500 Suburban and GMC K2500 Suburban
• Resolves fuel pump failure symptoms such as engine stalling or hesitation
• Replaces worn or damaged fuel level sender assemblies for accurate fuel gauge readings
• Eliminates fuel pressure inconsistencies caused by faulty pump modules
• Addresses fuel contamination issues with included internal strainer

Installation Notes and Tips

• Ensure vehicle is compatible: Chevrolet C2500 Suburban and GMC K2500 Suburban models
• Disconnect battery before installation to prevent electrical hazards
• Use included gasket and splices for secure sealing and wiring connections
• Handle the fuel pump module carefully to avoid damage to the float arm and wiring harness
• Verify all quick connect outlets are properly seated to prevent fuel leaks

Quality Assurance and Warranty Information

The Delphi FG0091 fuel pump module assembly is manufactured to meet standard replacement grade specifications, ensuring reliable performance and durability. It includes all necessary components for a complete installation. Delphi products typically come with a limited warranty covering defects in materials and workmanship; please refer to the product documentation or manufacturer for specific warranty details.
