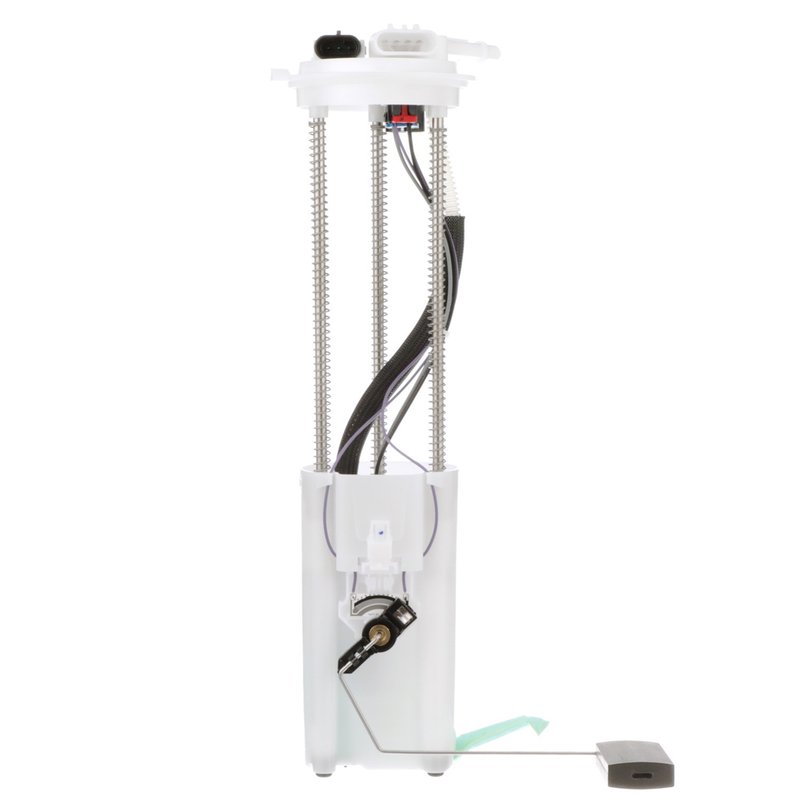

Delphi FG0094 Fuel Pump Module Assembly

Delphi FG0094 Fuel Pump Module Assembly

Delphi FG0094 is an in-tank fuel pump module assembly built for gasoline applications that require stable fuel delivery and integrated level sensing. It combines OE-based engineering with a standard replacement design for select Chevrolet C3500, Chevrolet K3500, GMC C3500, and GMC K3500 applications.

Key Features

• Electric in-tank fuel pump module assembly for gas fuel systems
• Maximum pressure rating of 109.0 and system pressure of 62 psi
• Average flow rating of 24 with an average current draw of 10
• Fuel level sender assembly included for accurate tank level reporting
• Strainer included, with internal strainer design
• Quick-connect outlet type with 3 outlets and 0.375 in. outlet outside diameter
• Blade terminals, male terminal gender, 4 terminal quantity
• Gasket or seal included; regulator not included
• Package contents include fuel pump module assembly with float arm, seal, splices, wire harness, and instruction sheet

Detailed Description

Delphi FG0094 fuel pump module assembly is engineered for direct replacement in select Chevrolet and GMC heavy-duty truck applications. Built from Delphi’s OE heritage and decades of supplier experience, this module supports consistent fuel delivery, integrates the fuel level sender, and uses a quick-connect outlet layout for service-friendly installation. It is a practical choice for 2000 Chevrolet C3500, 2000 Chevrolet K3500, 2000 GMC C3500, 2000 GMC K3500, 1998-1999 Chevrolet K3500, and 1998-1999 GMC K3500 models.

This part cross-references Bosch 67381 for the same application.

What It Helps Fix

• Hard starting caused by weak or failing fuel pump output
• Engine hesitation or stalling from inconsistent fuel pressure
• Incorrect fuel gauge readings from a worn sender assembly
• Fuel delivery loss related to an aging in-tank module
• Driveability issues tied to restricted pickup or contaminated pump components

Installation Notes and Tips

Before installing Delphi FG0094, clean the fuel tank to reduce the chance of debris damaging the replacement pump. Delphi notes that fuel tank contamination is a leading cause of premature pump failure, and a fuel tank cleaning kit such as FC01 is recommended. Verify the vehicle’s emission configuration and RPO codes before ordering, especially on 2000 Chevrolet and GMC C3500/K3500 applications. Confirm connector style, outlet routing, and sender connection details before installation.

Quality Assurance

Delphi builds this fuel pump module assembly using OE-focused engineering informed by long-term supplier experience with major automakers. The FG0094 is part of a broad aftermarket portfolio intended to meet the needs of a wide range of vehicle applications.
