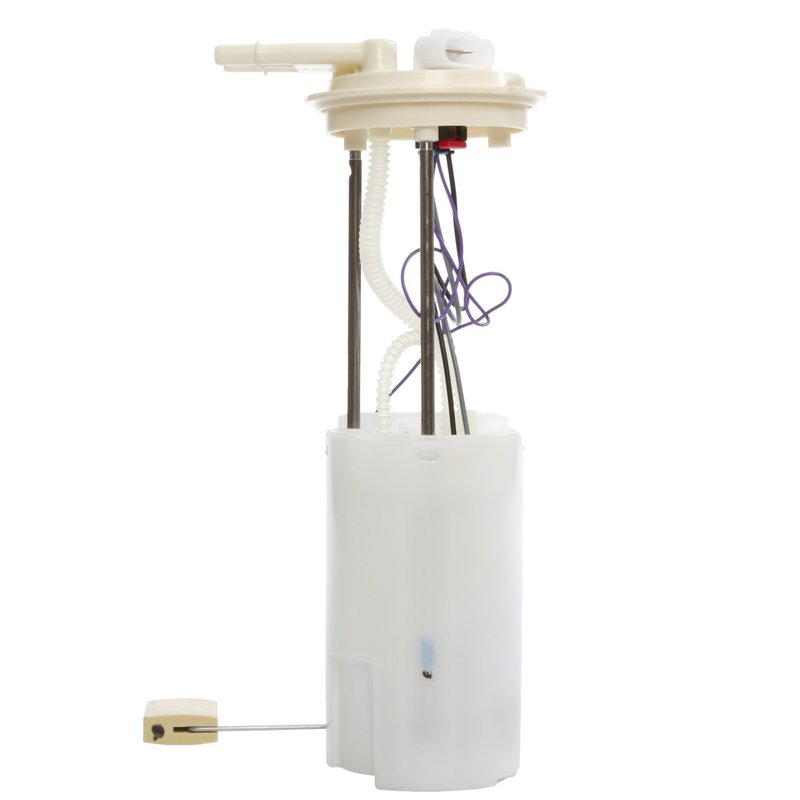

Delphi FG0098 Fuel Pump Module Assembly

Delphi FG0098 Fuel Pump Module Assembly

Delphi FG0098 is an in-tank electric fuel pump module assembly for gasoline applications. Built with OE heritage and backed by Delphi’s century of original-equipment experience, it is engineered for direct replacement service on select Chevrolet Express and GMC Savana vans.

Key Features

• In-tank electric fuel pump module assembly for gas fuel systems
• Maximum pressure: 109 psi; system pressure: 62 psi
• Average flow rating: 32 and average current draw: 10
• Fuel level sender assembly included with float arm
• Gasket or seal included; strainer included
• Quick-connect outlet design with 2 outlets and blade terminals
• Standard replacement grade for OE-style service

Detailed Description

The Delphi FG0098 fuel pump module assembly is built for vehicles that require an in-tank gasoline fuel delivery unit with an integrated fuel level sender. It includes a seal, strainer, wire harness, splices, and instruction sheet, along with a float arm for accurate fuel level reporting. Delphi’s OE background is reflected in the design and application coverage, making this FG0098 a practical replacement for service work on Chevrolet Express 1500, Express 2500, Express 3500, GMC Savana 1500, Savana 2500, and Savana 3500 models in the listed years.

This part cross-references Bosch 67302 and Carter P74778M for the same application.

Vehicle Fitment

• Fits 1998-2002 Chevrolet Express 1500, N/A, with Federal Emission System; RPO Code NA4, NF4 or NF2; Over 8,500lb GVW; without Evaporative Emission; Module has 1 Electrical Connector(s); without Fitting for Take-Off Fuel Line.
• Fits 1998-2002 Chevrolet Express 2500, N/A, with Federal Emission System; RPO Code NA4, NF4 or NF2; Over 8,500lb GVW; without Evaporative Emission; Module has 1 Electrical Connector(s); without Fitting for Take-Off Fuel Line.
• Fits 1998-2002 Chevrolet Express 3500, N/A, with Federal Emission System; RPO Code NA4, NF4 or NF2; Except Cutaway Chassis; without Evaporative Emission; Module has 1 Electrical Connector(s); without Fitting for Take-Off Fuel Line.
• Fits 1998-2002 GMC Savana 2500, N/A, with Federal Emission System; RPO Code NA4, NF4 or NF2; Over 8,500lb GVW; without Evaporative Emission; Module has 1 Electrical Connector(s); without Fitting for Take-Off Fuel Line.
• Fits 1998-2002 GMC Savana 3500, N/A, with Federal Emission System; RPO Code NA4, NF4 or NF2; Except Cutaway Chassis; without Evaporative Emission; Module has 1 Electrical Connector(s); without Fitting for Take-Off Fuel Line.
• Fits 1998 Chevrolet Express 1500, N/A, with Federal Emission System; RPO Code NA4, NF4 or NF2; Module has 1 Electrical Connector(s); without Evaporative Emission; without Fitting for Take-Off Fuel Line.
• Fits 1997-1998 Chevrolet Express 2500, N/A, Module has 1 Electrical Connector(s); without Evaporative Emission; without Fitting for Take-Off Fuel Line.
• Fits 1997-1998 GMC Savana 2500, N/A, without Evaporative Emission; Module has 1 Electrical Connector(s); without Fitting for Take-Off Fuel Line.
• Fits 1997 Chevrolet Express 1500, N/A, Module has 1 Electrical Connector(s); without Evaporative Emission; without Fitting for Take-Off Fuel Line.
• Fits 1997 Chevrolet Express 3500, N/A, Module has 1 Electrical Connector(s); without Evaporative Emission; without Fitting for Take-Off Fuel Line.
• Fits 1997 GMC Savana 1500, N/A, without Evaporative Emission; Module has 1 Electrical Connector(s); without Fitting for Take-Off Fuel Line.
• Fits 1997 GMC Savana 3500, N/A, Module has 1 Electrical Connector(s); without Evaporative Emission; without Fitting for Take-Off Fuel Line.

Common Symptoms This Part Can Address

• Hard starting or extended crank on gasoline vans
• Engine stalling from inconsistent fuel delivery
• Low fuel pressure under load
• Inaccurate fuel gauge readings from a worn sender
• Fuel pump noise or intermittent pump operation

Installation Notes

Confirm the vehicle’s emission package, GVW, connector count, and fuel line configuration before installation. Delphi recommends cleaning the fuel tank before replacing the pump module to reduce the risk of contamination-related failure; a fuel tank cleaning kit is recommended for this service. Verify the quick-connect outlet, blade terminal layout, and in-tank configuration match the original unit before assembly.

Quality Assurance

Delphi builds aftermarket fuel system parts using OE experience and application knowledge developed through long-term supplier relationships with major automakers. FG0098 is a standard replacement fuel pump module assembly designed to meet the requirements of the listed Chevrolet Express and GMC Savana applications.
