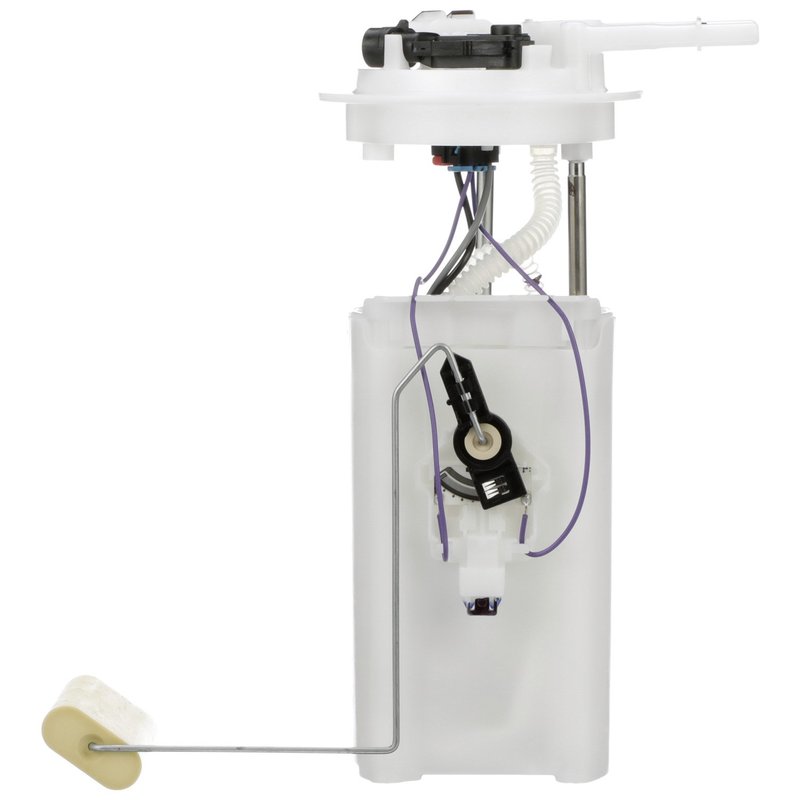

Delphi FG0105 Fuel Pump Module Assembly

Delphi Fuel Pump Module Assembly Overview

The Delphi FG0105 fuel pump module assembly is designed for reliable fuel delivery in Chevrolet Suburban 1500 and GMC Yukon XL 1500 models. This in-tank electric fuel pump ensures consistent fuel flow and pressure for optimal engine performance.

• Compatible with Chevrolet Suburban 1500 and GMC Yukon XL 1500
• 12.0 Volt electric pump with a maximum pressure of 109 psi
• Includes internal strainer and fuel level sender assembly
• Quick connect outlet with 0.375 inch outside diameter
• Comes with gasket/seal and wire harness with splices

Key Features and Technical Specifications

The Delphi FG0105 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with two outlets measuring 0.375 inches in diameter. The pump delivers an average flow rating of 32 gallons per hour and maintains a system pressure of 62 psi, with a maximum pressure rating of 109 psi. The assembly includes a fuel level sender assembly with resistance values ranging from 40 ohms (empty) to 250 ohms (full), providing accurate fuel level readings. The terminal type is blade style with four male terminals, ensuring secure electrical connections. This standard replacement grade module comes complete with a gasket or seal and a wire harness with splices for straightforward installation.

Application and Common Issues Addressed

• Restores proper fuel delivery in Chevrolet Suburban 1500 and GMC Yukon XL 1500
• Resolves fuel pump failure symptoms such as engine stalling or no-start conditions
• Fixes inaccurate fuel level readings due to faulty sender assembly
• Eliminates fuel pressure drops affecting engine performance
• Replaces worn or damaged in-tank fuel pump modules

Installation Notes and Tips

Installation of the Delphi FG0105 fuel pump module assembly requires removal of the fuel tank. Ensure the fuel system is depressurized before beginning work. The included gasket or seal must be properly seated to prevent leaks. Verify electrical connections to the four blade terminals are secure and correctly oriented. The quick connect outlet facilitates easy fuel line attachment. It is recommended to inspect the fuel tank and lines for contamination or damage during installation.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for fit, form, and function. The FG0105 is a standard replacement grade part designed to provide reliable operation in Chevrolet Suburban 1500 and GMC Yukon XL 1500 vehicles. This product includes a fuel level sender assembly and internal strainer to maintain fuel system integrity. Warranty coverage details should be confirmed with the point of purchase or Delphi directly.
