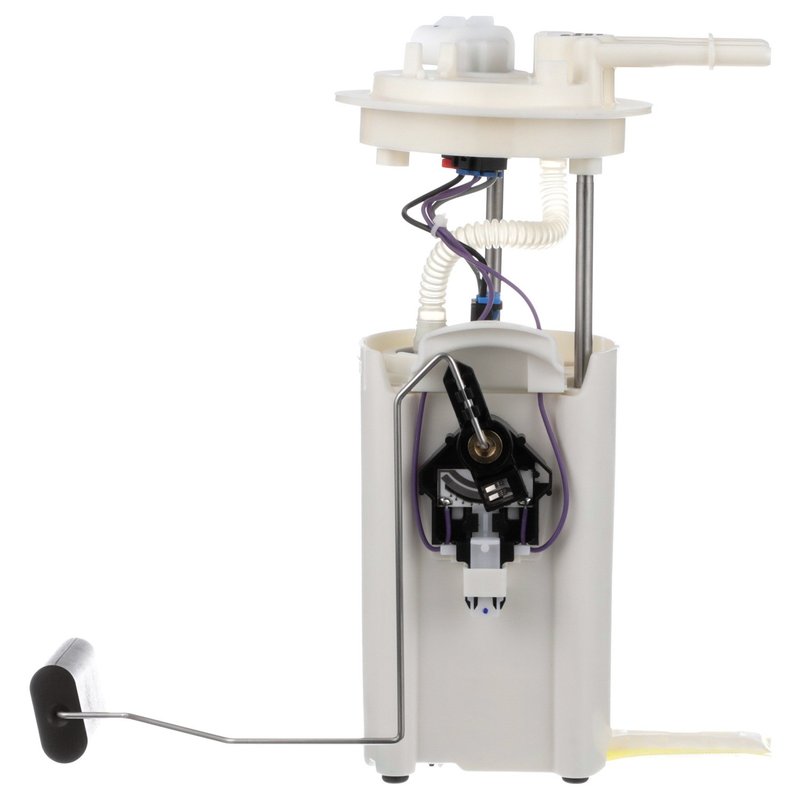

Delphi FG0106 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC

The Delphi FG0106 fuel pump module assembly is designed specifically for Chevrolet Suburban 2500 and GMC Yukon XL 2500 models. This in-tank electric fuel pump ensures consistent fuel delivery and supports optimal engine performance for gas-powered vehicles.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Chevrolet Suburban 2500 and GMC Yukon XL 2500
• 12.0 Volt operation with a maximum pressure of 109 psi
• Includes internal strainer and gasket for secure installation
• Features 4 male blade terminals and quick connect outlets (0.375 inch diameter)
• Average flow rating of 24 gallons per hour and system pressure of 62 psi

Technical Details and Features

The Delphi FG0106 fuel pump module assembly operates at 12 volts and is designed for gasoline fuel systems. It features an internal strainer inlet and a quick connect outlet with a 0.375-inch outside diameter, ensuring efficient fuel flow and filtration. The module includes a fuel level sender assembly with resistance values ranging from 40 ohms (empty) to 250 ohms (full), providing accurate fuel level readings. The assembly has four male blade terminals for electrical connections and comes with a gasket and wire harness splices for a complete installation.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the Chevrolet Suburban 2500 and GMC Yukon XL 2500 models. It is intended for use in gas-powered vehicles requiring an in-tank electric fuel pump module. The part number FG0106 ensures proper fitment and function for these specific models.

• Resolves fuel delivery issues such as engine stalling or hesitation
• Replaces faulty or worn-out fuel pump modules
• Restores accurate fuel level readings with integrated sender
• Addresses fuel pressure inconsistencies affecting engine performance
• Eliminates fuel contamination with internal strainer protection

Installation Notes and Tips

When installing the Delphi FG0106 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. The included gasket should be properly seated to prevent leaks. Use the provided wire harness splices for secure electrical connections to the four male blade terminals. Verify that the quick connect outlets are firmly attached to the fuel lines. This module is designed for in-tank installation, so handle with care to avoid damage to the internal components.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM specifications for reliable performance and durability. This standard replacement grade part includes a fuel level sender assembly and internal strainer to maintain system integrity. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship.
