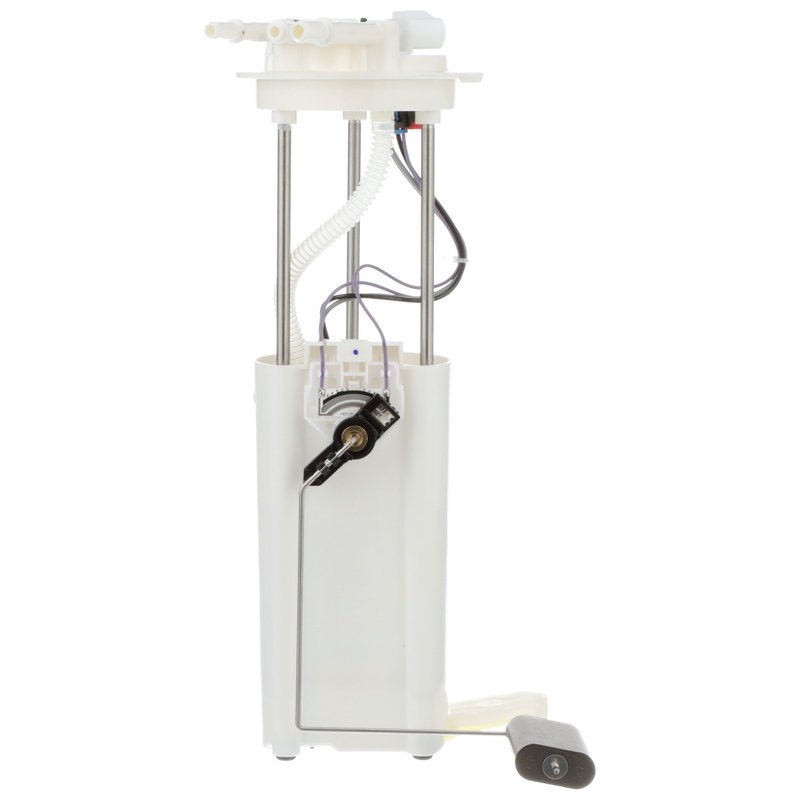

Delphi FG0108 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet and GMC Vans

The Delphi FG0108 fuel pump module assembly is engineered for dependable fuel delivery in Chevrolet Express 3500 and GMC Savana 3500 models. Designed as an in-tank electric fuel pump, it ensures consistent fuel flow and accurate fuel level readings for gas-powered vehicles.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Chevrolet Express 3500 and GMC Savana 3500
• Operates at 13.0 volts with a system pressure of 62 psi
• Includes internal strainer and gasket for secure installation
• Features quick connect outlet with 0.375 inch outside diameter
• Four male blade terminals for reliable electrical connections
• Average flow rating of 24 liters per hour and maximum pressure of 109 psi
• Includes vapor pressure sensor for enhanced fuel system monitoring

Technical Details and Specifications

The Delphi FG0108 fuel pump module assembly is designed to meet the fuel delivery requirements of gas-powered Chevrolet Express 3500 and GMC Savana 3500 vans. This in-tank electric pump operates at 13 volts and maintains a system pressure of 62 psi, with a maximum pressure rating of 109 psi. The module includes an internal strainer to prevent debris from entering the fuel system and a fuel level sender assembly with a float arm for accurate fuel gauge readings. The outlet features a quick connect type with a 0.375 inch outside diameter, and the unit is equipped with four male blade terminals to ensure secure electrical connections. The average current draw is 10 amps, supporting an average flow rating of 24 liters per hour, suitable for maintaining optimal engine performance under various driving conditions.

Applications and Common Issues Addressed

• Restores proper fuel delivery in Chevrolet Express 3500 and GMC Savana 3500 vans
• Resolves fuel pump failure symptoms such as engine stalling or hesitation
• Corrects inaccurate fuel level readings due to faulty sender assemblies
• Eliminates fuel pressure drops caused by clogged or damaged pump modules
• Prevents fuel system contamination with integrated internal strainer

Installation Notes and Tips

Installation of the Delphi FG0108 fuel pump module assembly requires removal of the fuel tank to access the in-tank pump. Ensure the gasket included with the module is properly seated to prevent fuel leaks. The quick connect outlet simplifies fuel line connections, but verify secure attachment to avoid disconnections. Electrical connections use four male blade terminals; confirm proper wiring and secure splices included in the package. It is recommended to inspect the fuel tank and lines for debris or damage during installation to maintain system integrity.

Quality Assurance and Warranty Information

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG0108 is a standard replacement grade part designed for reliable operation in Chevrolet Express 3500 and GMC Savana 3500 vehicles. This product includes a gasket and strainer to ensure proper sealing and filtration. Warranty coverage details should be confirmed at the point of purchase, as Delphi typically offers limited warranties on fuel delivery components to protect against manufacturing defects.
