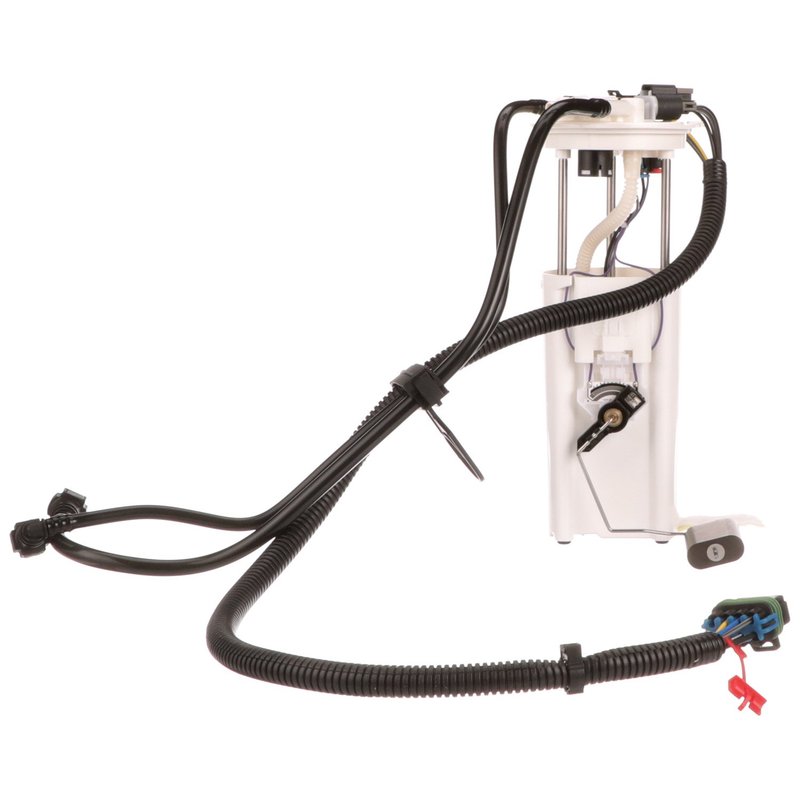

Delphi FG0115 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet, Oldsmobile, and Pontiac

The Delphi FG0115 fuel pump module assembly is designed to provide consistent fuel delivery for select Chevrolet, Oldsmobile, and Pontiac models. Engineered for in-tank installation, this electric fuel pump module supports gas fuel systems with precise flow and pressure control.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Chevrolet Cavalier, Malibu, Oldsmobile Alero, Pontiac Grand Am, Cutlass, and Sunfire
• Operates at 13.0 volts with a system pressure of 44 psi and maximum pressure of 109 psi
• Includes external strainer and gasket for secure installation
• Features female quick connect outlets with 0.375 inch outside diameter
• Four male blade terminals with 9 amp average current draw
• Standard replacement grade with vapor pressure sensor included

Technical Specifications and Features

The Delphi FG0115 fuel pump module assembly is designed for in-tank mounting and supports gasoline fuel systems. It features a 35 GPH average flow rating and operates at 13 volts, ensuring efficient fuel delivery. The module includes a fuel level sender assembly with resistance values ranging from 40 ohms (empty) to 250 ohms (full), providing accurate fuel level readings. The external strainer inlet type and included strainer help protect the pump from debris, while the female quick connect outlets (three in total) with a 0.375 inch outside diameter facilitate secure fuel line connections. The assembly comes with a gasket or seal to ensure a tight fit and prevent leaks. The four male blade terminals support reliable electrical connections, and the vapor pressure sensor enhances system monitoring.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following makes and models:

• Chevrolet Cavalier and Malibu
• Oldsmobile Alero
• Pontiac Grand Am, Cutlass, and Sunfire

It is designed to replace the original fuel pump module in these vehicles, ensuring proper fuel delivery and system performance.

Common Issues Addressed by Delphi FG0115

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pump noise or irregular operation
• Fuel leaks caused by worn seals or gaskets
• Reduced engine performance from insufficient fuel pressure

Installation Notes and Tips

When installing the Delphi FG0115 fuel pump module assembly, ensure the vehicle’s fuel system is depressurized before removal. Verify compatibility with your specific make and model, such as Chevrolet Cavalier or Pontiac Grand Am. Use the included gasket or seal to prevent leaks and confirm all electrical connections are secure with the four male blade terminals. The external strainer should be inspected and cleaned if necessary during installation. Proper torque on the fuel pump lock ring (if applicable) is recommended, although this assembly does not include a lock ring.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM standards for durability and performance. The FG0115 is a standard replacement grade part that includes a vapor pressure sensor for enhanced system diagnostics. This product comes with a manufacturer-backed warranty to ensure reliability and customer satisfaction.
