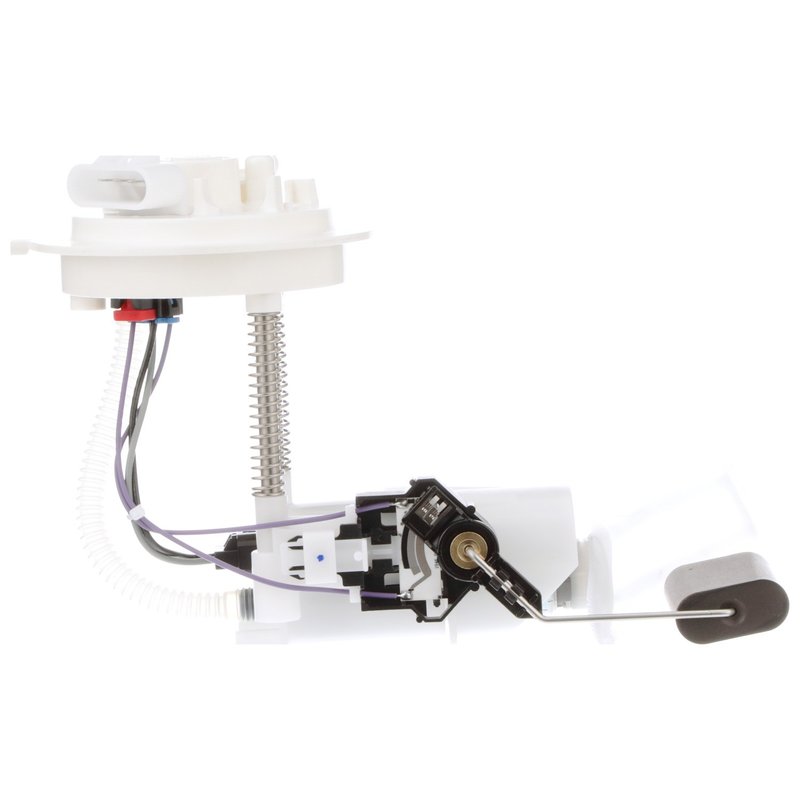

Delphi FG0119 Fuel Pump Module Assembly
Reliable Fuel Pump Module Assembly for Chevrolet and GMC
The Delphi FG0119 fuel pump module assembly is designed specifically for Chevrolet Suburban 2500 and GMC Yukon XL 2500 models. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings for your gas-powered vehicle.
- 12.0 Volt electric fuel pump with a maximum pressure of 109 psi
- Includes fuel level sender assembly with float arm for precise fuel measurement
- External strainer inlet type with included strainer for fuel filtration
- Quick connect outlet with 0.375 inch outside diameter for secure fuel line attachment
- Comes with gasket/seal and instruction sheet for proper installation
- Four male pin terminals for reliable electrical connections
- Average flow rating of 48 and average current draw of 10 amps
Technical Details and Features
The Delphi FG0119 fuel pump module assembly operates at 12 volts and is engineered for gas fuel systems. It features an external strainer inlet and a quick connect outlet, facilitating efficient fuel flow and easy installation. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings compatible with the Chevrolet Suburban 2500 and GMC Yukon XL 2500. The unit’s four male pin terminals ensure secure electrical connections, while the included gasket or seal helps maintain a tight fit within the fuel tank. Designed as a standard replacement part, this module supports system pressure of 1 psi and offers resistance values ranging from 40 ohms (empty) to 250 ohms (full), ensuring proper fuel pump operation and fuel gauge accuracy.
Compatible Vehicles and Applications
- Chevrolet Suburban 2500 (gasoline models)
- GMC Yukon XL 2500 (gasoline models)
- Replacement for original in-tank fuel pump modules in these vehicles
- Ideal for resolving fuel delivery issues and inaccurate fuel gauge readings
Common Issues Addressed by Delphi FG0119
- Intermittent or no fuel delivery causing engine performance problems
- Inaccurate fuel level readings due to faulty sender assembly
- Fuel pump noise or failure from worn internal components
- Fuel contamination issues mitigated by included external strainer
- Electrical connection problems with secure four-pin male terminals
Installation Notes and Tips
Installation of the Delphi FG0119 fuel pump module assembly requires removal of the fuel tank to access the in-tank module. Ensure the gasket or seal is properly seated to prevent fuel leaks. Use the included instruction sheet for guidance on connecting the four male pin terminals and securing the quick connect outlet. Verify compatibility with your Chevrolet Suburban 2500 or GMC Yukon XL 2500 before installation. It is recommended to inspect the fuel tank and lines for contamination or damage during replacement.
Quality Assurance and Warranty
Delphi fuel pump modules are manufactured to meet OEM specifications for reliable performance and durability. The FG0119 is a standard replacement part backed by Delphi’s quality standards. While specific warranty terms may vary, Delphi products typically include coverage against manufacturing defects. Consult product documentation or your supplier for detailed warranty information.
| Brand | Delphi |
|---|---|
| Part Number | FG0119 |
| Average Current Draw | 10 |
| Average Flow Rating | 48 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 109.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 1 |
| Outlet Type | Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 40.0 |
| Resistance Ohms Full | 250.0 |
| Strainer Included | Yes |
| System Pressure | 1 psi |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | No |
| Voltage | 12.0 |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2001 | Chevrolet | Suburban 2500 | N/A | without Evaporative Emission; Module has 1 Electrical Connector(s); For Auxiliary Fuel Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2001 | GMC | Yukon XL 2500 | N/A | without Evaporative Emission; Module has 1 Electrical Connector(s); For Auxiliary Fuel Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2000 | Chevrolet | Suburban 2500 | N/A | without Evaporative Emission; Module has 1 Electrical Connector(s); For Auxiliary Fuel Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 2000 | GMC | Yukon XL 2500 | N/A | without Evaporative Emission; Module has 1 Electrical Connector(s); For Auxiliary Fuel Tank; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
