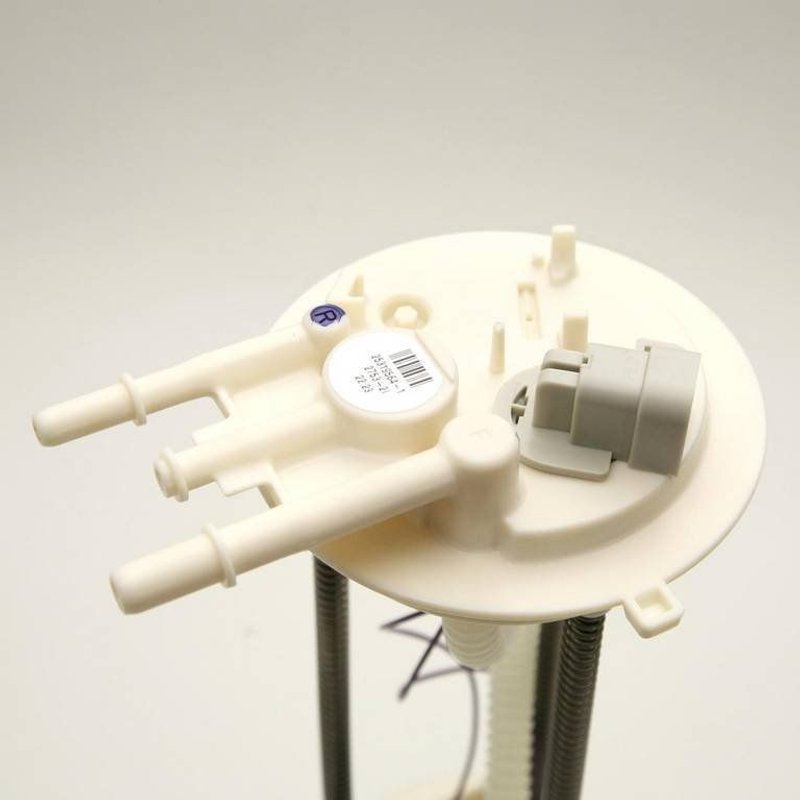

Delphi FG0125 Fuel Transfer Unit

Reliable Fuel Transfer Unit for Chevrolet and GMC Trucks

The Delphi FG0125 fuel transfer unit is designed specifically for diesel-powered Chevrolet Silverado 3500 and GMC Sierra 3500 trucks. This in-tank fuel pump assembly ensures consistent fuel delivery and accurate fuel level readings for your heavy-duty vehicle.

• Compatible with Chevrolet Silverado 3500 and GMC Sierra 3500 diesel models
• In-tank fuel transfer unit with internal strainer and fuel level sender assembly
• Outlet outside diameter of 0.375 inches with quick connect outlet type
• Includes gasket and seal for secure installation
• Four male pin terminals for reliable electrical connection
• Standard replacement grade for dependable performance

Detailed Product Features and Specifications

The Delphi FG0125 fuel transfer unit is engineered for diesel fuel systems, featuring an internal strainer inlet type that helps prevent contaminants from entering the fuel system. It includes a fuel level sender assembly with resistance values ranging from 40 ohms (empty) to 250 ohms (full), providing accurate fuel gauge readings. The unit has two quick connect outlets with an outside diameter of 0.375 inches, facilitating easy and secure fuel line connections. The four male pin terminals ensure a stable electrical interface without the need for a regulator, as this unit does not include one. A gasket and seal are included to maintain a tight fit and prevent leaks during installation.

Applications and Common Issues Addressed

• Restores proper fuel delivery in diesel Chevrolet Silverado 3500 and GMC Sierra 3500 trucks
• Resolves inaccurate fuel gauge readings caused by faulty sender assemblies
• Eliminates fuel contamination issues with the internal strainer design
• Prevents fuel leaks with included gasket and seal components
• Replaces worn or damaged in-tank fuel transfer units to maintain engine performance

Installation Notes and Tips

When installing the Delphi FG0125 fuel transfer unit, ensure the gasket and seal are properly seated to avoid fuel leaks. The unit’s quick connect outlets simplify fuel line attachment, but verify secure connections to prevent disconnections during operation. The four male pin terminals require compatible connectors; check wiring harness compatibility before installation. This unit is designed for in-tank installation, so follow vehicle-specific service manual instructions for safe removal and replacement of the fuel pump assembly in Chevrolet Silverado 3500 and GMC Sierra 3500 diesel trucks.

Quality Assurance and Warranty Information

Delphi manufactures the FG0125 fuel transfer unit to meet standard replacement grade specifications, ensuring reliable performance and durability. The product includes a fuel transfer unit with float arm, seal, and instruction sheet for proper installation. While specific warranty details may vary, Delphi products typically come with a limited warranty covering defects in materials and workmanship. Consult the product documentation or Delphi for exact warranty terms.
