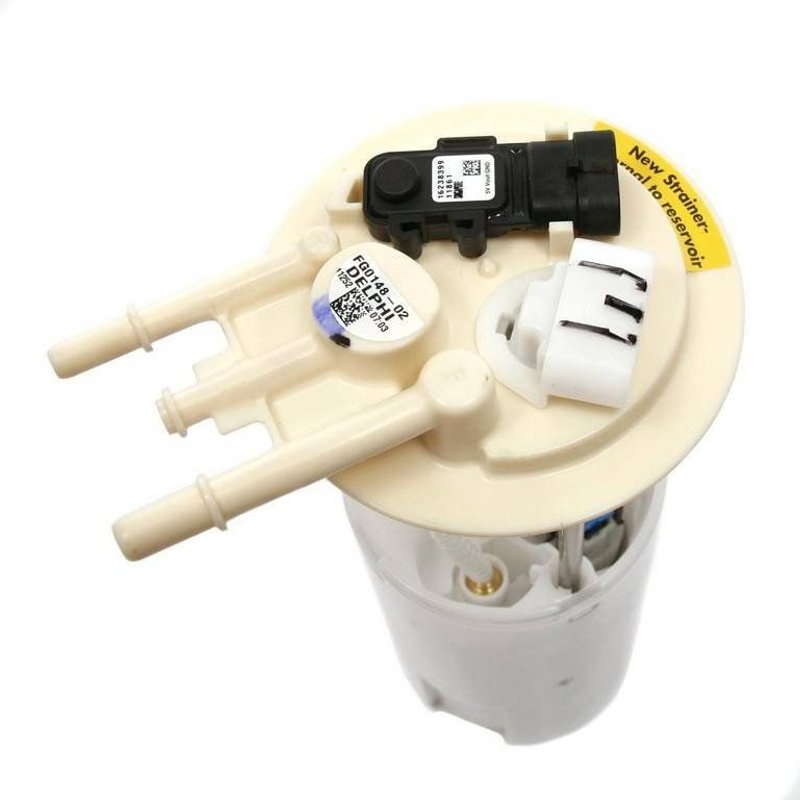

Delphi FG0148 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Oldsmobile and Pontiac

The Delphi FG0148 fuel pump module assembly is designed specifically for select Oldsmobile and Pontiac models, including the Montana, Silhouette, and Trans Sport. This in-tank electric fuel pump ensures consistent fuel delivery and accurate fuel level readings for your vehicle.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with gasoline fuel systems for Oldsmobile Montana, Pontiac Silhouette, and Trans Sport
• Includes internal strainer and gasket for secure installation
• Operates at 13.0 volts with a system pressure of 52 psi and maximum pressure of 109 psi
• Features quick connect outlet with 0.375 inch outside diameter and blade-type male terminals (4 terminals)
• Average flow rating of 23 and average current draw of 7 amps
• Includes vapor pressure sensor for enhanced fuel system monitoring

Technical Details and Specifications

The Delphi FG0148 fuel pump module assembly is engineered as a standard replacement part for in-tank fuel delivery systems. It operates on 13 volts and maintains a system pressure of 52 psi, with a maximum pressure rating of 109 psi. The pump features an internal strainer inlet and a quick connect outlet with two outlets measuring 0.375 inches in diameter. The assembly includes a fuel level sender assembly with resistance values ranging from 40 ohms (empty) to 250 ohms (full), providing accurate fuel level readings. The module is equipped with four male blade terminals and comes with a gasket and strainer to ensure a proper seal and filtration. Additionally, the vapor pressure sensor supports fuel system diagnostics and emissions control.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following vehicles:

• Oldsmobile Montana
• Pontiac Silhouette
• Pontiac Trans Sport

It is designed for gasoline fuel systems and is intended to replace the original in-tank fuel pump module assembly, restoring proper fuel delivery and fuel level sensing functions.

Common Issues Addressed by Delphi FG0148

• Intermittent or no fuel delivery causing engine stalling or failure to start
• Inaccurate fuel gauge readings due to faulty fuel level sender
• Fuel pump noise or reduced flow affecting engine performance
• Fuel leaks or pressure loss from worn seals or connectors
• Emission system faults related to vapor pressure sensor malfunction

Installation Notes and Tips

• Ensure the vehicle’s battery is disconnected before installation to prevent electrical hazards
• Verify compatibility with your specific Oldsmobile or Pontiac model and year
• Use the included gasket and strainer to maintain proper sealing and filtration
• Handle the fuel pump module carefully to avoid damage to terminals and connectors
• Check all electrical connections and secure the wiring harness splices during installation

Quality Assurance and Warranty

The Delphi FG0148 fuel pump module assembly is manufactured to meet OEM standards for fit, form, and function. It undergoes rigorous testing to ensure reliable operation under normal driving conditions. This part is offered as a standard replacement and includes a warranty period consistent with Delphi’s quality assurance policies, providing confidence in durability and performance.
