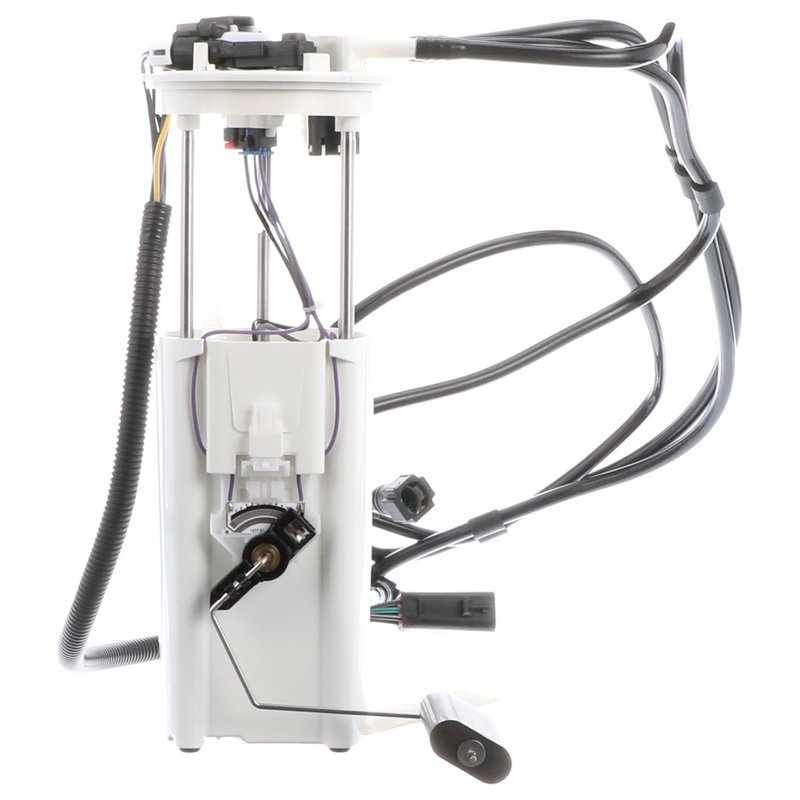

Delphi FG0150 Fuel Pump Module Assembly
| Brand | Delphi FG0150 |
|---|---|
| Average Current Draw | 7 |
| Average Flow Rating | 18 |
| Fuel Level Sender Assembly Included | Yes |
| Fuel Type | Gas |
| Gasket Or Seal Included | Yes |
| In Tank or External | In Tank |
| Inlet Type | Strainer |
| Internal Or External Strainer | External |
| Item Grade | Standard Replacement |
| Lock Ring Included | No |
| Maximum Pressure | 109.0 |
| Outlet Outside Diameter | 0.375 |
| Outlet Quantity | 3 |
| Outlet Type | Female Quick Connect |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
| Pump Type | Electric |
| Regulator Included | No |
| Resistance Ohms Empty | 40.0 |
| Resistance Ohms Full | 250.0 |
| Strainer Included | Yes |
| System Pressure | 45 psi |
| Terminal Gender | Male |
| Terminal Quantity | 6 |
| Terminal Type | Pin |
| Vapor Pressure Sensor | Yes |
| Voltage | 13.0 |
| Fits | Chevrolet · 9 vehicles |
Standard replacement. Direct-fit fuel pump module assembly for straightforward service.
OE heritage. Built with 100 years of OE experience and supplier knowledge.
Complete assembly. Includes a seal, strainer, float arm, and instruction sheet.
Cross-references Airtex Fuel Pumps E3941M, Bosch 67347 and Carter P74753M for the same application. See all 26.
Delphi FG0150 Fuel Pump Module Assembly
Delphi FG0150 is an in-tank electric fuel pump module assembly for gasoline applications. It combines the fuel pump module, fuel level sender assembly, gasket or seal, strainer, and float arm to support consistent fuel delivery and accurate tank level reporting.
Key Features
- In-tank electric fuel pump module assembly for gas fuel systems
- Maximum pressure rating of 109.0 and system pressure of 45 psi
- Average flow rating of 18 with an average current draw of 7
- Fuel level sender assembly included with resistance range of 40.0 ohms empty to 250.0 ohms full
- Female quick connect outlet type with 3 outlets and 0.375 outlet outside diameter
- Gasket or seal included; strainer included; vapor pressure sensor included
- Standard replacement grade with 6-pin male terminal design
Detailed Description
Built from Delphi OE heritage and application knowledge, FG0150 is a direct-fit fuel pump module assembly for select Chevrolet Lumina and Chevrolet Monte Carlo models. It is engineered for in-tank installation and includes the fuel pump module assembly with float arm, seal, and instruction sheet. Delphi FG0150 is a practical replacement choice when restoring fuel delivery performance and fuel level signal accuracy in 1997-1999 Chevrolet Lumina and 1997-1999 Chevrolet Monte Carlo applications, including 1999 models without Refuel Vapor Recovery.
This part cross-references Bosch 67347 and Carter P74753M for the same application.
What It Helps Fix
- Hard starting caused by weak or inconsistent fuel pressure
- Engine stalling from fuel delivery interruption
- Incorrect or erratic fuel gauge readings from a worn sender
- Fuel starvation under load from a failing in-tank pump
- Fuel system noise or poor pump operation related to module wear
Installation Notes and Tips
Compatible With 1997-1999 Chevrolet Lumina, N/A, and 1997-1999 Chevrolet Monte Carlo, N/A. For 1999 Chevrolet Lumina and 1999 Chevrolet Monte Carlo applications without Refuel Vapor Recovery, clean the fuel tank before installation to reduce the risk of premature seal or pump failure. Delphi also recommends cleaning the tank before installing a replacement pump; using fuel tank cleaning kit FC01 is recommended. Verify connector style, outlet configuration, and sender specifications before installation.
Quality Assurance
Delphi draws on 100 years of OE experience and supplier knowledge used by major automakers. FG0150 reflects that OE-based engineering approach in a standard replacement fuel pump module assembly for select Chevrolet Lumina and Chevrolet Monte Carlo applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1999 | Chevrolet | Lumina | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1999 | Chevrolet | Lumina | — | N/A | without Refuel Vapor Recovery; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1999 | Chevrolet | Monte Carlo | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1999 | Chevrolet | Monte Carlo | — | N/A | without Refuel Vapor Recovery; Fuel tank contamination is the leading cause of premature fuel pump failure. To reduce risk of contaminating the replacement pump, it’s recommended to clean the fuel tank before installing a new pump.; Use of fuel tank cleaning kit FC01 is recommended. |
| 1998 | Chevrolet | Lumina | LTZ | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1998 | Chevrolet | Lumina | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1998 | Chevrolet | Monte Carlo | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1997 | Chevrolet | Lumina | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
| 1997 | Chevrolet | Monte Carlo | — | N/A | Clean fuel tank before installing fuel pump to prevent future seal problems. |
