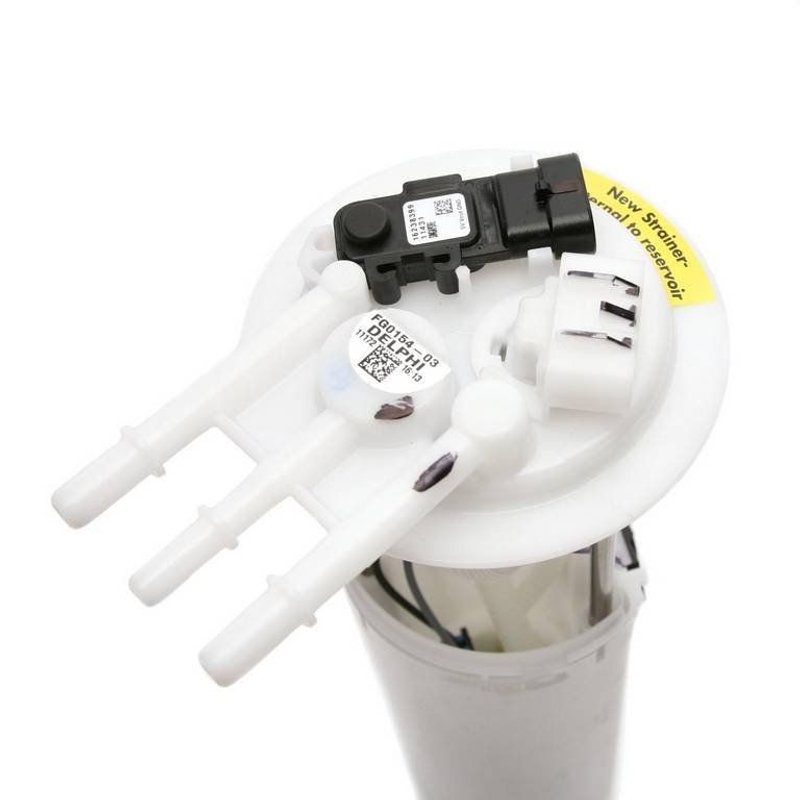

Delphi FG0154 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Chevrolet Camaro and Pontiac Firebird

The Delphi FG0154 fuel pump module assembly is designed to provide consistent fuel delivery for Chevrolet Camaro and Pontiac Firebird models. Engineered for gas-powered vehicles, this in-tank electric fuel pump ensures optimal performance and fuel system reliability.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Chevrolet Camaro and Pontiac Firebird gas engines
• Includes regulator, internal strainer, gasket, and wiring harness
• Operates at 13.0 volts with a maximum pressure of 109 psi
• Features quick connect outlets with 0.375 inch outside diameter
• Four male blade terminals for secure electrical connections
• Average flow rating of 29 and system pressure of 58 psi
• Includes vapor pressure sensor for accurate fuel system monitoring

Technical Details and Features

The Delphi FG0154 fuel pump module assembly is an electric, in-tank pump designed specifically for gas-fueled Chevrolet Camaro and Pontiac Firebird vehicles. It includes a fuel level sender assembly with a float arm, allowing precise fuel level readings. The module features an internal strainer at the inlet to prevent debris from entering the fuel system, and a quick connect outlet type with three outlets, each having an outside diameter of 0.375 inches. The pump operates at 13 volts and maintains a system pressure of 58 psi, with a maximum pressure rating of 109 psi. The four male blade terminals ensure reliable electrical connections, and the included gasket and seal help maintain a secure installation. Additionally, the vapor pressure sensor supports accurate fuel vapor monitoring, contributing to emissions control.

Applications and Common Issues Addressed

• Restores proper fuel delivery in Chevrolet Camaro and Pontiac Firebird gas engines
• Resolves fuel level sender malfunctions for accurate dashboard readings
• Eliminates fuel pressure inconsistencies that cause engine hesitation or stalling
• Prevents fuel contamination with the internal strainer
• Replaces faulty or worn fuel pump modules to maintain engine performance

Installation Notes and Tips

Installation of the Delphi FG0154 fuel pump module assembly requires removal of the fuel tank. Ensure the vehicle is depressurized before beginning work. The included gasket and seal should be replaced during installation to prevent leaks. Verify all four blade terminals are securely connected to avoid electrical issues. The quick connect outlets simplify fuel line attachment, but confirm proper seating to prevent fuel leaks. It is recommended to inspect the fuel tank for debris before installing the new module to prolong pump life.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet or exceed OEM specifications for Chevrolet Camaro and Pontiac Firebird applications. This standard replacement grade part undergoes rigorous testing to ensure durability and reliable operation under normal driving conditions. The FG0154 includes a fuel level sender assembly and vapor pressure sensor to maintain system accuracy. Warranty coverage details should be confirmed with the distributor or installer.
