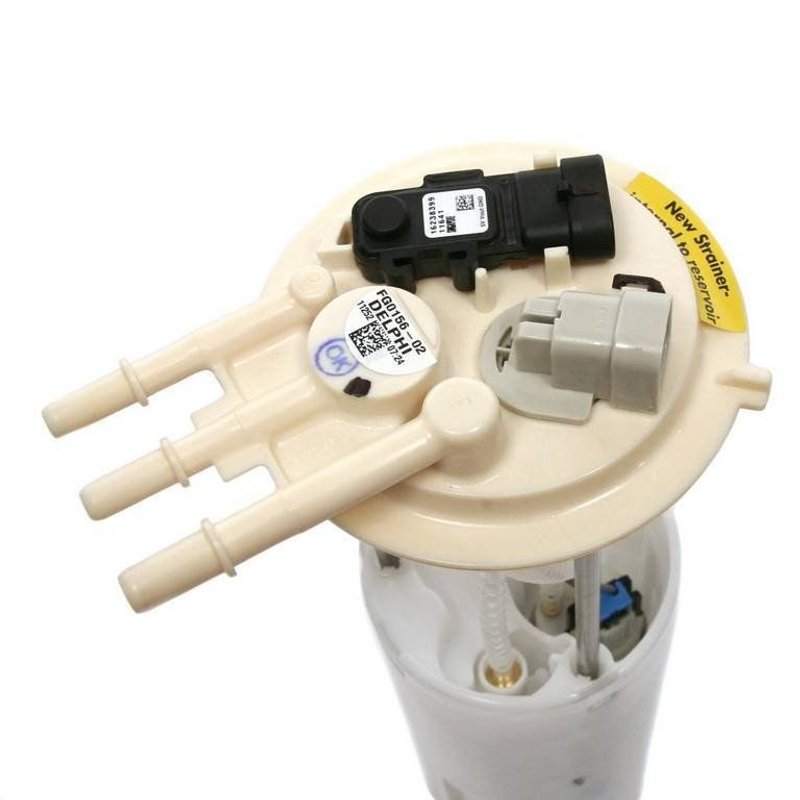

Delphi FG0156 Fuel Pump Module Assembly

Reliable Fuel Pump Module Assembly for Buick, Oldsmobile, Pontiac

The Delphi FG0156 fuel pump module assembly is designed to provide consistent fuel delivery for select Buick, Oldsmobile, and Pontiac models. Engineered for gas-powered vehicles, this in-tank electric fuel pump module ensures efficient operation and compatibility with your vehicle's fuel system.

• Electric fuel pump module assembly with integrated fuel level sender
• Compatible with Buick Century, Oldsmobile Intrigue, Pontiac Grand Prix, and Regal
• Operates at 13.0 volts with a system pressure of 52 psi
• Includes internal strainer and gasket for secure installation
• Features quick connect outlet with 0.375 inch outside diameter
• Four male pin terminals for reliable electrical connection
• Average flow rating of 17 gallons per hour and average current draw of 7 amps
• Includes vapor pressure sensor for accurate fuel system monitoring

Technical Details and Specifications

The Delphi FG0156 fuel pump module assembly is an electric pump designed for in-tank installation. It supports gasoline fuel types and operates at a voltage of 13.0 volts. The module includes a fuel level sender assembly with a float arm, providing accurate fuel level readings. The outlet features a quick connect type with an outside diameter of 0.375 inches and three outlets for efficient fuel delivery. The internal strainer helps prevent debris from entering the fuel system, enhancing longevity and performance. This module has a maximum pressure rating of 109 psi and a system pressure of 52 psi, suitable for maintaining proper fuel flow in compatible vehicles.

Compatible Vehicles and Applications

This fuel pump module assembly is compatible with the following makes and models:

• Buick Century
• Oldsmobile Intrigue
• Pontiac Grand Prix
• Pontiac Regal

It is designed as a standard replacement part for these vehicles, ensuring proper fit and function when replacing the original fuel pump module.

Common Issues Addressed by This Fuel Pump Module

• Intermittent or complete fuel delivery failure
• Inaccurate fuel level readings due to faulty sender assembly
• Fuel pump noise or irregular operation
• Fuel system pressure drops affecting engine performance
• Clogged fuel strainer causing restricted fuel flow

Installation Notes and Tips

When installing the Delphi FG0156 fuel pump module assembly, ensure the vehicle's fuel tank is properly drained and depressurized. The included gasket and internal strainer should be inspected and replaced as necessary to prevent leaks and contamination. Verify the four-pin male terminal connections are secure and free of corrosion. Use appropriate tools to handle the quick connect outlets and avoid damaging the fuel lines. Follow vehicle-specific service manual instructions for safe removal and installation procedures.

Quality Assurance and Warranty

Delphi fuel pump modules are manufactured to meet OEM standards for fit, form, and function. The FG0156 part number is a standard replacement grade component designed for reliable operation. This product includes a fuel level sender assembly and vapor pressure sensor to maintain system accuracy. Warranty coverage details should be confirmed with the parts provider, but Delphi typically offers limited warranties covering defects in materials and workmanship.
